Silicone Paper Laminating Machine

Silicone Paper Laminating Machine photo-1
Silicone Paper Laminating Machine photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Chemical, Textiles
Packaging Type:
Case
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Apparel, Chemical, Textiles
Packaging Type Case
Packaging Material Plastic, Wood
Automatic Grade Semi-Automatic
Driven Type Electric
Voltage Customizable
Power 80.0 KW
Place of Origin Jiangsu, China
Brand Name EOMAE
Model Number LS-1600
Dimension(L*W*H) 18600 x 2300 x 2600 mm
Weight 6000 KGS
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas





LS-1600 Silicone Paper Laminating Machine





Applications:

  • Used for coating self-adhesive onto the surface of Silicone paper, Release paper, Kraft paper, label ..., then laminate with nonwoven, foam, sponge, leather, PE, PU, EVA ...
  • Widely used in label, advertising, decoration, shoe-making, package and other industries.





Key Features:

  • Professionally designed gluing unit, is applicable to solvent based glue, water-based glue ...
  • Energy-saving baking oven, with good heat-insulation performance, can minimize heat loss;
  • Heating oven is equipped with smart temperature control system, to ensure a constant oven temperature, very small temperature difference. Automatically stops heating when the temperature reaches the preset level. User may adjust the heating oven temperature according to different materials to achieve best laminating effect;
  • Running speed is controlled through frequency synchronization, synchronic speed adjusting, very easy and convenient to operate;
  • Both unwinding and winding have magnetic constant tension control system;
  • Automatic hydraulic centering unit ensures edge alignment in laminating;
  • Equipped with pneumatic expanding shaft for easy operation.





Options:

  • Machine working width
  • Heating Oven Length
  • PLC system
  • Servo motor
  • Machine color





Main Technical Data



  • LS-1600 Silicone Paper Laminating Machine



Model:   LS-1600
Working Width:   1400 mm
Roller Width:   1600 mm
Running Speed:   0~20 m/min
Heating Oven Length:   12000 mm
Heating Mode:   Electric
Power:   80.0 KW
Net Weight:   6000 KGS
Dimension:   18600 x 2300 x 2600 mm

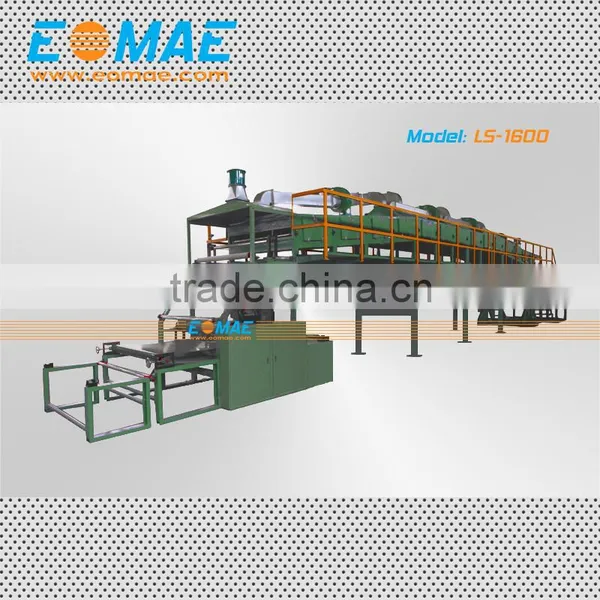

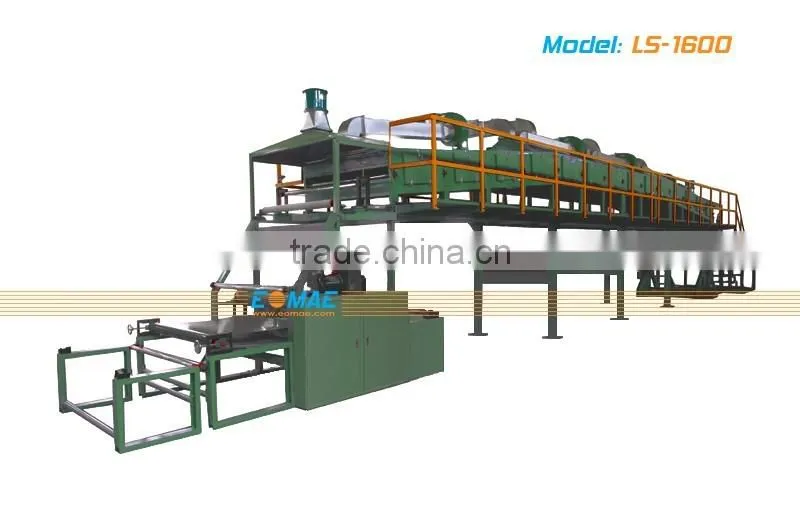

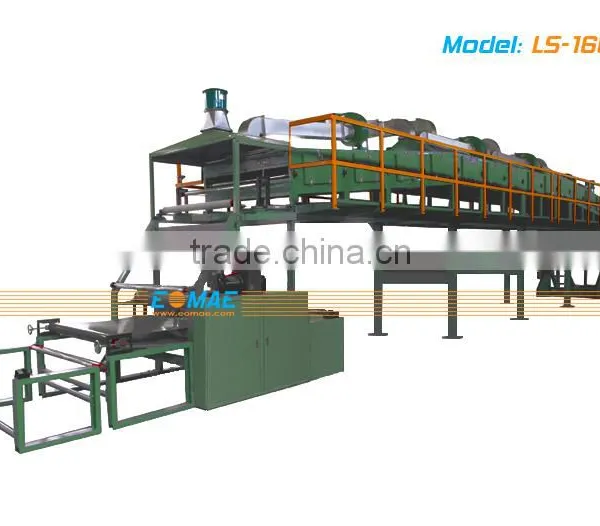

Machine Photo



  • LS-1600 Silicone Paper Laminating Machine



Silicone Paper Laminating Machine





Silicone Paper Laminating Machine



Silicone Paper Laminating Machine
