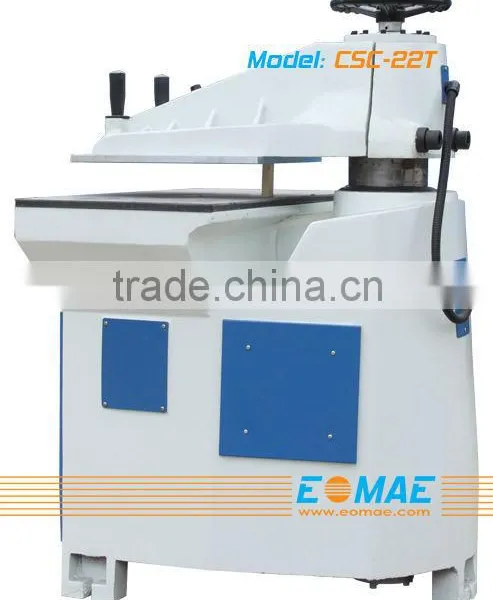

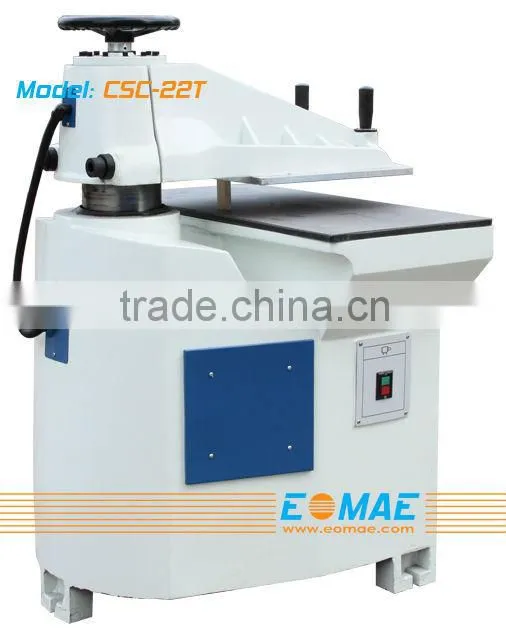

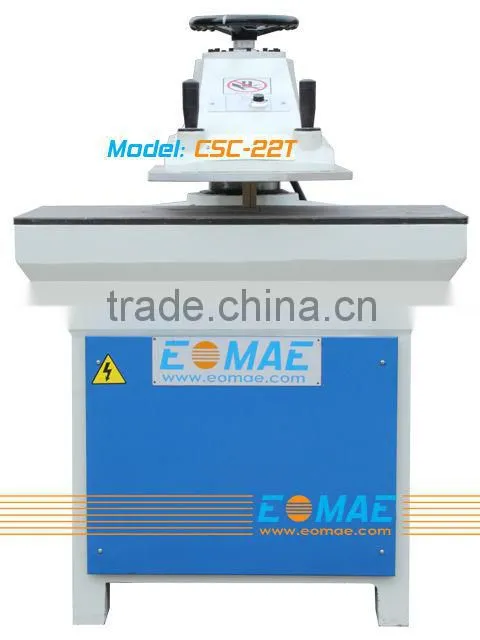

Hydraulic Swing Arm Cutting Press CSC-22T

Name: Hydraulic Swing Arm Cutting Press CSC-22T
Brand: EOMAE
SKU: 131674471

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

EOMAE

Model Number:

CSC-22T

Yancheng Xinzhan Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name EOMAE

Model Number CSC-22T

After-sales Service Provided Engineers available to service machinery overseas

Specifications

* Hydraulic Swing Arm Cutting Press
* Durable machine structure
* Easy to operate
* Reasonable price
* CE Certified

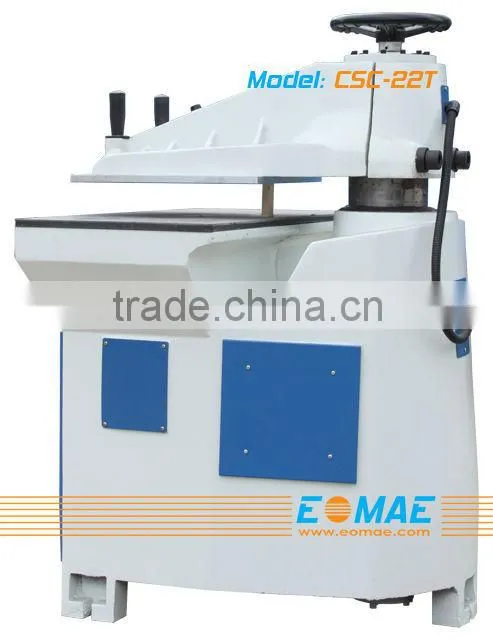

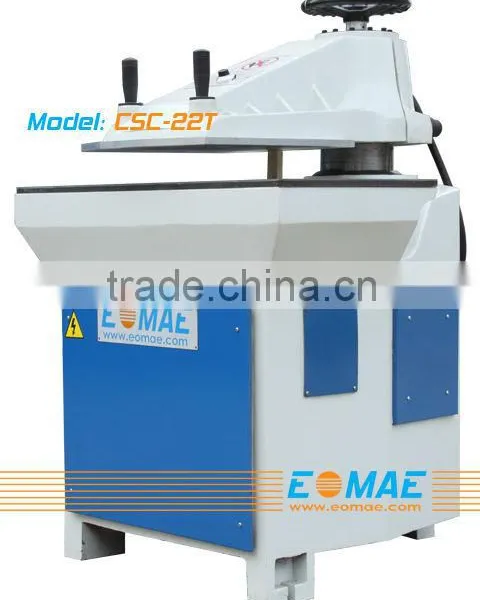

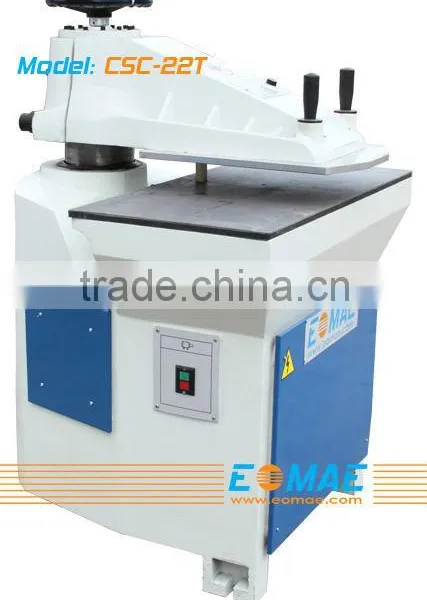

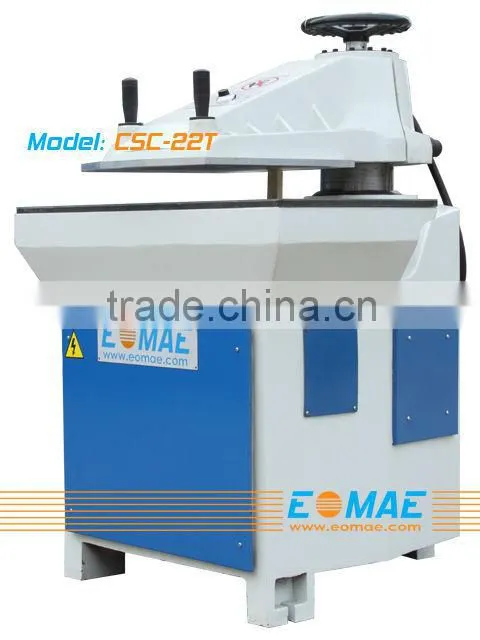

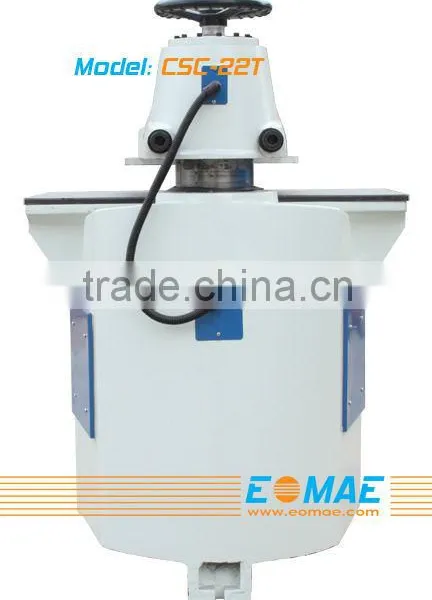

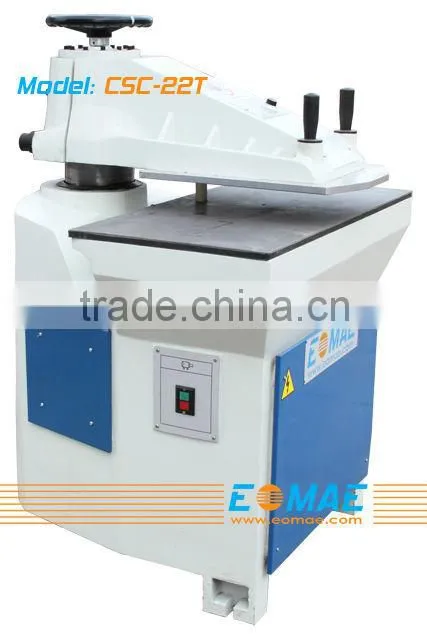

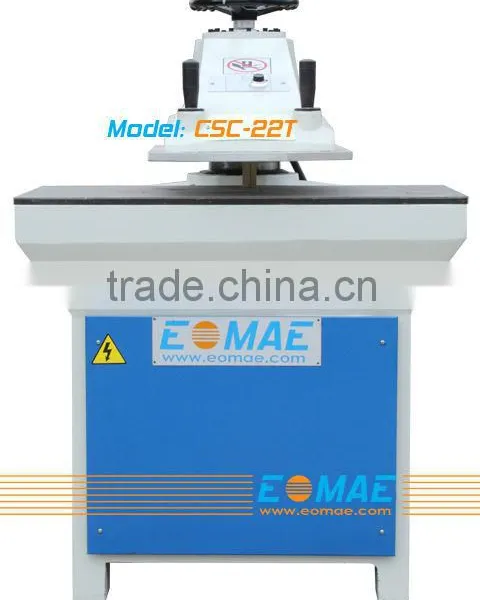

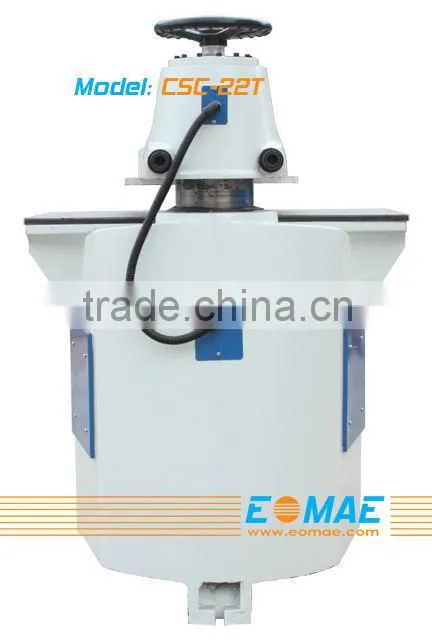

CSC-22T Hydraulic Swing Arm Cutting Press

Application

Suitable for cutting shoe sole, bag, glove, gasket, plastics, rubber, leather, synthetic leather and leather products, fibers, textiles, paper products, as well as other similar products...
Widely used in plastic & rubber, handbag, paper, and other industries...

Key Features

Solid cast iron body structure, strong and durable;
Hydraulic drive mode, all hydraulic system components are of superb quality;
Automatic oil lubricating system reduces machine's wear and tear;
Double direction oil way design provides stability and reliability;
Machine's beam can be rotated flexibly and freely, easy to operate;
Low maintenance;
Low noise;
Two-handed operation design and emergency stop device can ensure safe operation;
Compact body design helps to reduce waste and save energy;
Lower limit position is controlled by electronic delay circuit;
Cutting head height is controlled by the handwheel, cutting stroke is adjusted by the timer, so it's very easy to achieve optimal cutting position;
Setting is convenient and accurate;
The inertia of the handwheel is stored to save energy;
Qualified parts and superb workmanship ensure the working stability and service life.

Options

Main Technical Data

Model:	CSC-22T
Cutting Force:	22 Ton
Platen Size:	450 x 550 mm
Bed Size:	500 x 1000 mm
Cutting Stroke:	0-75 mm
Distance between Platen to Bed:	65-150 mm
Motor Power:	1.5 KW
Hydraulic Oil:	60 Liter of 46 anti-wear hydraulic oil
Net Weight:	1000 KGS
Dimension:	1100 x 1100 x 1400 mm
