Hydraulic Swing Arm Cutting Machine CSC-25T
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Manual
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Swing Arm Shoe Cutting Machine CSW-12TNegotiableMOQ: 1 Set -
Swing Arm Bag Cutting Machine CSW-14TNegotiableMOQ: 1 Set
-
Swing Arm Label Cutting Machine CSW-16TNegotiableMOQ: 1 Set
-
Swing Arm Glove Cutting Machine CSC-20TNegotiableMOQ: 1 Set
-
Hydraulic Swing Arm Cutting Press CSC-22TNegotiableMOQ: 1 Set
Condition
New
Automatic Grade
Manual
Place of Origin
Jiangsu, China
Brand Name
EOMAE
Model Number
CSC-25T
Type
Cutting Machine
Voltage
Customizable
Weight
1000 KGS
Certification
CE, CE
Warranty
18 Months
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
* Hydraulic Swing Arm Cutting Machine* Easy to operate
* Convenient, Reliable, Safe
* Reasonable Price
* CE Certified
CSC-25T Hydraulic Swing Arm Cutting Machine
Application
- Suitable for cutting shoe sole, bag, glove, gasket, plastics, rubber, leather, synthetic leather and leather products, fibers, textiles, paper products, as well as other similar products...
- Widely used in plastic & rubber, handbag, paper, and other industries...
Key Features
- Solid cast iron body structure, strong and durable;
- Hydraulic drive mode, all hydraulic system components are of superb quality;
- Automatic oil lubricating system reduces machine's wear and tear;
- Double direction oil way design provides stability and reliability;
- Machine's beam can be rotated flexibly and freely, easy to operate;
- Low maintenance;
- Low noise;
- Two-handed operation design and emergency stop device can ensure safe operation;
- Compact body design helps to reduce waste and save energy;
- Lower limit position is controlled by electronic delay circuit;
- Cutting head height is controlled by the handwheel, cutting stroke is adjusted by the timer, so it's very easy to achieve optimal cutting position;
- Setting is convenient and accurate;
- The inertia of the handwheel is stored to save energy;
- Qualified parts and superb workmanship ensure the working stability and service life.
Options
- Counting function
- Machine color
- Platen size can be customized
Main Technical Data
| Model: | CSC-25T |
| Cutting Force: | 25 Ton |
| Platen Size: | 450 x 550 mm |
| Bed Size: | 500 x 1000 mm |
| Cutting Stroke: | 0-75 mm |
| Distance between Platen to Bed: | 65-150 mm |
| Motor Power: | 1.5 KW |
| Hydraulic Oil: | 60 Liter of 46 anti-wear hydraulic oil |
| Net Weight: | 1000 KGS |
| Dimension: | 1100 x 1100 x 1400 mm |

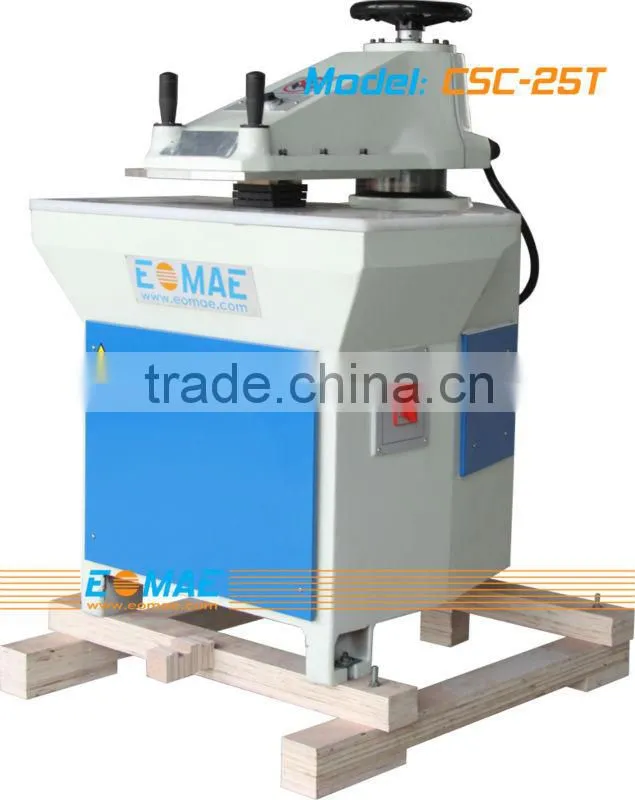

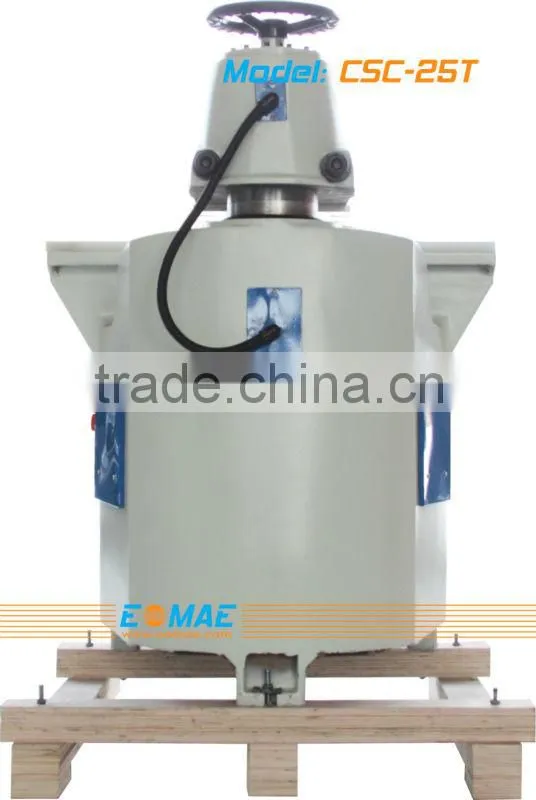

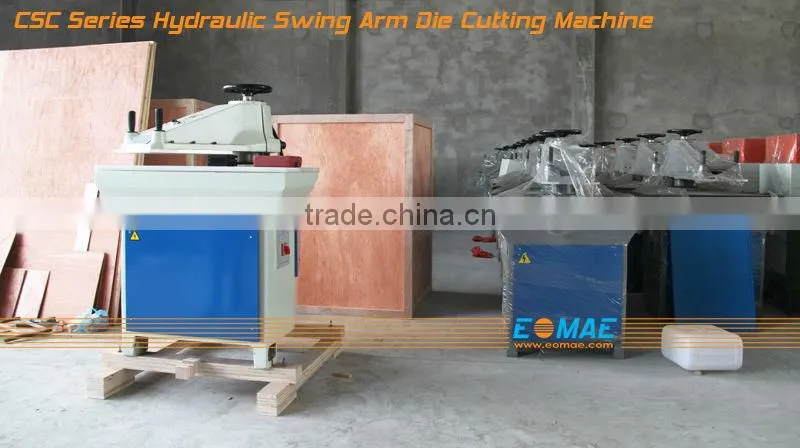

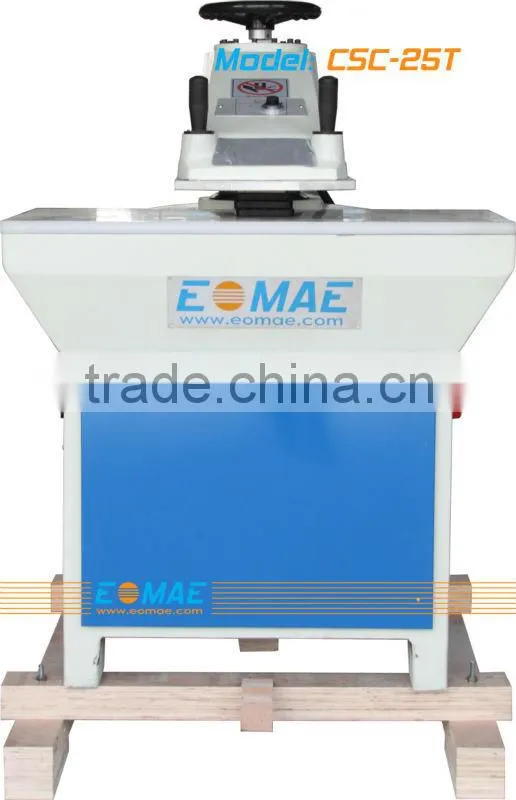

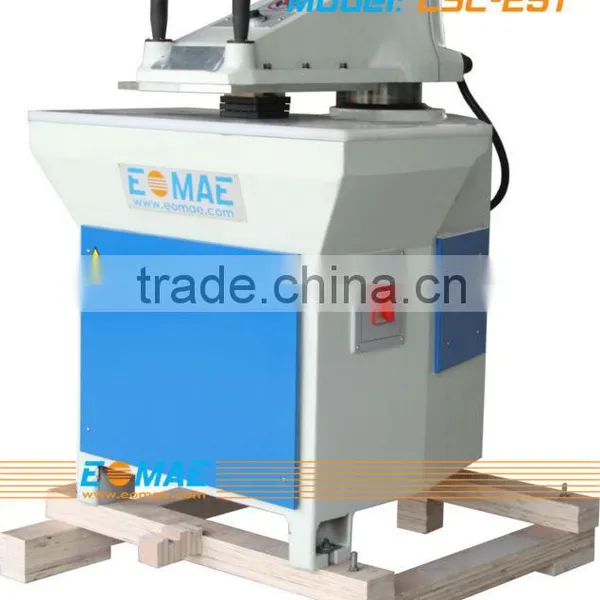

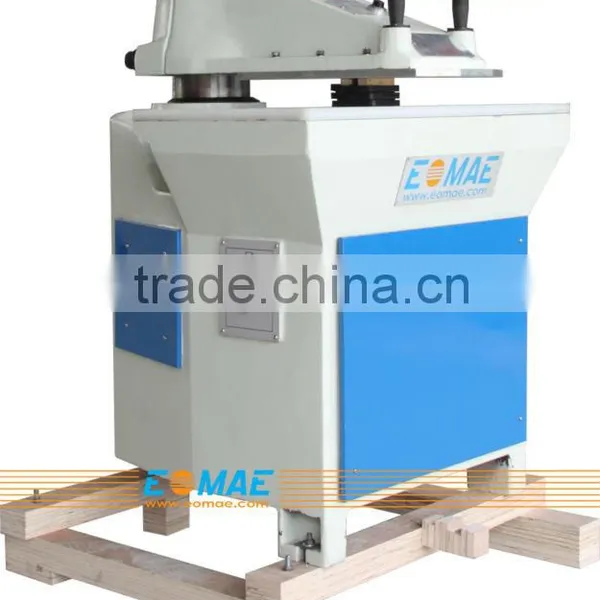

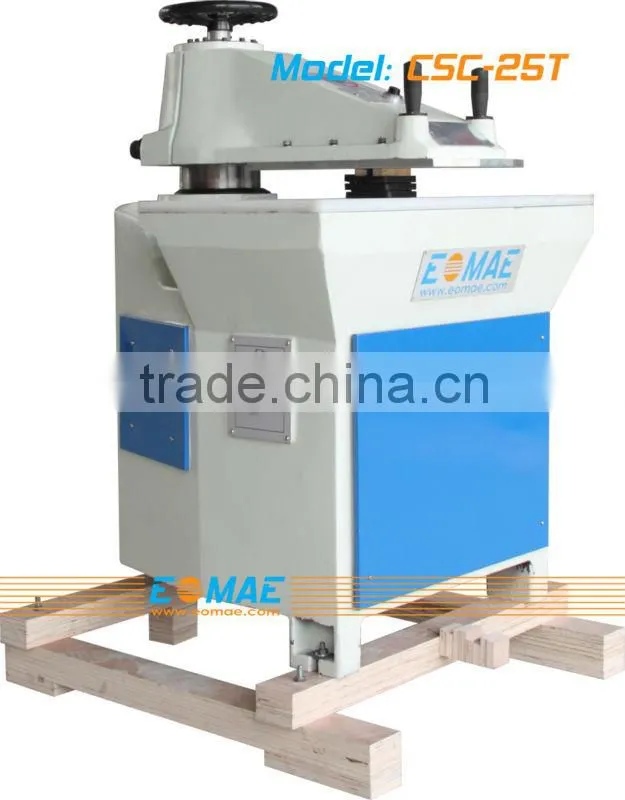

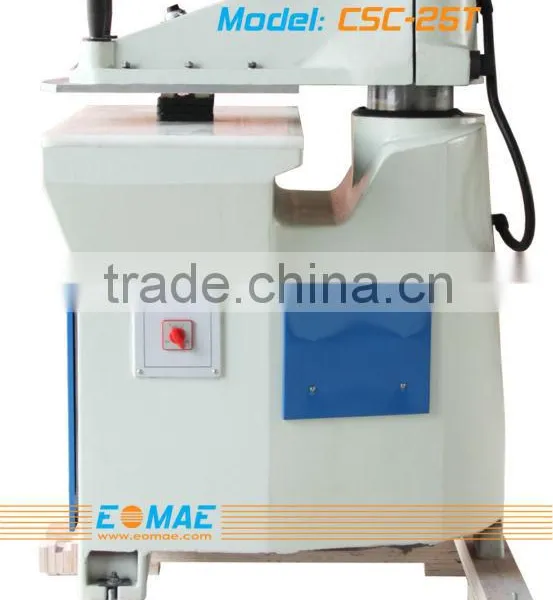

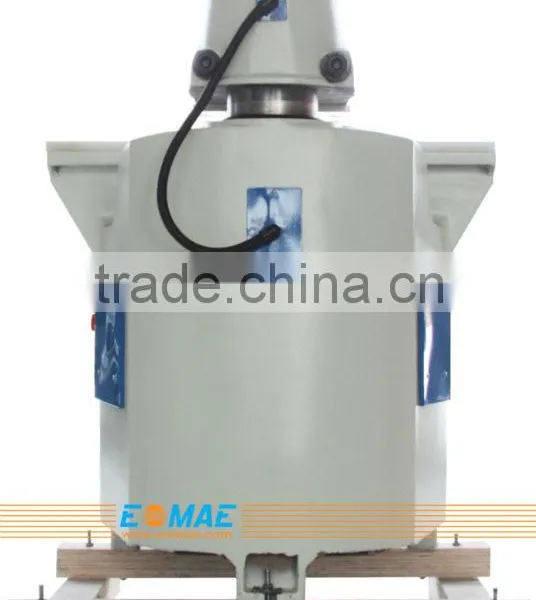

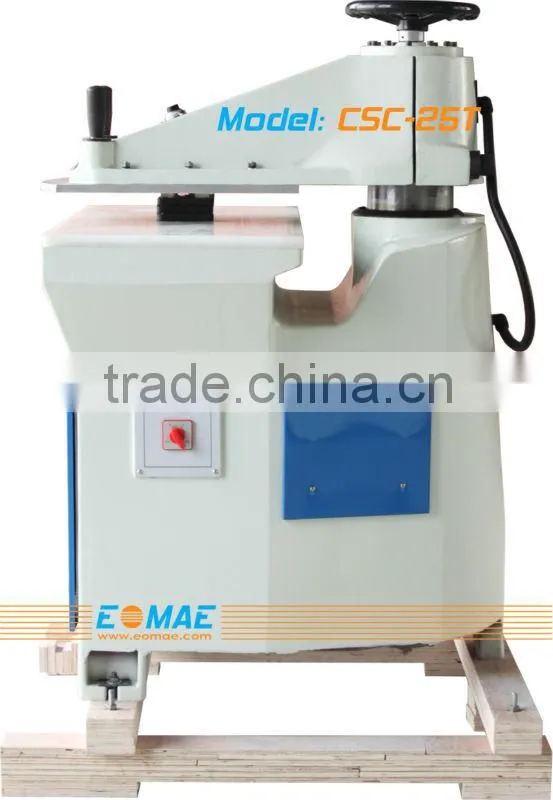

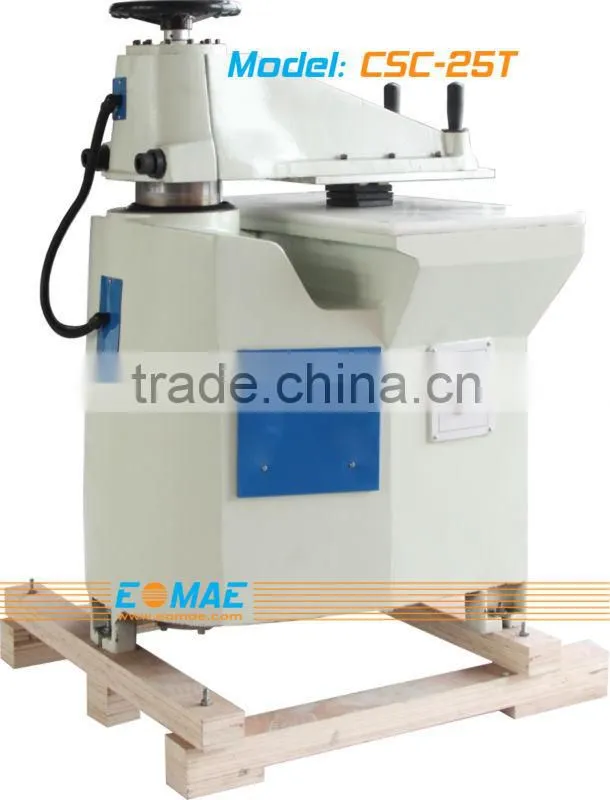

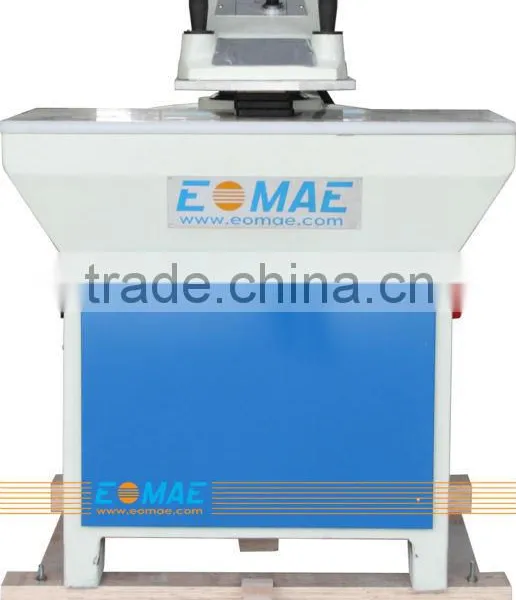

Machine Photos
