Hydraulic Die Cutting Press

Name: Hydraulic Die Cutting Press
Brand: EOMAE
SKU: 131674193

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Hydraulic Cutting Machine

Application:

Textiles, Plastic, Rubber, Leather, Foam ...

Yancheng Xinzhan Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Hydraulic Cutting Machine

Application Textiles, Plastic, Rubber, Leather, Foam ...

Place of Origin Jiangsu, China

Brand Name EOMAE

Model Number C4-40T

Rated Power 3.0 KW

Dimensions 2300 x 710 x 1500 mm

Voltage Customizable

Power(W) 3.0 KW

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

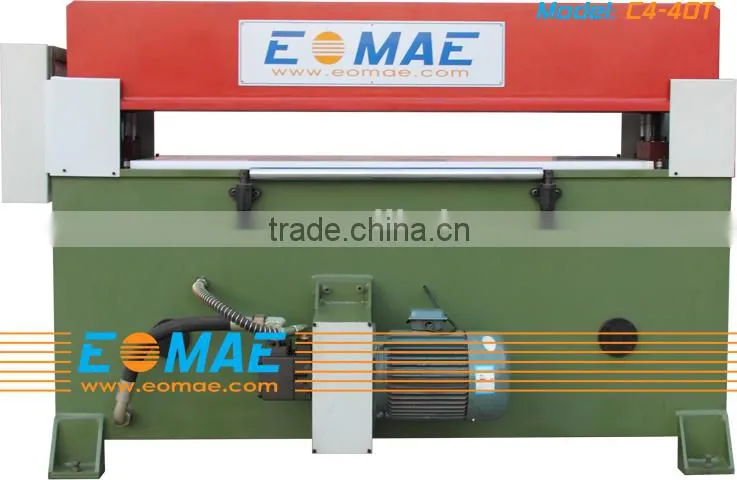

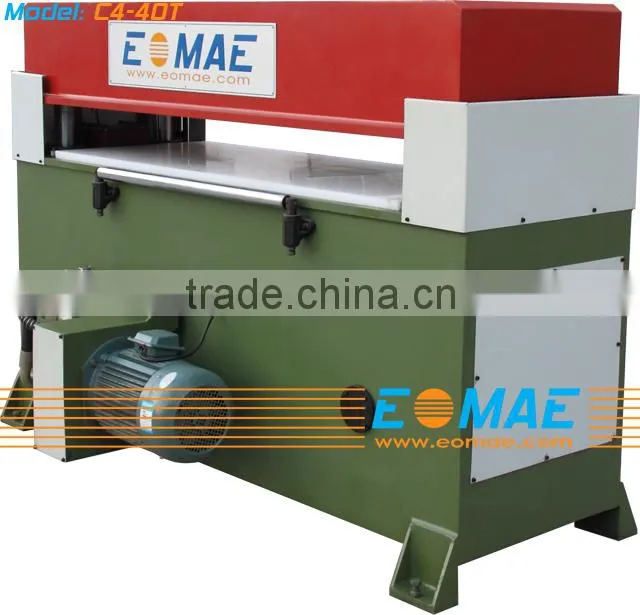

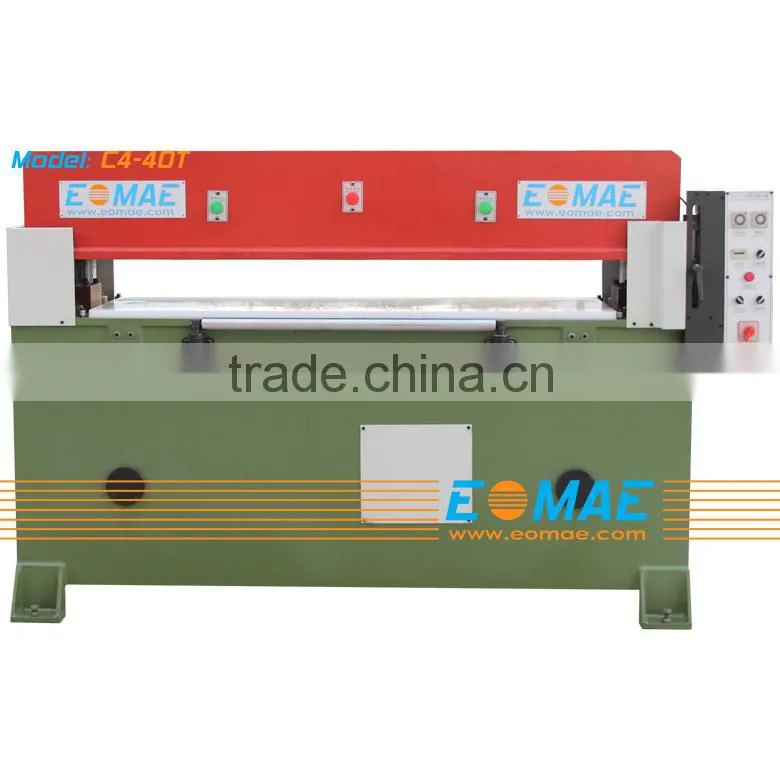

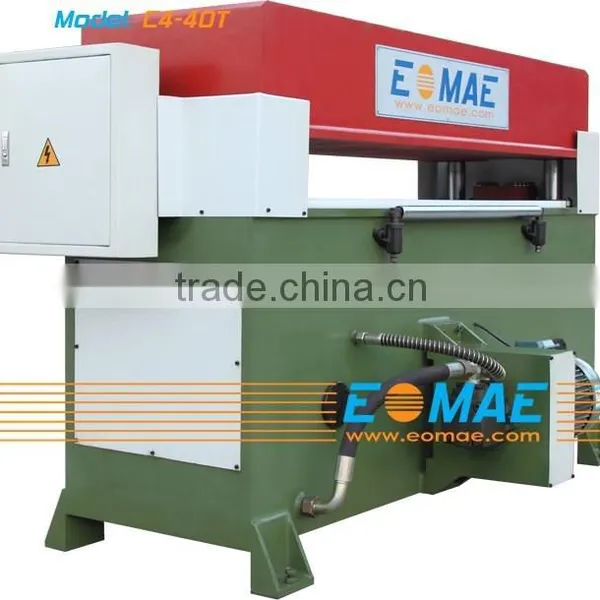

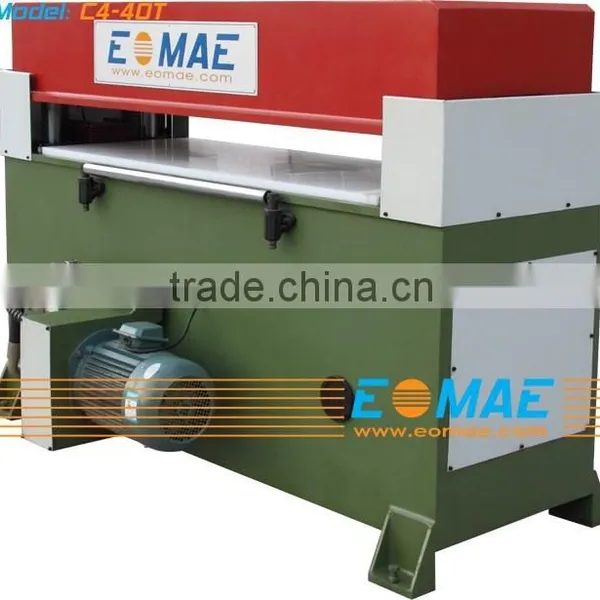

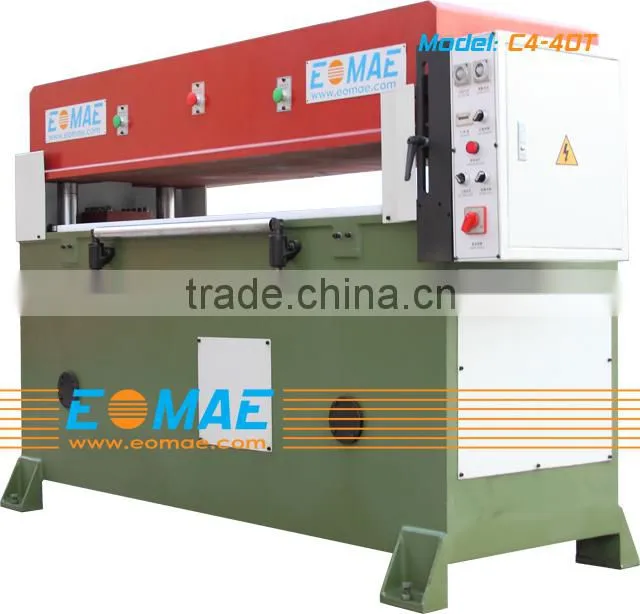

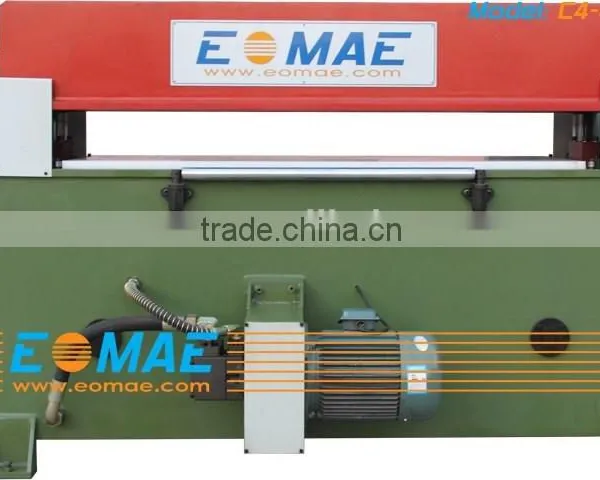

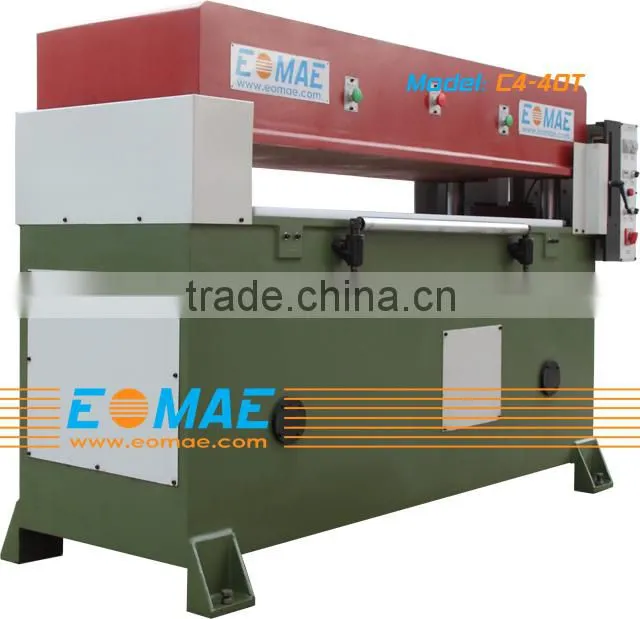

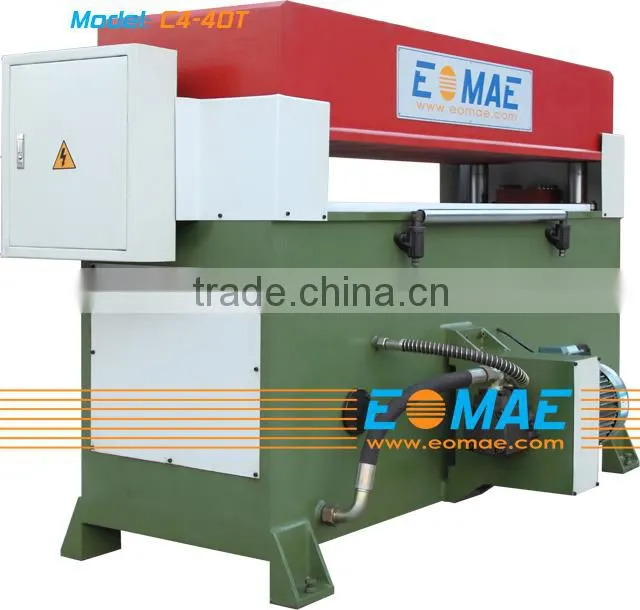

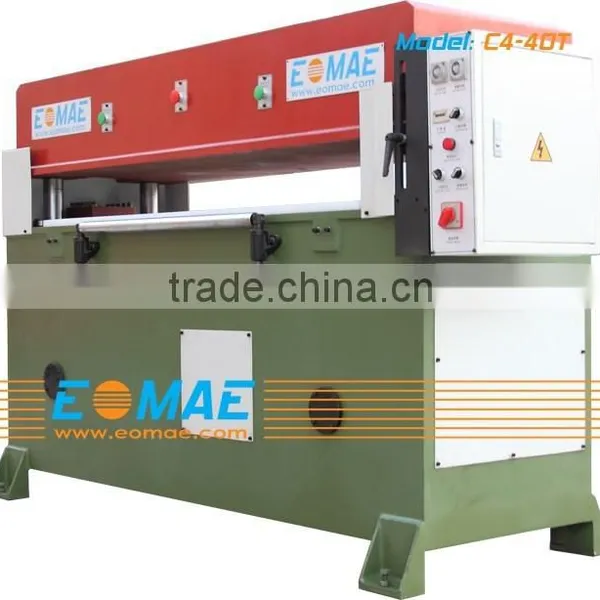

C4-40T Hydraulic Die Cutting Press

Application

Mainly used for die cutting leather and leather products, plastic, rubber, sponge, foam, EVA, PVC, cardboard, paper products, fabric, home textiles, packaging materials, non woven, carpet, car cushion, felt, synthetic materials, and other non-metallic materials in various industries;
Extremely suitable for cutting multiple layers of material at one time;
This model has a wide range of applications, and it's a recommended Model for general cutting processing.

Key Features

Machine body is made of high quality steel, very strong and durable;
Benefiting from the integrated design of mechanics, electrics and hydraulics, it's very easy to operate, no complicated operating training is required (anyway, the operators shall know operating rules and process, and illegal operating is strictly prohibited);
Hydraulic drive mode, all hydraulic system components are of superb quality;
Precise 4 column machine structure, and double connecting bar make the machine run extremely balanced and stable, keep the same cutting depth in the whole cutting area;
Automatic lubrication system, the machine is lubricated automatically during operation. This design can reduce abrasion;
Double oil cylinders, and automatic oiling during operation;
Two-handed operation design and emergency stop device can ensure safe operation;
Easy and convenient to install cutting mold, so is the machine's setting and adjusting;
Low maintenance cost;
Low running noise;
Advanced technology, qualified parts and superb workmanship will ensure the machine's running stability and service life.

Options

Main Technical Data

Model:	C4-40T
Cutting Force:	40 Ton
Platen Size:	1600 x 610 mm
Bed Size:	1600 x 610mm
Cutting Stroke:	0-145 mm
Distance between Platen to Bed:	45-190 mm
Motor:	3.0 KW / 6 Pole
Hydraulic Oil:	110 Liters of 46 anti-wear hydraulic oil
Net Weight:	2400 KGS
Dimension:	2300 x 710 x 1500 mm
