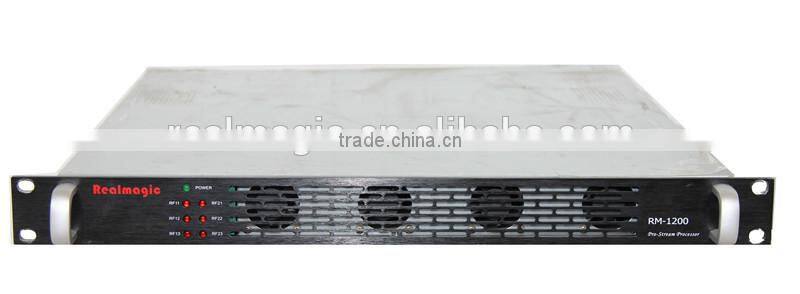

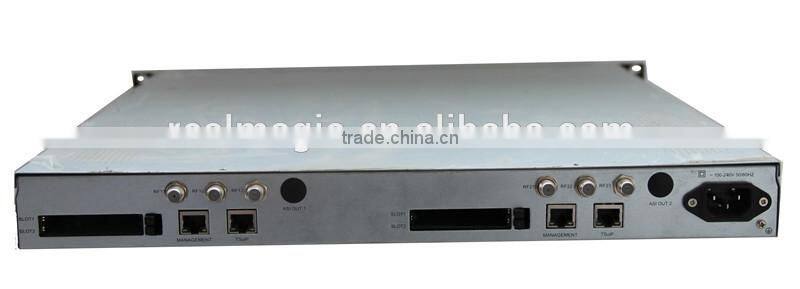

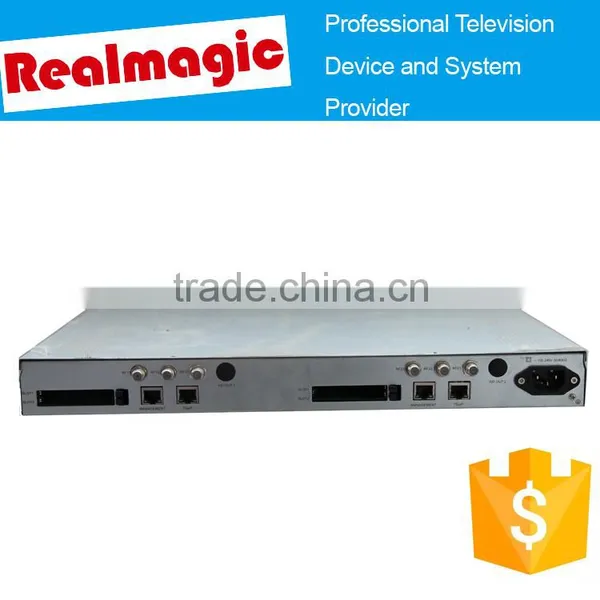

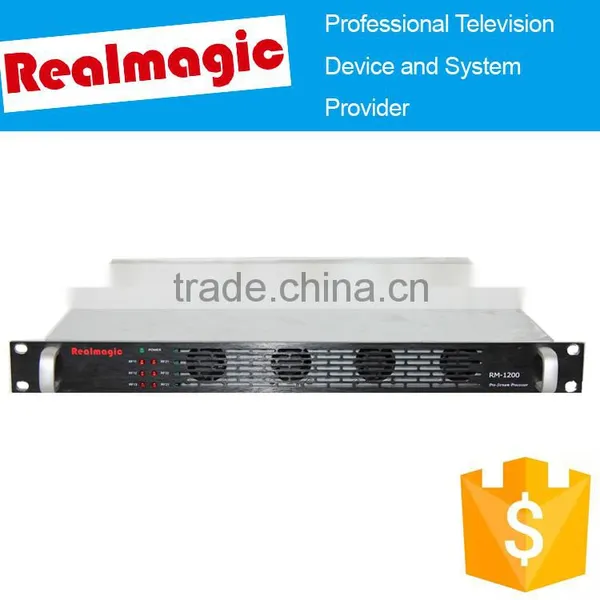

4 Tunners DVB-S2 Satellite Receiver Decoder

The RM1200 is a professional multi-transpond receiver. It has up to six tuner modules in 1RU. The RM1200 suppors TS demultiplexing and pushing the input programs to different destinations through Giga Ethernet port. The RM1200 series support DVB common interface and up to 4 slots. It is applicable in DVB headend system and IPTV headend system.

Key Features

• Support 4 or 6 tuners, including DVB-S, DVB-S2, DVB-C
• DVB-TS over IP output: UDP/RTP optional, unicast or multicast selectable up to 8 channels per tuner.
• DVB common interface, Supports multiple CAS, such as: Sumavision, CTI, Novel-supertv, DVNchina, Conax, CryptoWorks, Irdeto, Mediaguard, Nagravision, SECA, NDS and Viaccess
• NIT auto search
• PMT auto-update
• Auto-alarm for error conditions
• Software upgrade via Ethernet

RM1204 Spec



			Parameter
DVB-C input		Standard	EN300 429
		Connector	4×F(F), 75
		Demodulation	DVB-C
		Frequency Range	51-858 MHz
		Symbol Rate	1-7MS/s(PAL) 1-6MS/s(NTSC)
		Max Bit Rate	72Mb/s
		FEC	16QAM/32QAM/64QAM/128QAM/256QAM
DVB-S2 Input	Standard		EN300 421, EN302 307
	Connector		4×F(F), 75
	Demodulation		DVB-S, QPSK, DVB-S2, QPSK, 8PSK, 16APSK, 32APSK
	Frequency Range		950 - 2150 MHz
	Tuner Input Symbol Rate		1-45 MS/s (DVB-S) 1-45 MS/s (DVB-S2 QPSK, 8PSK) 1-36MS/s (DVB-S2 16APSK) 1-28MS/s (DVB-S2 32APSK)
	Max Bit Rate		130 Mb/s
	FEC		DVB-S: 1/2, 2/3, 3/4, 5/6, 7/8 DVB-S2 QPSK: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 DVB-S2 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 DVB-S2 16ASK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 DVB-S2 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
	DVB-S2 FEC Frame		Normal Frame
	LNB Power		N/A
100/1000 BaseT IP Output	Connector		2×RJ45, 100/1000 BaseT
	Protocol		UDP/RTP
	IP Format		Unicast/Multicast
	Max bit rate		700 Mb/s
	IP channels		8 Channels Per Tuner
CA			DVB Common Interface
			4×PCMCIA
Management			Realmagic SNMS
			Remote SNMP Control
			Web based interface
Physical	Size		(W×D×H) 482×252×44mm
	Power Supply		110/240VAC
	Weight		3.5Kg
	Operating Temperature		0°C - +50°C
	Humidity		5 - 95%



 Warranty: 1 year

Service: 7*24 hours

'
