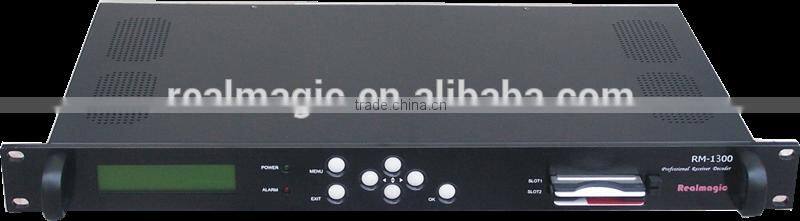

RM1300 Multi-Track Audio IRD

RM1300 series is Multi-Track Audio Receiver and Decoder. It can support DVB-S2,ASI,IP input and ASI and TS over IP output. It can output 4-channel audio, or 8-channel XRL output and 4-channel AES/EBU output.

Key Features

• Audio Decoding Format: MPEG 1 Layer I/MPEG 1 Layer II, AAC-LC/AAC-LD/AAC-HE
• Support DVB-S2, ASI and IP input
• 1 ASI input, 2 ASI output
• Support DVB-TS over IP output
• Support UDP and RTP protocol
• IP support unicast and multicast
• 8-channel unicast or multicast
• Support multiple CAS, such as: Sumavision, CTI, Novel-supertv, DVNchina, Conax, CryptoWorks, Irdeto,Mediaguard, Nagravision, SECA, NDS and Viaccess
• DVB common interface(2 slots)
• NIT Auto search
• Support appointed PID and Audio output changeable
• PMT Auto-upgrade
• AES/EBU Digital Audio output
• LCD & Keyboard on the front panel
• Auto-alarm for error conditions
• Web-based and SNMP management, software upgrade via Ethernet
• SNMP Protocol software supports real time status monitor, alarm message, log storage

Input Interface

• 1 DVB-S2 RF input, 1 RF loop-out
• 1 DVB-ASI input
• IP(optional)

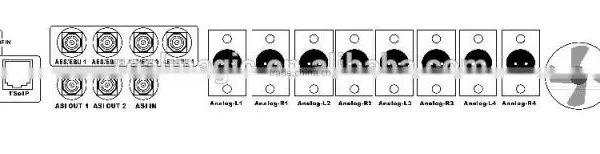

Output Interface

• Two DVB-ASI output
• One 10/100M TS Over IP output
• Digital AES/EBU audio output
• Analog balance audio

Audio Decoding Format

• MPEG-1 Layer1/2
• AAC-LC
• AAC-LD
• AAC-HE

Physical and Power

• Size: 1RU
• Weight:3.5Kg
• Power: 100-240 VAC Auto-ranging
• Power Consumption: Max 30W

RM1300 Spec.

RM1300 is the Multi-Track Audio Receiver and Decoder. It supports up to 4 audio decoding.

 Warranty: 1 year

Technical support 7*24hours
