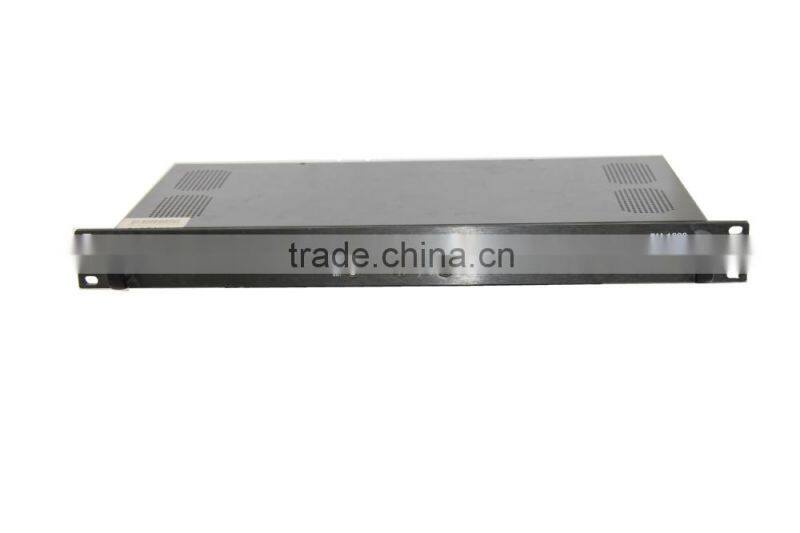

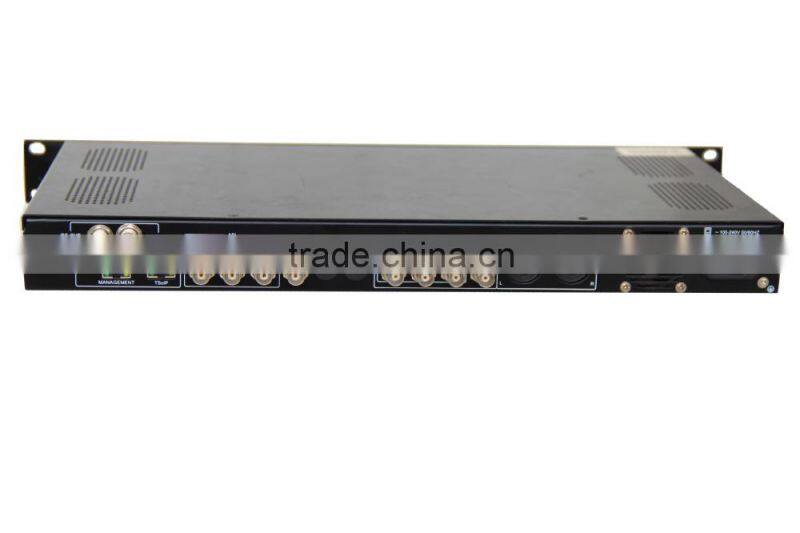

hd Satellite Receiver

RM100x series IRDs are broadcast-quality receiver, descrambler, decoder and interface converter that provides MPEG-2/H.264 SD/HD decoding, advanced transport stream processing, cutting-edge IP processing technologies and variety of front-ends, including DVB-S, DVB-S2, DVB-T,DVB-C,ASI, DS3,IP,etc.

Key Features

• Variety of Head-end options, including DVB-S, DVB-S2, DVB-C, DVB-T,ASI,DS3,IP
• Support 3-channel stereo decoding
• Decoding: MPEG-2 4:2:0 SD/HD, H.264(MPEG-4 part 10) main and high profile level 4.1
• DVB-TS over IP output: UDP/RTP optional, unicast or multicast selectable
• DVB common interface (2 slots), Supports multiple CAS, such as: Sumavision, CTI, Novel-supertv, DVNchina, Conax, CryptoWorks, Irdeto, Mediaguard, Nagravision, SECA, NDS and Viaccess
• ASI transport stream input and output
• ASI input: 1 channel
• ASI output: 2 channels
• DS3 input
• Video output: HD-SDI, Y/Pb/Pr, CVBS
• Audio output: SDI embedded, AES/EBU, balanced stereo
• NIT auto search
• PMT auto-update
• Auto-alarm for error conditions
• LCD & keyboard on the front panel, Web-based and SNMP management
• Software upgrade via Ethernet
• Service and PID dropping, PCR adjusting and NULL stuffing (VBR-CBR) over ASI and IP output
• SNMP Protocol software supports real time status monitor, alarm message, log storage

Input Interface

• DVB-S/C/T/S2
• One DVB-ASI input
• DS3(optional)
• IP

Output Interface

• Two DVB-ASI outputs
• One 10/100M TS Over IP output
• HD-SDI(with embedded audio)output
• CVBS output
• YPbPr output
• Digital AES/EBU audio output
• Analog balance audio

Physical and Power

• Size:1RU
• Weight:3.5Kg
• Power:100-240 VAC Auto-ranging
• Power Consumption: Max 30W
