outdoor advertising large LED Screen Billboard P6 P8 P10 P12 P16 outdoor indoor led large screen display large led display large led display digital thermometer
Outdoor LED display features:
1) High-precision optical design of LED, each pixel is integrated by RGB LED chips.
2) Perfect color mixing efficiency: rational design on reflector and chi arrangement makes RGB colors mixed and
condensed sufficiently and creates no granular sensation.
3) Good performance in flatness, uniformity, consistency and clarity.
4) The raw material of all of the outdoor products including LED chips, mask, glue, and steel cabinets have the
ability of enduring high temperature and high humidity, and being anti-UV, waterproof, anti-corrosion and anti-rust.
5) Every production process is well controlled and all of the electronic components are covered by 2mm
Tr-Guard Lacquer to ensure no oxidation, no rusty and no moisture.
6) All of the cabinets are tested by flush, shower and soaking, to ensure the waterproof grade of front side to
be IP65.Lacquer will be used for special requirements.
7) Adopting constant current driver chip, which has a small encapsulation, high brightness, wide viewing angle,
anti-static performance and other outstanding characteristics.
Best selling Pixel Pitch: P10, P12, P16 and P20.
LED display structure:
LED specification:
Item |
Luminous Intensity |
Viewing Angle |
Wavelength |
Test Condition |
Origin |
Remark |
Red LED |
300~500mcd |
H/V: 120º/60º |
620~630nm |
25°C,20mA |
Epistar |
DIP346 |
Green LED |
1800~2200mcd |
H/V: 120º/60º |
620~630nm |
25°C,20mA |
Silan |
|
Blue LED |
250~500mcd |
H/V: 120º/60º |
465~475nm |
25°C,20mA |
Silan |
LED modules:
Cabinet:
| LED display specification: | ||||
| Outdoor DIP Full Color LED Display | ||||
| Pixel Pitch | 10mm | 12mm | 16mm | 20mm |
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Pixel Density | 10000dots/m2 | 6944dots/m2 | 3906dots/m2 | 2500dots/m2 |
| Module Resolution | 16*16 Pixels | 16*16 Pixels | 16*8 Pixels | 16*8 Pixels |
| Module Size | 160*160mm | 192*192mm | 256*128mm | 320*160mm |
| Cabinet Resolution | 96*96 Pixels | 80*80 Pixels | 64*64 Pixels | 48*48 Pixels |
| Cabinet Size | 960*960mm | 960*960mm | 1024*1024mm | 960*960mm |
| Driving Mode | Constant Current | Constant Current | Constant Current | Constant Current |
| Scanning Mode | 1/4 Scan | 1/4 Scan | Static | Static |
| Brightness | 7500~8000cd/m2 | 7000~7500cd/m2 | 6500~7500cd/m2 | 5500~6000cd/m2 |
| Power Consumption | 1000w/m2 | 800w/m2 | 1000w/m2 | 600w/m2 |
| Best Viewing Distance | >12.5m | >15m | >20m | >25m |
| LED Types | DIP346 | |||
| Viewing Angle | Horizontal:120° Vertical:60° | |||
| Refresh Rate | 600Hz | |||
| Life Time | 100,000 hours | |||
| Display MTBF | 10,000 hours | |||
| Blind Pixels Rate | < 0.3‰ | |||
| Control Method | Synchronous or Asynchronous | |||
| Input Voltage | AC220V/110V±10%, 47~63Hz | |||
| Cabinet Material | Cold rolled steel or Aluminum | |||
| Waterproof Grade | IP65 | |||
| Working Environment | -20°C~+60°C, 15%~95%RH | |||
Communication methods:

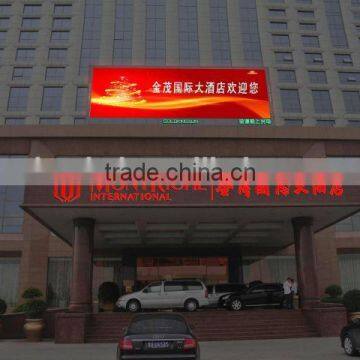

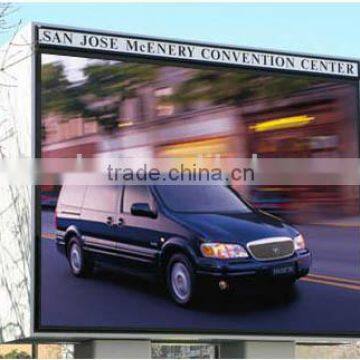

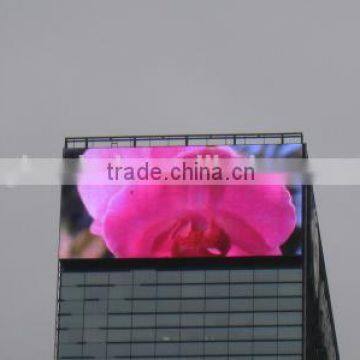

Real product picture:

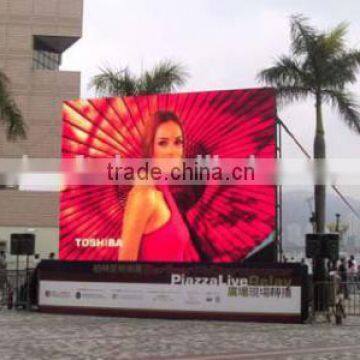

Application:
Outdoor LED display range offer many different resolution options that are suitable to a variety of applications
in the rental & staging market as well as for fixed Outdoor installations: Entertainment venues, Sports stadiums,
Outdoor advertising, etc.
More products you may like:
Packing & Shipping:
Packing: 1) Three-ply wooden case. 2) 2pcs per box. 3) Built-in foam.
Shipping: 1) By International Express, 3-5 days. 2) By Air, one week. 3) By Sea, one month.
