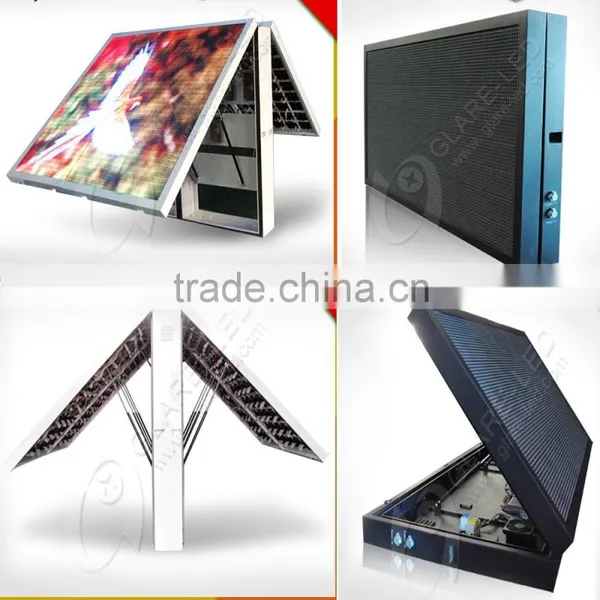

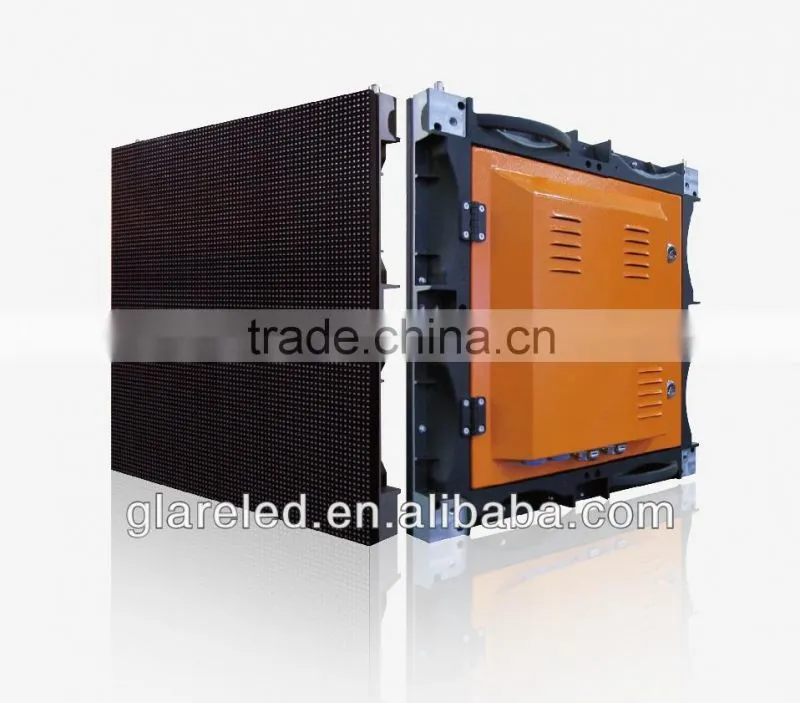

Indoor Outdoor massage sign board P2.5/P3/P4/P5/P6/P7.62/P8/P10
Detail Description
- The display is light, trendy and features a feel of high technology.
- The TV is module designed and the structure framework is composed of different single modules;

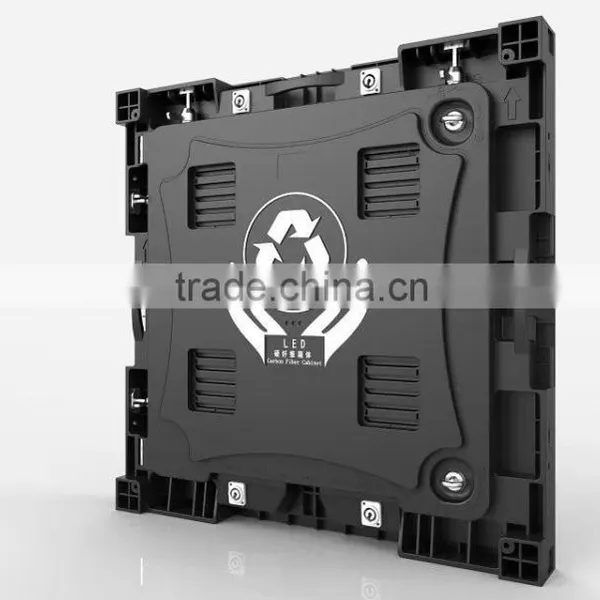

- Each unit has new designed aluminum-cast shell that features lightness, high precision, quickness in heat dissipation, fine looking and convenience in installation.
- Display units are fixed by locking device after being put in order horizontally and vertically, then forming a large screen;
- Modules are bolting-connected to the framework, ensuring qiuck installation;
- Aftercompletion, a smiling-face image is formed on the back of the screen;
-It is light in weight but strong in quality: the framework is made of aluminum-alloy materials; the components for installation and connection are made of deep drawing aluminum sheets.
P3 indoor full color black pearl
Pixel Pitch:3 mm
Pixel configuration:RGB
LED type: 2121SMD black pearl
Pixels per sqm:111111 dots
Module size:192*96 mm
Brightness:≥ 1800cd/sqm
Scan method:1/16
Fresh rate:≥ 1200Hz
Grey Level:16bit
P4 indoor full color black pearl
Pixel Pitch43 mm
Pixel configuration:RGB
LED type: 2121SMD black pearl
Pixels per sqm:62500 dots
Module size:128*128 mm
Brightness:≥ 1500cd/sqm
Scan method:1/16
Fresh rate:≥ 1200Hz
Grey Level:16bit
P5 indoor full color black pearl
Pixel Pitch:5 mm
Pixel configuration:RGB
LED type: 3528SMD black pearl
Pixels per sqm:4000 dots
Module size:160*160 mm
Brightness:≥ 1400cd/sqm
Scan method:1/16
Fresh rate:≥ 1200Hz
Grey Level:16bit
P6 indoor full color 1/8 scan
Pixel Pitch:6 mm
Pixel configuration:RGB
LED type: 3528SMD
Pixels per sqm:27777 dots
Module size:192*96 mm
Brightness:≥ 2600cd/sqm
Scan method:1/8
Fresh rate:≥ 1200Hz
Grey Level:16bit
P7.62 indoor full color
Pixel Pitch:7.62 mm
Pixel configuration:RGB
LED type: 3528SMD
Pixels per sqm:17222 dots
Module size:244*122 mm
Brightness:≥ 1500cd/sqm
Scan method:1/8
Fresh rate:≥ 1200Hz
Grey Level:16bit
P10 indoor full color
Pixel Pitch:10 mm
Pixel configuration:RGB
LED type: 3528SMD
Pixels per sqm:10000 dots
Module size:320*160 mm
Brightness:≥ 1200cd/sqm
Scan method:1/8
Fresh rate:≥ 1200Hz
Grey Level:16bit
APPLICATION:
High resolution, can be used for high-end big screen TV, suitable fro interio home theatre system, compared with conventional TV, it has a larger screen, more bright beautiful color and more shocking display effect. I can be acted as a high-end indoor screens at the same time, used in the various types of indoor places, such as high-end conference rooms, families, halls, cinemas, theatres, lounge, stations and so on.
Electronic Display Solution for information release---Electronic Information Display
P6 P7.62 P8 SMD outdoor advertising video LED wall screen
Applications
Advertising |
Retail Businesses |
Event Listings |
Waiting Areas |
Hospitals |
Safety Awareness |
Fund Raising |
Point of Purchase |
Entertainment Areas |
Financial Information |
Corporate Communications |
Features
• Display English or European characters as well as graphic symbols.
• kinds of methods of displaying your message (Open to Center, Open from Right, Open from left,Cyclic,etc.)
• Built-in real time clock. Customized time/date format are also available
• 8 programmable display speeds
• Segmented display capability to allow separate control of sections of the display
• Duplex function allows user read data from one sign by a PC and copy it to another sign
• Up to 128 units can network via RS422 communication
• Interface of the managing software can be in multiple languages
• Password protection.
• Low consumption
• Fixing methods: desk, wall or ceiling
• Display Real Temperature (optional)
Specifications
Outdoor LED Display
Items: Major Technical Data
Pitch: 6mm
Pixel Organization: 1R1G1B
Color Depth:13 bit/color
| Parameter | P6 | P7.62 | P8 | P10 |
| pixel pitch | 6mm | 7.62mm | 8mm | 10mm |
| pixelc omposing | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| pixel density | 27777dots/m2 | 17222dots/m2 | 15625dots/m2 | 10000dots/m2 |
| driving mode | 1/4 duty constant current | 1/4 duty constant current | 1/4 duty constant current | 1/4 or 1/2duty constant current |
| module size | 192*96 | 256*128 | 256*128 | 320*160 |
| Led parameter | R:625-630mm;G:520-525mm;B:465-470mm | R:625-630mm;G:520-525mm; | R:625-630mm;G:520-525mm; | R:620-630mm;G:520-525mm;B:465-470mm |
| B:465-470mm | B:465-470mm | |||
| brightness of white balance | 6000~6500Nits | 5000~5500Nits | 4500~5000Nits | 4000~4500/5500~6000Nits |
| viewing angle | H:120°/V:120° | H:120°/V:120° | H:120°/V:120° | H:120°/V:120° |
| best viewing distance | 7m | 8m | 9m | 11m |
| Led type | 3528 | 3528 | 3528 | 3528 |
| nsumption | 1000W / sqm | 1000W / sqm | 1000W / sqm | 500W / sqm |
| lifespan | 100000H | 100000H | 100000H | 100000H |
| size of cabinet | 768*768 | 976*976 | 768*768 | 1280*640 |
| parse if module | 32*16=512 | 32*16=512 | 32*16=512 | 32*16=512 |
| parse of cabinet | 128*128=16384 | 128*128=16384 | 128*128=16384 | 128*64=8192 |
| display mode | highest 1024*768 | highest 1024*768 | highest 1024*768 | highest 1024*768 |
| control | asynchronism or in-phrase | asynchronism or in-phrase | asynchronism or in-phrase | asynchronism or in-phrase |
| voltage control | AC220V/380±10%,50HZ | AC220V/380±10%,50HZ | AC220V/380±10%,50HZ | AC220V/380±10%,50HZ |
