Red Emitting Color and LED Modules Type P10 Led Module

Name: Red Emitting Color and LED Modules Type P10 Led Module
Brand: GLARE-LED
SKU: 131626167
Availability: InStock

US$ 65 - 65 MOQ: 500 Pieces

Key Specifications

Model Number:

10mm

Chip Material:

AlGaInP

Emitting Color:

Tri-Color(Red-Blue-Green)

Shenzhen Glare-LED Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Model Number 10mm

Chip Material AlGaInP

Emitting Color Tri-Color(Red-Blue-Green)

Color Temperature RGB

Operating Temperature(℃) -20, 40

Storage Temperature(℃) -40, 60

Place of Origin Guangdong, China

Brand Name GLARE-LED

Certification CE

Red Emitting Color and LED Modules Type p10 led module

Specification

Pixel Pitch:	10 mm
Pixel Density:	10000 pixels/sqm

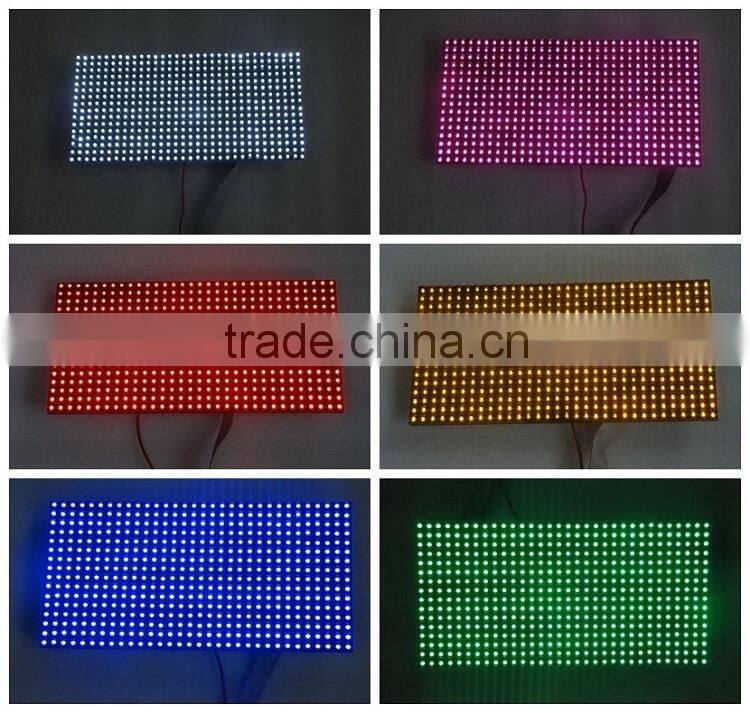

Pixel Configuration:	1R,or 1B,1G,1Y,1W
Module Dimension:	160*320 mm
Module Resolution:	16*32 pixels
Cabinets Dimension:	640*640 mm
Cabinets Resolution:	64*64 pixels
Brightness:	2000 cd/sqm
Best Viewing Distance:	> 10m
Average Consumption:	250 W/sqm
Max Consumption:	380 W/sqm
Viewing Angle:	Horizontal angle: 120 degree; Vertical angle: 60 degree
Processing:	12 bit
Ingress Protection:	Front IP65; Rear IP54
Refresh Rate:	300 to 4800Hz
LED lifetime:	100,000 hours
Input Voltage:	90 to 260VAC, 50/60Hz
Operation Humidity:	10% to 99%

p10 full color specification

Pixel Pitch:	10 mm
Pixel Density:	10000 pixels/sqm
Pixel Configuration:	1R1G1B
Module Dimension:	160*160 mm
Module Resolution:	16*16 pixels
Cabinets Dimension:	640*640 mm
Cabinets Resolution:	64*64 pixels
Brightness:	6800 cd/sqm
Best Viewing Distance:	> 10m
Average Consumption:	400 W/sqm
Max Consumption:	800 W/sqm
Viewing Angle:	Horizontal angle: 120 degree; Vertical angle: 60 degree
Processing:	12 bit
Ingress Protection:	Front IP65; Rear IP54
Refresh Rate:	300 to 4800Hz
LED lifetime:	100,000 hours
Input Voltage:	90 to 260VAC, 50/60Hz
Operation Humidity:	10% to 99%

LED Modules from Glare-led

P10 LED module

Specifications

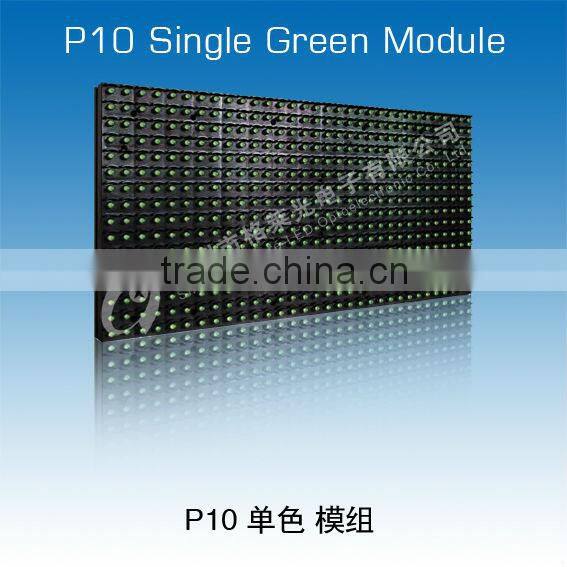

P10 Green color Outdoor LED Module
Technical parameter
Module size	320*160mm
Pixel pitch	10mm
Pixel density	10,000dots/m2
Pixel configuration	1G
Pixel resolution	3216 (WH)
Total weight	45kg/sqm
Best viewing angle	8-150m
Temperature	Storage: -35degree~+85degree
Temperature	Working: -20degree~+80degree
Brightness of white balance	3500cd/sqm adjustable
Operating ambient humidity	10%--95%
MTBF	≥10,000hours
Life span	≥100,000hours
Flatness	Tolerance of interpixel ≤0.3mm
Flatness	Tolerance of modules clearance≤0.6mm
Power switch	Automatic switch
Horizontal viewing angle	120degree
Vertical viewing angle	110degree
Control method	Synchronization or asynchronization
Warranty time	1years
