Smd Led Module for Stage Background Shape Led Display

Name: Smd Led Module for Stage Background Shape Led Display
Brand: Glare-led, GLARELED
SKU: 131626361

US$ 499 - 899 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Glare-led, GLARELED

Model Number:

P10, GLM-P10

Shenzhen Glare-LED Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Shanghai Ningpo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Glare-led, GLARELED

Model Number P10, GLM-P10

Usage Other, Outdoor, Outdoor

Tube Chip Color Other, Full Color, Full Color

Display Function Video

Pixels 10mm

Screen Dimension 320*160mm

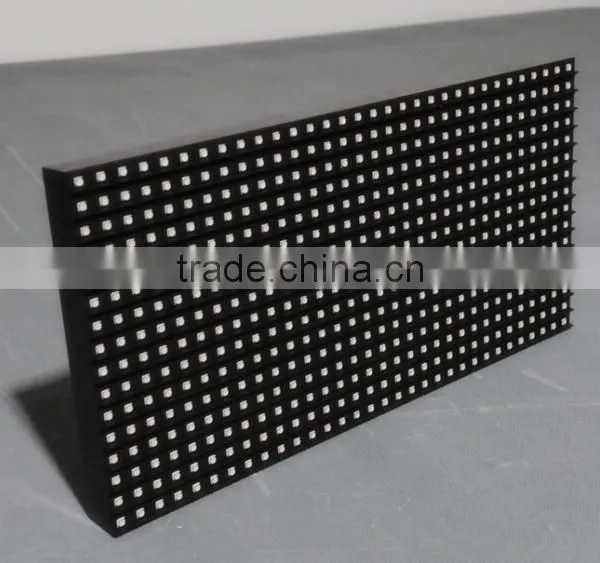

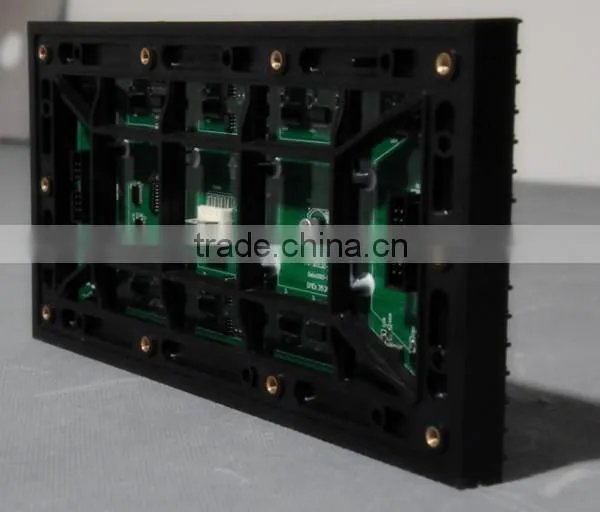

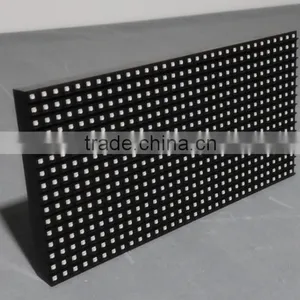

p10 rgb smd led module for outdoor use

Specification for P10 indoor SMD module

Model:P10-4S indoor SMD module

MAIN TECHNICAL PARAMETERS FOR INDOOR LED DISPLAY(PITCH6)

PARAMETERS for board
(Technical parameters)	UNIT		( parameters values )
(Pixel pitch)	MM		10
(Panel size)	MM		L320XH160X10
(Physical density)	/M2		10000
(Pixel configuration)	R/G/B		1,1,1
(Driving method)			Constant current 1/4scan
(LED Encapsulation)	SMD		3528
(Display resolution)	DOTS		32X16
(Module weight)	KG		0.4
Module port)			HUB75
(Module working voltage)	VDC		5
(Module consumption )	W		30
PARAMETERS for display
(Viewing angle)		Deg.	H120 V120
(Option distance)		M	6-60
(Driving device)			16126/5020
(Every square metre module)		PCS	27
(Maximum power)		W/ M2	1100
(Frame Frequency)		HZ/S	≥60
(Refresh frequency)		HZ/S	≥320
(Equilibrium brightness)		CD/ M2	≥2000
(Working environment temperature)		0C	-10~60
(Working environment humidity)		RH	10%~70%
(Display working voltage)		VAC	AC46~54HZ,220V±15%/110V±15%
(Colour temperature)			9500K-11500K
(Gray scale/color)			≥16.7M color
(Input signal)			RF S-Video RGB etc
(Control system)			PCTV nonlinearity card,display card,Linsn control system
(Mean free error time)		HOURS	>5000
(Life)		HOURS	100000
(Lamp failure frequency)			<0.0001
(Antijam)			IEC801
(Safety)			GB4793
(Resist the electricity)			1500V last 1min No breakdown
(Steel box weight)		KG/ M2	50(standard steel box)
(Earth leakage current)		mA
(IP rating)			The back IP40,The front IP50
(Steel box size)		mm	L768XH768X80
