Time Countdown Timer With Custom Printing

Time Countdown Timer With Custom Printing thumbnail-1
Time Countdown Timer With Custom Printing thumbnail-2
Time Countdown Timer With Custom Printing thumbnail-3
Time Countdown Timer With Custom Printing thumbnail-4
Time Countdown Timer With Custom Printing thumbnail-5
Time Countdown Timer With Custom Printing thumbnail-6
Time Countdown Timer With Custom Printing photo-1
Time Countdown Timer With Custom Printing photo-2
Time Countdown Timer With Custom Printing photo-3
Time Countdown Timer With Custom Printing photo-4
Time Countdown Timer With Custom Printing photo-5
Time Countdown Timer With Custom Printing photo-6
US$ 160 - 250 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Glareled
Model Number:
12"
Contact Supplier Request Quote Chat Now
Shenzhen Glare-LED Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Glareled
Model Number 12"
Usage Outdoor
Tube Chip Color Other, Red, Red, Amber, Green, Blue, White etc
Display Function Other, Graphics, Display time, temperature, date,count down&up
Pixels Other, 12mm
Screen Dimension 5"6"8"10"12"16"20"24"32"48" and ect

Specifications

led digital clock display
1. Time and temp showing
2. With auto-dimmer
3. Economical temperature sensor

Outdoor 4 inch to 72 inch 88:88 and 88:88:88 LED time and temperature sign



 Time Countdown Timer with custom printing



Features:

1. Available in 4 and 5 digit formats
2. 100,000+ hour rated LEDs available from 8” to 24” tall
3. Multiple stroke digits for the ultimate brightness in daylight viewing
4. Wireless control standard (150 + feet of range)
5. 240 levels of automatic brightness control
6. Automatic daylight savings adjustments
7. Display Duration: 3-seconds to 9-seconds
8. Time displays in 12 and/or 24 hour format
8. Temperature displays in Fahrenheit and/or Celsius
9. Price displays to 99.99 in 4-digit display format
10. Price displays to 999.99 in 5-digit display format
11. Date displays in mm/dd format
12. Low profile 2.5" deep display housing

13. RF remote controller for the outdoor time and temp signs , the manual attached.



Technical Parameters:

Item Technical Parameters
Color Red, amber, green, blue or white
Digit height 4", 6", 8", 10", 12", 16", 18",20",24",27",32", 36", 40", 48", 60", 72" etc.
Digit design 4", 6", 8",10", 12", 16",18",20",24",27",32": standard digit.
Brightness control Auto-dimming by sensor or remote control.
Display Dimming Over 8 levels of automatic intensity adjustment.
Viewing Angle Indoor: H120° , V 100°, Outdoor: H 120° , V100° or customized.
Service Access Rear access or customized.
Master/Slave Single/Double/Three/four sides, use one control card, all working. or customized.
Casing Material Steel, aluminum available.
Front cover Displays with 32" & over digit high are without front cover; others with front cover.
Waterproof Level IP 54 from 4" to 32" (outdoor), IP65 front & IP54 rear from 32" to 72" (outdoor).
Temperature sensor Default economical sensor, All sensor is available for more exact request.
LED Driving mode Constant current
Power Input 110/220VAC , 60Hz/50Hz
PC Communication Rs232
Communication Distance 8m
Remote control type 300ft / 100m, range of RF remote control.
Continuous Working Time Unlimited
Lifetime of LEDs >100,000 Hours
Installation Method Hanging, mounting or per custom design.
Working Temperature Indoor: -10°C ~ 40°C,Outdoor: -20°C ~ 60°C, Humidity: 15%~95%RH
Display format 88:88 or 88:88:88
GPS Optional





Product Parameters:



Digital Height Casing Material Casing Size (mm) Waterproof Level Typical Brightness Viewing Angle
6 inch  Steel cabinet
 Front cover
 Rear service		 729*228*100 N/A 100CD/sqm H:120°/ V:100°
8 inch 774*294*100   Frontside:IP65
  Backside:IP54

1. 4000cd/sqm without front cover.
2. The brightness is lower adding
   front cover but contrast degree
   is higher, so clearer for outdoor
   view.

3. With auto-dimmer.
4. With economical temperature
    sensor.
10 inch 1144*347*100
12 inch 1384*400*100
16 inch 1122*507*100
20 inch 1339*610*100
24 inch 1339*610*100 1. With auto-dimmer.
2. With economical temperature
    sensor.
27 inch 1939*788*100
32 inch 2287*917*100





System Connectivity:

Time Countdown Timer with custom printing



Time Countdown Timer with custom printing

RF Remote Controller:

Time Countdown Timer with custom printing

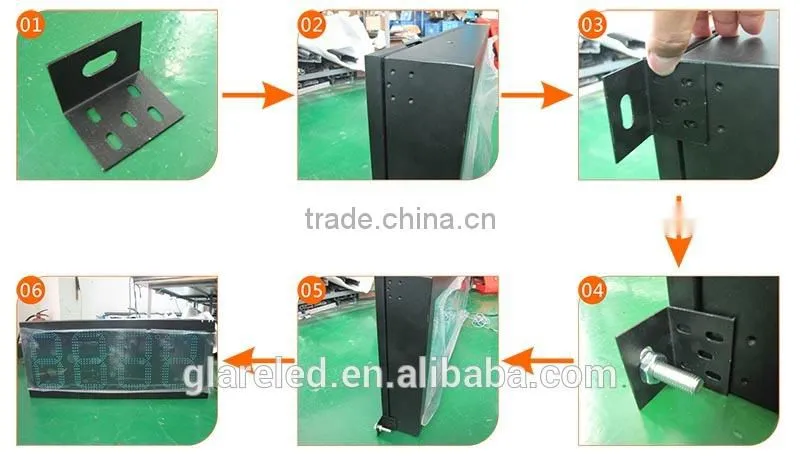

Bracket Mounting:

Time Countdown Timer with custom printing

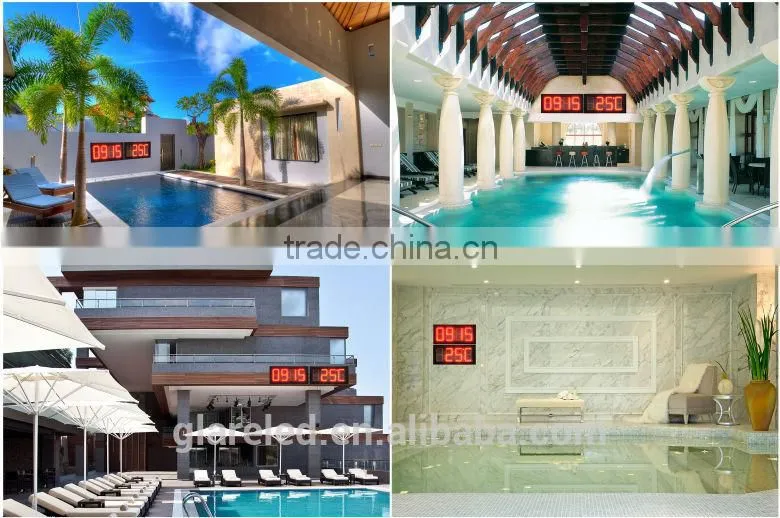

Success Project :

Time Countdown Timer with custom printing





Shipping&Payment:

1)TT 50% As deposit +50% Balance before shipping after examine goods.

2)West union, L/C at sight etc. are all ok.

3)In general, 5~7 days after deposit, Accurate production time depends on  production schedule .

4)Sample will be shipped by DHL.

5)Normal export wooden and Carton case package .

6)We will always tracking and helping you get the best Purchasing experience.



Certificate:

Time Countdown Timer with custom printing



Our-Team





 We expect helping you with what you need!

 We will be pleased to cooperate with you and do win-win business !

 Please call me or email me ! Your inquiry will be answered in 12 hours !
