Specifications
led digital clock display1. Time and temp showing
2. With auto-dimmer
3. Economical temperature sensor

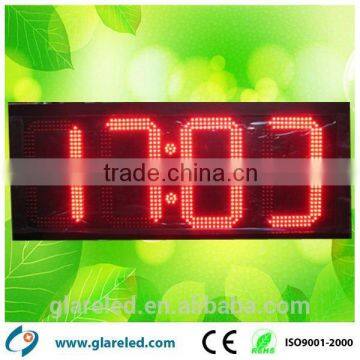

Outdoor 4 inch to 72 inch 88:88 and 88:88:88 LED time and temperature sign
Features:
1. Available in 4 and 5 digit formats
2. 100,000+ hour rated LEDs available from 8” to 24” tall
3. Multiple stroke digits for the ultimate brightness in daylight viewing
4. Wireless control standard (150 + feet of range)
5. 240 levels of automatic brightness control
6. Automatic daylight savings adjustments
7. Display Duration: 3-seconds to 9-seconds
8. Time displays in 12 and/or 24 hour format
8. Temperature displays in Fahrenheit and/or Celsius
9. Price displays to 99.99 in 4-digit display format
10. Price displays to 999.99 in 5-digit display format
11. Date displays in mm/dd format
12. Low profile 2.5" deep display housing
13. RF remote controller for the outdoor time and temp signs , the manual attached.
Technical Parameters:
| Item | Technical Parameters | ||||||||||
| Color | Red, amber, green, blue or white | ||||||||||
| Digit height | 4", 6", 8", 10", 12", 16", 18",20",24",27",32", 36", 40", 48", 60", 72" etc. | ||||||||||
| Digit design | 4", 6", 8",10", 12", 16",18",20",24",27",32": standard digit. | ||||||||||
| Brightness control | Auto-dimming by sensor or remote control. | ||||||||||
| Display Dimming | Over 8 levels of automatic intensity adjustment. | ||||||||||
| Viewing Angle | Indoor: H120° , V 100°, Outdoor: H 120° , V100° or customized. | ||||||||||
| Service Access | Rear access or customized. | ||||||||||
| Master/Slave | Single/Double/Three/four sides, use one control card, all working. or customized. | ||||||||||
| Casing Material | Steel, aluminum available. | ||||||||||
| Front cover | Displays with 32" & over digit high are without front cover; others with front cover. | ||||||||||
| Waterproof Level | IP 54 from 4" to 32" (outdoor), IP65 front & IP54 rear from 32" to 72" (outdoor). | ||||||||||
| Temperature sensor | Default economical sensor, All sensor is available for more exact request. | ||||||||||
| LED Driving mode | Constant current | ||||||||||
| Power Input | 110/220VAC , 60Hz/50Hz | ||||||||||
| PC Communication | Rs232 | ||||||||||
| Communication Distance | 8m | ||||||||||
| Remote control type | 300ft / 100m, range of RF remote control. | ||||||||||
| Continuous Working Time | Unlimited | ||||||||||
| Lifetime of LEDs | >100,000 Hours | ||||||||||
| Installation Method | Hanging, mounting or per custom design. | ||||||||||
| Working Temperature | Indoor: -10°C ~ 40°C,Outdoor: -20°C ~ 60°C, Humidity: 15%~95%RH | ||||||||||
| Display format | 88:88 or 88:88:88 | ||||||||||
| GPS | Optional | ||||||||||
Product Parameters:
| Digital Height | Casing Material | Casing Size (mm) | Waterproof Level | Typical Brightness | Viewing Angle | ||||||
| 6 inch | Steel cabinet Front cover Rear service | 729*228*100 | N/A | 100CD/sqm | H:120°/ V:100° | ||||||
| 8 inch | 774*294*100 | Frontside:IP65 Backside:IP54 | 1. 4000cd/sqm without front cover. 3. With auto-dimmer. | ||||||||
| 10 inch | 1144*347*100 | ||||||||||
| 12 inch | 1384*400*100 | ||||||||||
| 16 inch | 1122*507*100 | ||||||||||
| 20 inch | 1339*610*100 | ||||||||||
| 24 inch | 1339*610*100 | 1. With auto-dimmer. 2. With economical temperature sensor. | |||||||||
| 27 inch | 1939*788*100 | ||||||||||
| 32 inch | 2287*917*100 | ||||||||||
System Connectivity:
RF Remote Controller:
Bracket Mounting:
Success Project :
Shipping&Payment:
1)TT 50% As deposit +50% Balance before shipping after examine goods.
2)West union, L/C at sight etc. are all ok.
3)In general, 5~7 days after deposit, Accurate production time depends on production schedule .
4)Sample will be shipped by DHL.
5)Normal export wooden and Carton case package .
6)We will always tracking and helping you get the best Purchasing experience.
Certificate:
We expect helping you with what you need!
We will be pleased to cooperate with you and do win-win business !
Please call me or email me ! Your inquiry will be answered in 12 hours !
