Specifications
1.7" lcd screen G070Y3-T012.width:height:17:9
3.View angle:R/L/U/D 70/70/60/60
4..backlight:wled
5.ROHS
CMI G070Y3-T01 7" lcd display with ROHS for medical equipment :
.Features:
| 1) Original guarantee; |
| 2) Competitive prices; |
| 3) Offer 12 months of warranty; |
| 4) Original technology support; |
| 5) backlight life more than 50000 hours |
| 6) led driver integrated |
| 7) wide view angle |
| 8) wide temperature |
| 9) wide aspect ratio |
| 10)Rohs Compliant |
| 11)Stable supply at least 3-5years |
Specification:
| Module number | G070Y3-T01 |
| Resolution | 800 x 3(RGB) x480 |
| Pixel Pitch | 0.1950 x 0.1725 (mm) |
| Active Area | 156 x 82.8 (mm) |
| View angle | R/L/U/D 70/70/60/60 (Deg) |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Surface Treatment | Hard Coating ( 3H ), AG ( Haze 25 % ) |
| Electrical Interface | TTL(1ch, 6-bit) |
| Brightness | 600 (cd/m2) |
| Contrast ratio | 650:1 |
| Outline dimension | 168.0(W) x 94.0(H) x 6.35(D) (mm) |
| Gross weight | 180g |
| Backlight | LED |
| Response time | 16 (ms) |
| Display mode | TN, Normal White |
| Operate temperature | -30-85 (°C) |
| Storage temperature | -40-90 (°C) |
| Display Colors | 262.144 ( 6 bits ) |
| Power Supply Voltage | 3.3v |
. The main model of CMI/INNOLUX is as follows:
| G070Y3-T01 | G121X1-L04 | AT043TN25 V.2 | AT065TN14 |
| G070Y2-T02 | G121I1-L01 | AT043TN24 V.7 | AT070TN94 |
| G070Y2-L01 | G150X1-L03 | EJ050NA-01G | AT080TN64 |
| G080Y1-T01 | G150XGE-L04 | AT056TN52 V.3 | EJ080NA-05B |
| G104X1-L03 | G185BGE-L01 V1.0 | AT056TN53 V.1 | ZJ090NA-03B |
| G104X1-L04 | G133IGE-L03 | AT070TN83 V.1 | EJ101IA-01F |
| G104S1-L01 | G154I1-LE1 | G057VGE-T01 | AT102TN03 V.9 |
| G104V1-T03 | G057AGE-T01 | AT102TN03 V.8 | |
| G121X1-L03 | AT070TN92 | LSA40AT9001 | |
| G121S1-L02 | AT102TN03 V8 | LQ035NC111 |
To be continue…

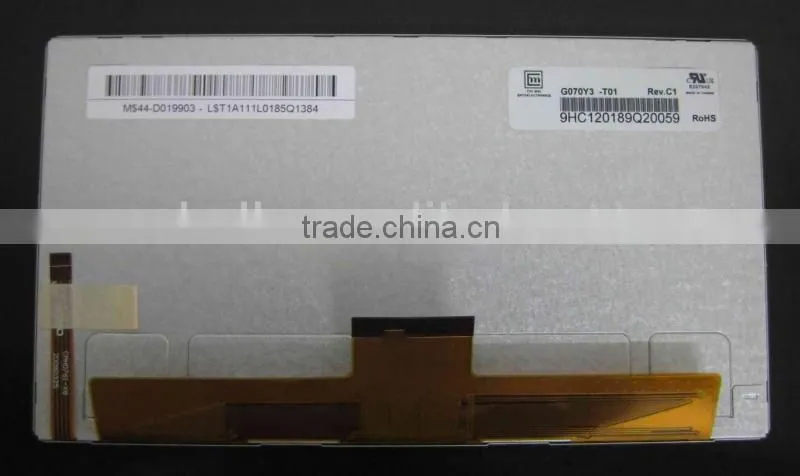

.The real photo:
LCD Configuration:
| 1.What Brand do you have? |
| Re: AUO,Mitsubishi,CMI/INNOLUX,Tianma |
| 2.What is your delivery method? |
| Re: DHL , UPS , FedEx ,TNT |
| 3.what’s your products condition? |
| Re: Brand New,A grade,Original Package. |
| 4. What is your guarantee time? |
| Re: 1 year |
| 5. What is delivery time? |
| Re: 2-7 days after payment is received. |
| 6. What payment term do you accept? |
| Re: T/T,PAYPAL etc. |
| 7. what’s the certification your products get? |
| Re: Rohs Compliant |
| 8. How long can you supply the industrial grade products? |
| Re: at least 3-5 years |
| 9.what’s your MOQ of your products? |
| Re: NO MOQ |
| 10.How to order |

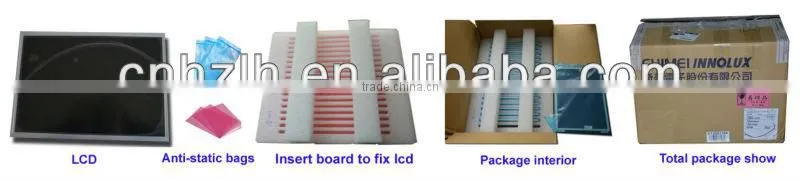

Packing details:
The more information about Hangzhou LEEHON is as follows:
1)business type:
* Leehon is one of the main agents: AUO/Tianma/Innolux/Mitsubishi/CMI/Sharp etc.
2)Lcd panel size range: from 2.2 inch to 24 inch ;
3)Quality promise:
* All the panels are 100% original and brand new, no fake panels, quality promised; And also Provided 12 months of warranty,all the packages have labels and serial number, you can check .
4) With The most competive price and quickly delivery for batch order :
* Here will send the products from the original factory directly to control the price and quality from 2002
* We have international logistic center in Hongkong.We can delivery the goods from Hongkong directly avoiding the VAT for China.
5)Our parters:
* Products are sold to more than 20 countries, regular supplier of Marvell(USA),Moran AV(Israel), EUROCOMPOSANT(Franch),ELMAK srl(Italy), Russian Federation(OOO West-Ost ) etc.
*More products' info, pls welcome to visit our website and turn to english version
