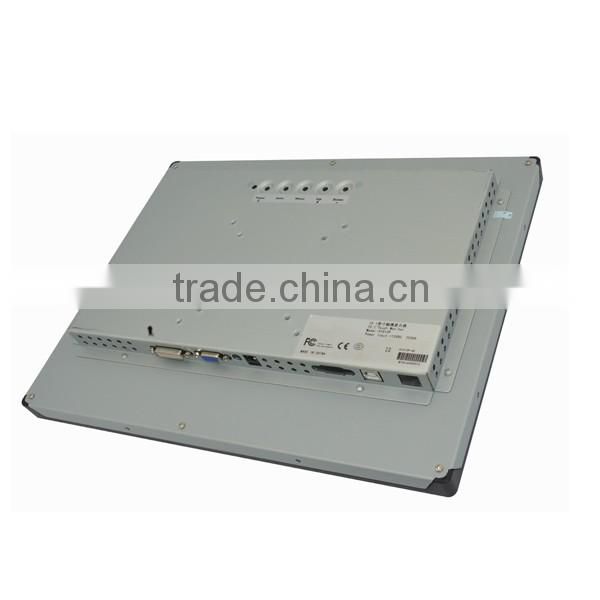

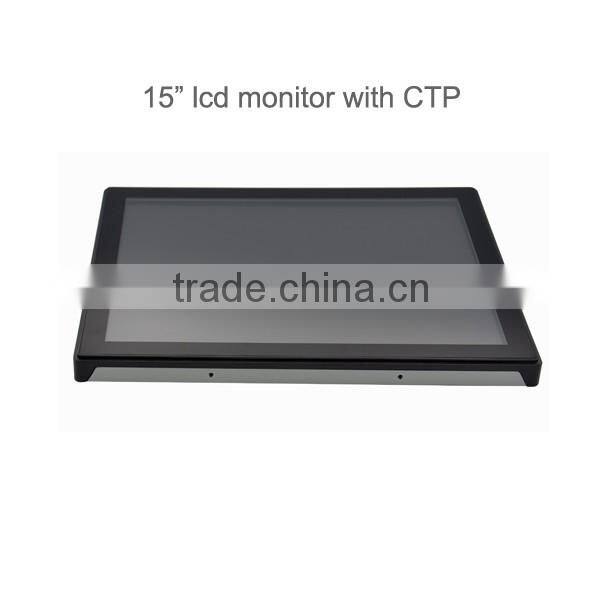

LH1512P 15 inch touch screen VGA monitor itor
Model |
LH1512P |
Display Type |
15” Active Matrix TFT LCD |
Case/Bezel Color |
Black |
Aspect Ratio |
4:3 |
Active Display Area |
LCD Panel: 304.1mm(H) × 228.1mm(V) |
Native Resolution |
1024 × 768 @ 60 Hz |
Pixel Response Time (Typ.) |
35 ms |
Colors |
16.7 million |
Brightness (Typ.) |
LCD Panel: 300 cd/m2 |
Contrast Ratio (Typ.) |
800:1 |
|
Viewing Angle (from centre, CR>10) |
Horizontal (left/right): 160° (80°/80°) Vertical (up/down): 145° (65°/80°) |
Input Video Format |
RGB Analog / Digital |
Input Video Signal Connector |
VGA / DVI-D |
Input Frequency |
Horizontal: 30 to 82 kHz Vertical: 60 to 75 Hz |
Touch Technology |
Projected Capacitive Touch (P-Cap) |
Touch Point |
MAX: 10 points |
Touch Interface |
USB |
On Screen Display (OSD) |
Control (back): Power, Auto, Menu, Up, Down |
Power Supply |
External Adapter: 100-240 VAC, 50-60 Hz Input Voltage Range: +12VDC ± 5% |
Input Connector |
DC: Coaxial power jack (2.5 mm pin diameter, 5.5 mm barrel diameter, 11.5 mm barrel length) |
Power Consumption (Max) |
LED: 20 W |
Monitor Dimensions |
349.0mm(W) × 272.0mm(H) × 41.0mm(D) |
Shipping Carton Dimensions |
TBD |
Weight |
Monitor/Shipping (Approximately): TBD |
Touch Resolution |
4096 × 4096 |
Touch Response Time |
<15ms |
Transmittance |
>87% |
Surface Hardness |
≥7H |
Click Life Time |
No limited |
Temperature Range |
Operating: 0°C to 40°C (32°F to 104°F) Storage: -20°C to 60°C (-4°F to 140°F) |
Relative Humidity |
Operating: 20%-80% Storage: 10%-90% |
Warranty |
3 years LCD panel & Touch screen: 1 year MTBF: 50,000 hours demonstrated (Backlight Lamp Life, Hrs to 1/2 brightness) |
Agency Approvals |
FCC, CE |
