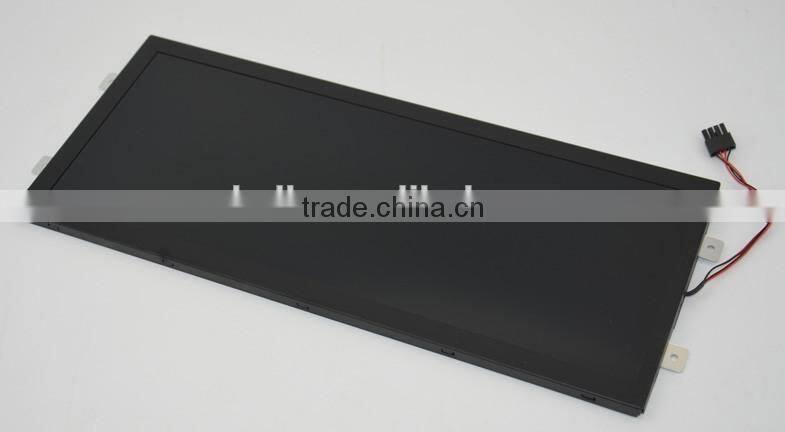

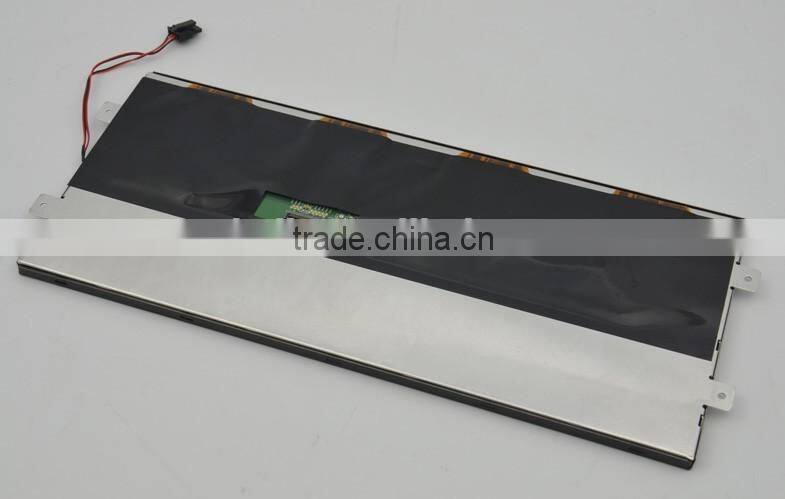

12.3" 1920x720 tft lcd LH123WU01 stretched bar lcd
Our guarantee:
- brand new, A grade
- 100% AUO Original
- 12 months of quality warranty
- Stable delivery for 3-5 years
| Module number | LH123WU01 |
| Resolution | 1920X720 |
| Dot pitch | 0.05075(H)X0.15225(V) mm |
| Active Area | 292.32 (W)X109.62(H) mm |
| View angle | R/L/U/D 80/80/80/80(Deg) |
| Pixel Arrangement | RGB-stripe |
| Surface Treatment | hard coating |
| Electrical Interface | LVDS |
| Brightness | 800(cd/m2) |
| Contrast ratio | 700:1 |
| Outline dimension | 308.1(W)X134.86(H)X6.5(D) mm |
| Backlight | LED |
| Display mode | IPS, Normally BLACK |
| Operate temperature | -30~85℃ |
| Storage temperature | -40~95℃ |
| Display Colors | 16.7M |
| Power Supply Voltage | 3.3v(Typ.) |
Bar LCD
Mainly used in Subway
Taxi
Bus
Aerospace
Game device etc
Hangzhou LEEHON Technology is established in 2009, nearby beautiful Hangzhou West Lake. We are specialized in supplying clients with professional display solutions. now our products are sold to more than 20 countries, products including monochrome screen, color TFT LCD screen ( GD /Industrial grade, AV /car class, PID /General Application) and we can add other related products such as driver board, control board, cables, inverter and touch panel,open frame etc accessories for our customers.
If you have any question, please contact us
Attn:Susan Wang
Skype: leehon806
Tel: 0086-571-86684288
MP:0086-13136181392
>>Quality ensurance
100% original and brand new, no fake panels exists !
12 months of warranty !
You can enjoy the real panels directly from original factory;
>>Packing ensurance
Original package and Seal for batch orders, all the products are
We have professional support team to provide effective service, we are young and full of passion! in original package from original factory directly, and all the packages have labels and serial number!
>>Delivery ensurance
We have international logistic center in HK, Shanghai and Shenzhen, so we can arrange fastest and most convenient delivery for you !
>>After-Sale service
We have professional support team to provide effective service, we are young and full of passion!
More products' informations, welcome to visit our website:
