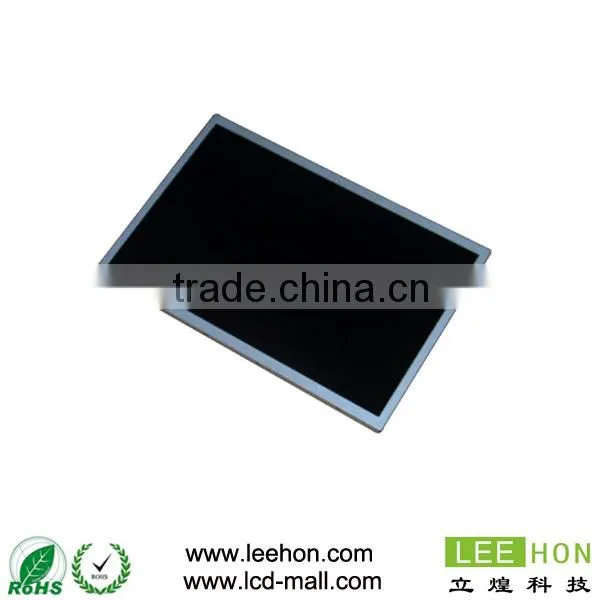

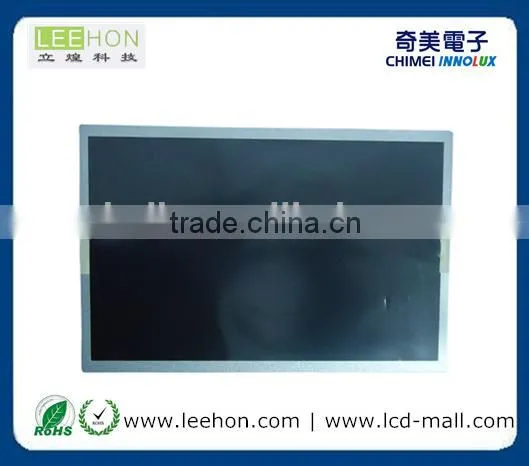

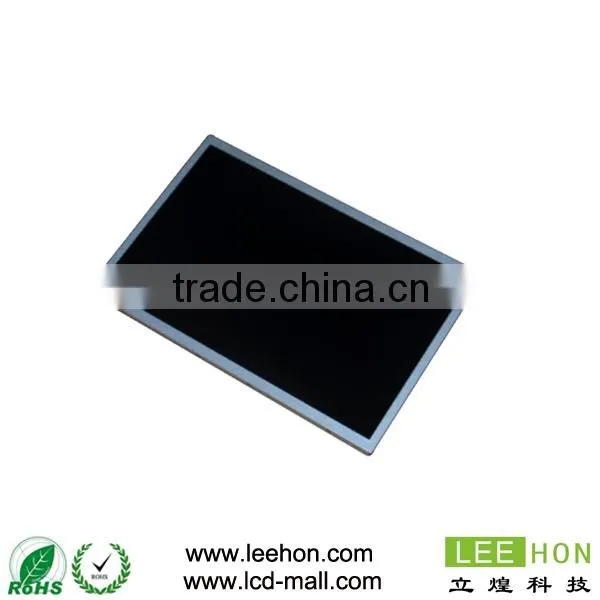

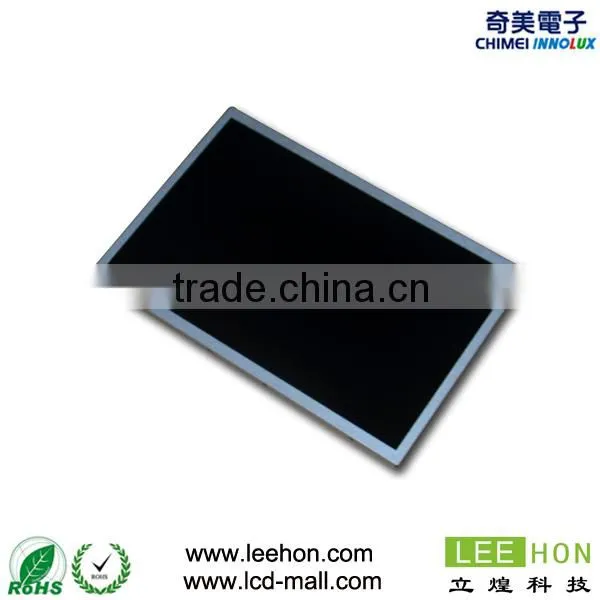

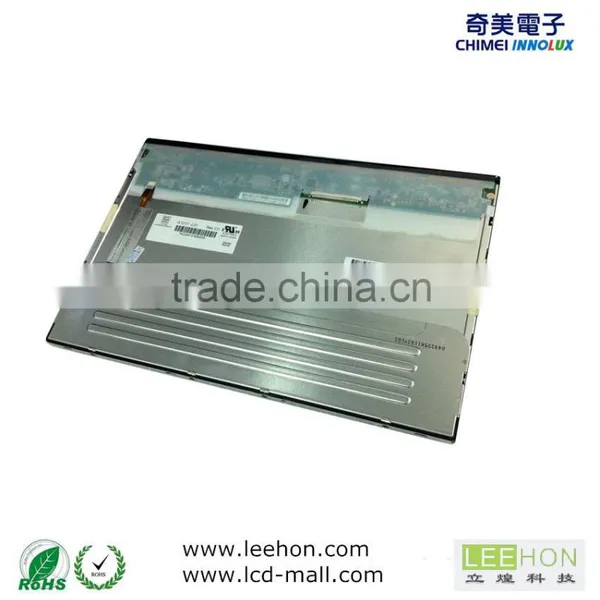

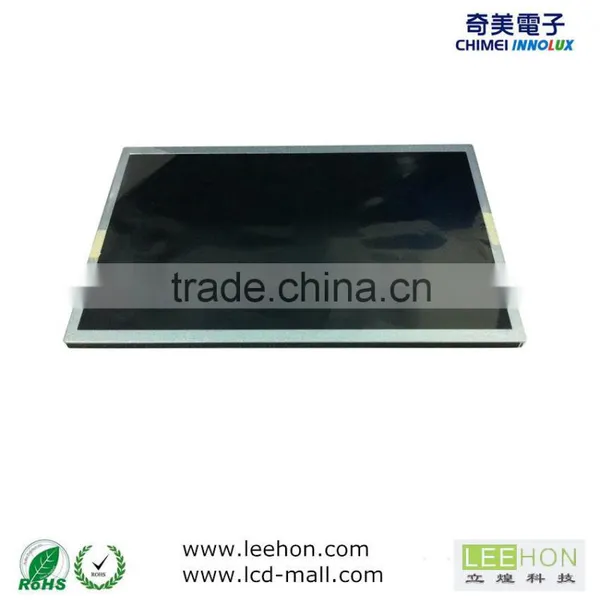

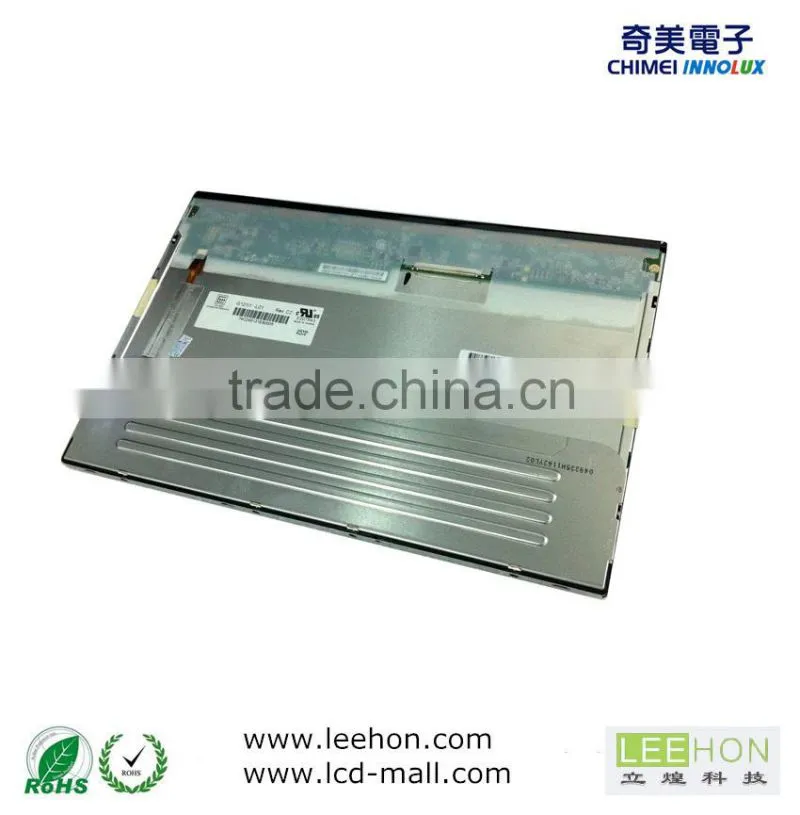

Help CenterG121i1-L01 Lcd Display of 12.1 Inch With High Resolution
Related Products
-
LH1512P 15 Inch Touch Screen VGA MonitorUS$ 100 - 260MOQ: 1 Piece -
HT185WX1-300 BOE 18.5 Inch TFT LCD Panel for Desktop Type of PCUS$ 50 - 110MOQ: 1 Piece
-
12.3" 1920x720 Tft Lcd LH123WU01 Stretched Bar LcdUS$ 100 - 220MOQ: 1 Piece
-
M238HVN01.0 24'' LCD ModuleUS$ 105 - 110MOQ: 1 Piece
-
BOE BP101WX1-206 1280x800 10.1 Inch Tft Lcd ModuleUS$ 1 - 50MOQ: 1 Piece
G121I1-L01 Specification:
| Module number | G121I1-L01 |
| Type | a-Si TFT LCD |
| Panel Size | 12.1 inch |
| Resolution | 1280X800 |
| Width:Height | 16:10 |
| Pixel Pitch | 0.204×0.204(mm) |
| Active Area | 265.10×167.20(mm) |
| View angle | R/L/U/D 88/88/88/88 (Deg) |
| Mode | MVA, normally Black, transmissive |
| LCD Surface | Anti-glare, Hard coating(3H) |
| Number of Colors | 262K/16.2M(6 bit/ 6 bit + FRC) |
| Electrical Interface | LVDS(1ch, 6/8 bit) |
| Brightness | 400 cd/m2 |
| Contrast ratio | 1000:1 |
| Outline dimension | 278x184x10mm(Typ.) |
| Panel weight | 455g(Typ.) |
| Backlight | WLED |
| Power Consumption | 10.15W |
| Supply Voltage (V) | 3.3V |
| Response time | 15/10(ms) |
| Operate temperature | -10-70 (°C) |
| Storage temperature | -20-80 (°C) |
Product features |
-- WLED backlight & Backlight replaceable & LED Driver integrated; -- Wide screen; -- Nearly full view angle; -- 6/8 bit optional; -- SAG Surface. |
| Application |
Special for industrial grade use.
|

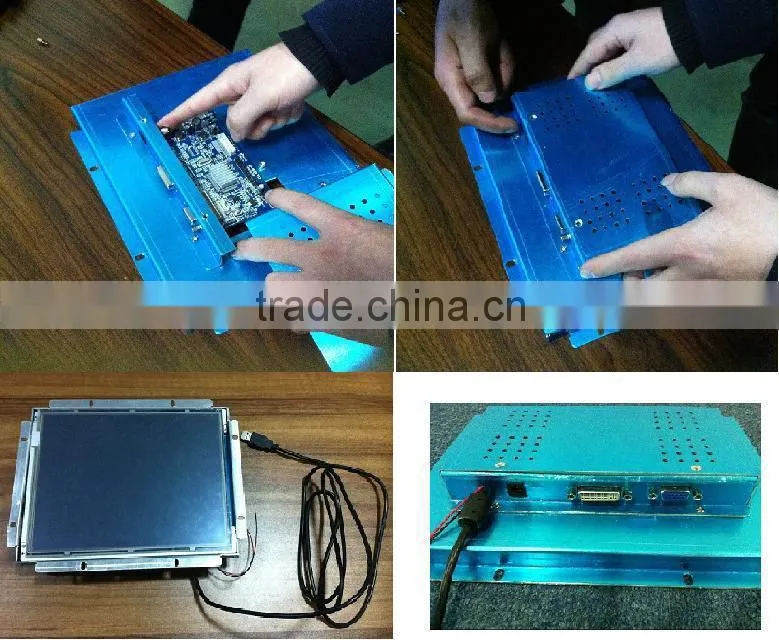

We also can provide total set such as lcd panel + touch + ad board + osd board + cables for you, quality promised.
Why you choose us:
-- We're one of the main agents of AUO/Tianma/CMI/Innolux/Mitsubishi TFT- LCD module in China mainland. On price matters, we surely have the advantage as we have the direct source for original panels;
-- Quality promised. We promise, all the panels are 100% original and brand new, no fake panels exists, and A/A+ grade for all AUO panels(as only auo has grade standard for the five brands). Also Provide 12 months of warranty, you can return any fake panels and charges by us;

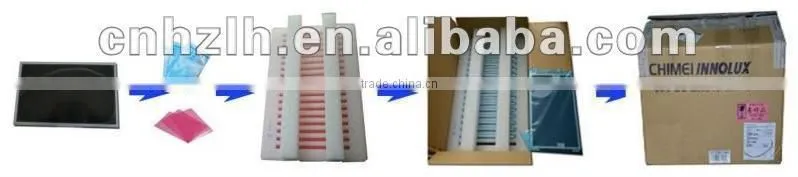

-- Strict package. All the products are in original package from original factory, and all the packages have labels and serial number from original factory, you can check then;
-- Quick delivery. As we have huge stock, orders usually takes 24 hours to 7 working days before shipment;
-- Various Express supported. We also have long cooperation relationship with DHL/UPS/EMS/FedEx/TNT Express companies AND we can get the most competitive freights from them;
-- Convenient delivery. We also have international logistic center in Hongkong to support your orders to be delivered from Hongkong directly and to avoid Value Added Tax in china for you;
-- Original factory technical support;
-- Superior After-Sale service. Your buy is not the end, it's the beginning of our service.
Contact me now
Karern Cao
QQ:3158/411735
Mp:15893928657
Tel:0086-571-86684288
