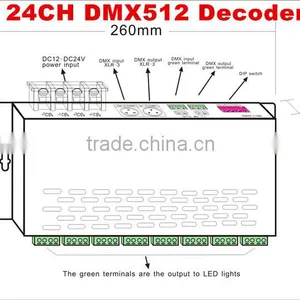

RGB DMX Decoder 24ch (8 RGB) 3A/Ch thumbnail-4
RGB DMX Decoder 24ch (8 RGB) 3A/Ch photo-1
RGB DMX Decoder 24ch (8 RGB) 3A/Ch photo-2
RGB DMX Decoder 24ch (8 RGB) 3A/Ch photo-3

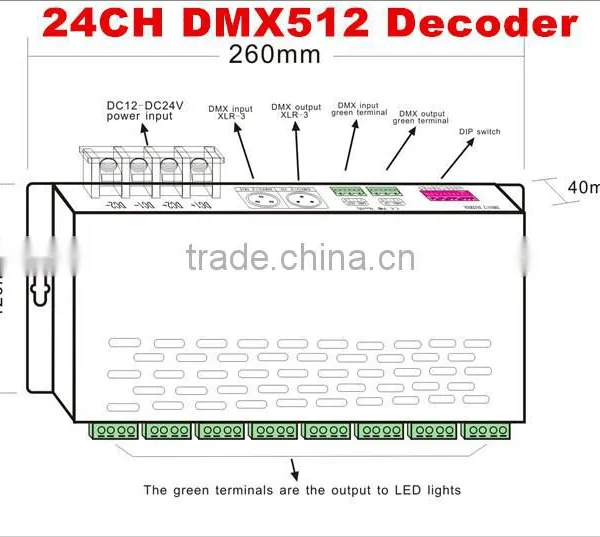

RGB DMX Decoder 24ch (8 RGB) 3A/Ch photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Bincolor
Model Number:
BC-824
Contact Supplier Request Quote Chat Now
Zhuhai Bincolor Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
zhuhai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Bincolor
Model Number BC-824





                       RGB DMX Decoder 24ch (8 RGB) 3A/Ch



Introduction :





BC-824 24CH RGB DMX decoding driver works to convert universal DMX512/1990 digital signal to PWM signal

which controlled by DMX512 console, with 256 levels grey scale output per channel. Adopting unique

programming technology, Creating exclamatory, perfect color fade & smooth effect, simultaneously let LED color more affluent.



Feature :





1.24 output channels, 3A per channel which can connect RGB full-color lights.


2.0-100% smooth brightness adjusting, 256 grey steps per channel.


3.Universal standard DMX512 input protocol; addresses can be set up by DIP switch.


4.Working voltage from DC12V-DC24V.


5.10 self-changing modes, 8 speed levels.



6. Power loss memory function.





Specification :







Model

BC-824

Input voltage

DC12V-24V

Max load current

3A/CH×24

Max output power

860W/1720W(12V/24V )

Output Scale level

256 levels

Input signal

DMX512/1990

Output DMX Channel

24Ch CV PWM

working temperature

-30°C-65°C

Dimension

L260×W110×H40(mm)

Package Size

L270×W130×H45(mm)

Weight (G.W)

920g





Product show :







      RGB DMX Decoder 24ch (8 RGB) 3A/Ch







Wiring diagram :







            RGB DMX Decoder 24ch (8 RGB) 3A/Ch









   RGB DMX Decoder 24ch (8 RGB) 3A/Ch
