Pneumatic Classifier

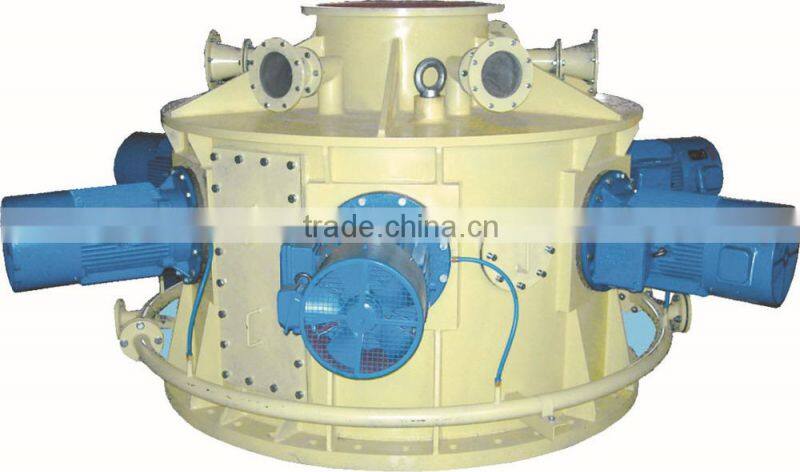

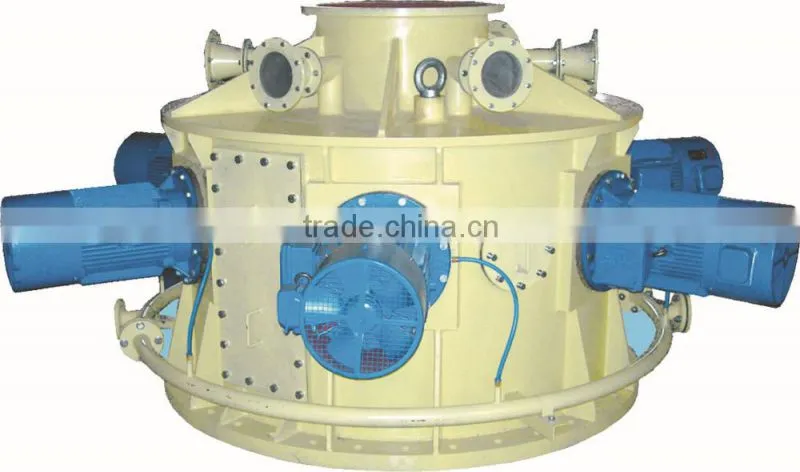

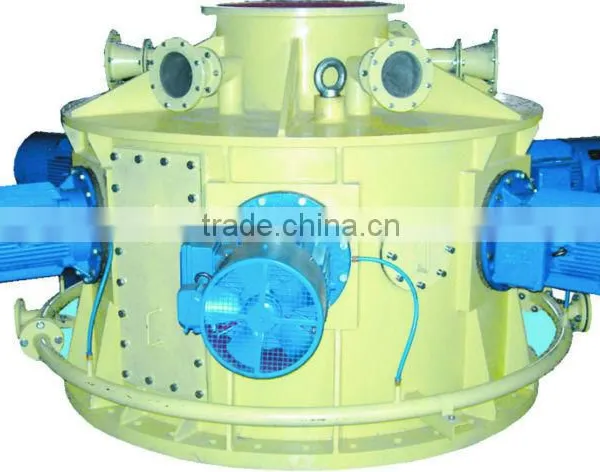

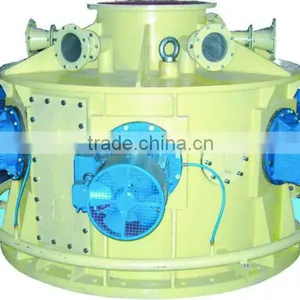

Series HFW Pneumatic Classifier

Working Principles:

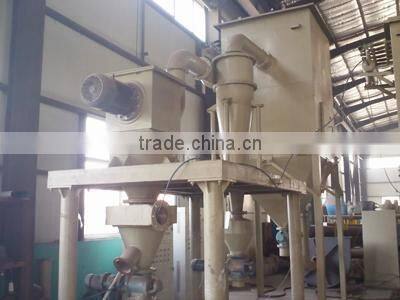

Classifier and Cyclone separator, dust collecter, draft fan compose a hierarchy. Under the effect of draft fan, materials go into the classification area with rising air from the feed input at the bottom of classifier. Under the effect of strong centrifugal force caused by the high-speed rotary turbine role, course particles and fine particles separate. The fine particles meeting the requirements of particle size go into the cyclone seperator or dust collector visa the gap of classifier leaves. Coarse particles along with part of fine particles diappear immediatlle after impacting the wall and then fall down to the secondary tuyere department.Under the washing effect of secondary wind, coarse particles and fine particles separate. Fine particles go up to the classification area to be classified second time, while coarse particles go down to discharge from the outlet.
Performance Features:
Applicable to dry products refined classification; could be graded as spherica and irrigular shade particles; could also grade the different density of particles
Graded products granularity to D97:3~150 micrometers, adjustable products granularity-level, extremely convenient to replace species
Classification efficiency (extraction rate) 60%~90%, which is inflenced by metarials and consistent of the particles meeting the granularity; with good mobility and high consistent of the particles meeting the granularity, the materials classification efficiency is high; while without those, the efficiency is low.
High speed and top-cutting precision.
Multi-level classification machine can be cascaded , and production of various products granularity
With the ball mill, vibration grinding, grinding, Raymond contacted powders equipment used to form the closed circuit cycle
Control system using programmed control to indicate real-time operational status; easy to operate
Filtration system operation, dust emissions is not exceeding 40mg/m3, equipment noise through the use of snipers, not more than 75dB (a).

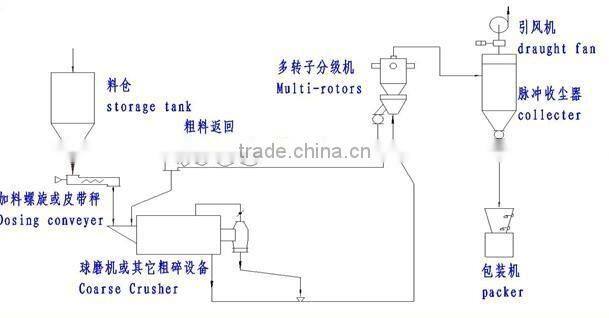

Technological process chart

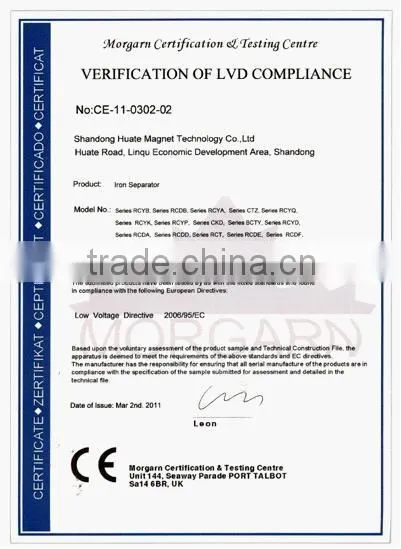

Huate take the lead to pass throgh the GB/9001-ISO9001:2000 international quality system certificate, ISO14001:2004 environmental management system certificate.

As the global leading magnetic application system supplier,our HUATE is specialize in manufacturing six types,30 series and more than 300 models products of specifications,includes superconductive iron separator,magnetic separators,electromagnetic and permanent magnetic iron separation equipments,electromagnetic and permanent magnetic stirrer,metal detetor, dedusting equipment,crushing equipment,classifier,feeder,grinding and separating for mineral equipments.

Depending on our rich experience and technology,we can design,suply,and install the whole process line for ore mining.

Service scope involves thermal power plant,coal industry,building material, metallurgy, powder,environment protection and so on more than 10 fields

We have partner in Australia,Brazil,India,Singapore,South Africa,Indonesia and also the products exported to USA,German,Japan,Italy and so on over 20 countries.

Quality is our life,in order to guarantee the quality of products,HUATE takes the lead to pass through the GB/T19001-ISO9001:2000 international quality system certificate.

As our motto"cooperate and innovate to persuit excellent",we are seeking partners from all over the wolrd, if you get interested in our products ,we will be glad that you pay a visit to our company.

We offer scientific research, engineering design,manufacture of equipment, and our professional engineers are avaliable overseas production installment, adjustment and after sales support ,even operation training for your native worker. We are committed to building long-term customer cooperation relationship.
