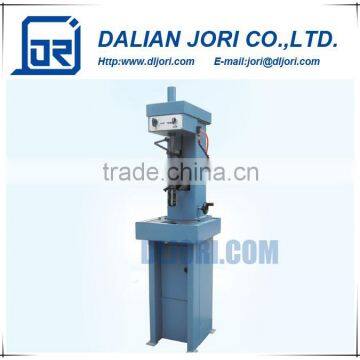

SHM100 Portable Motocycle Vertical Engine Cylinder Honing Machine
- 50 Unit / Units per Month
- Shanghai Port China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
SBM100 Portable Motocycle Vertical Engine Cylinder Boring Machine
-
TQZ8560 Auto Engine Rebuilding Valve Seat Boring Machine
-
OTCL450A High Quality On Car Brake Disc Cutting Lathe Machine
-
T8216 Engine Rebuild Connecting Rod Bushing Hole Con-rod Boring Machine
-
C9372 Brake Drum/Disc Cutting Lathe Machine
-
3MB9817 China Best Price for Sale Engine Rebuilding Cylinder Honing Machine
Product Details
Weight | 117kg |
Product Description
SHM100 Portable Motocycle Vertical Engine Cylinder Honing Machine
Features:
SBM100 it is mainly used for automotive , light truk ,motorcycle, marine&small engine Applications.
Specification:
Model | SHM100 |
Max. honing Diameter | 100mm |
Min. honing Diameter | 36mm |
Max. alternative stroke of the spindle | 185mm |
Distance between upright and spindke axis | 130mm |
Min.distance between fastening brackets and bench | 170mm |
Max.distance between fastening brackkets and bench | 220mm |
Spindle rotation speed | 90/190rpm |
Spindle maching infeed speed | 0.3/0.15 kw |
Refrigerating system motor | 0.09kw |
Supply voltages(±5%) | 380/400v |
Supply frequency(±1%) | 50HZ |
Length | 400mm |
Width | 580mm |
Height | 1600mm |
Weight | 117kg |
Accessories:

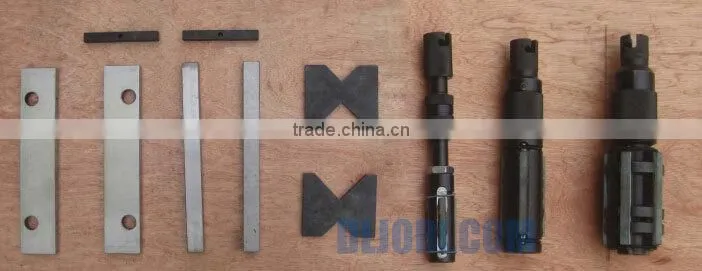

Honing Head: MFQ40 (40-60mm), MFQ60 (60-80mm), MFQ80 (80-120mm)
