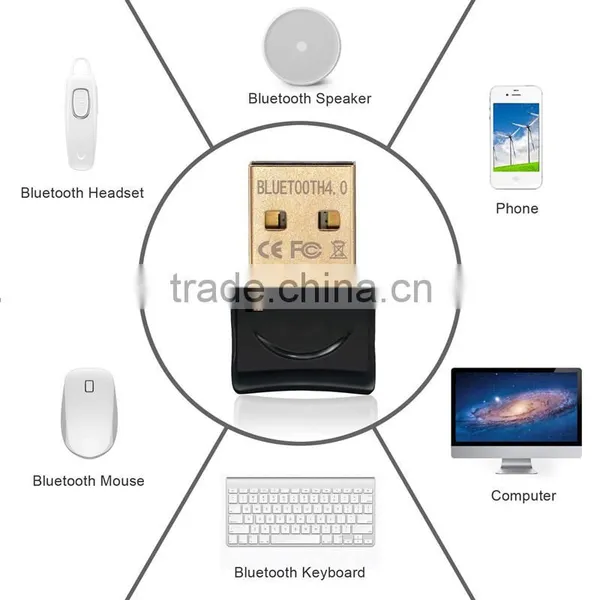

bluetooth low enery usb dongle
Bluetooth v4.0 Specification
Features
Fully qualified Bluetooth v4.0 specification system
Support for Bluetooth v3.0 only available with CSR8510
Dual-mode Bluetooth /Bluetooth low energy
Draft Bluetooth low energy HID boot mode support
Full-speed Bluetooth operation with full piconet and scatternet support
Integrated balun
No external regulators required for USB supply operation
Full- speed USB 2.0 interface
WLAN coexistence interface
Green (RoHS compliant and no antimony or halogenated flame retardants)
Design optimised for low-cost PCB manufacture
Physical Interfaces
Full-speed (12Mbps) USB 2.0 interface
Bluetooth V4.0 Dongle Specification
Key Features :
Bluetooth V4.0 Class2 (also compliant Bluetooth 2.1+EDR)
OS supported: windows 7,8,10 vista, XP
Plug and play
Dual-mode Bluetooth low energy radio USB dongle
Full speed USB 2.0 interface
Bluetooth end product
Bluetooth low energy Support Heart rate belt, Find me , Proximity , Generic Attribute Profile
Bluetooth 2.1+EDR Support A2DP, AVRCP, DUN-GW, HSP , HFP A2DP AVTCP, FTP, OPP, Audio-GW, FAX, BPP and tec.
RoHS compliant BQB, CE, CE and FCC
General Specification:
Bluetooth Specification | |||
Standard |
Bluetooth V4.0 |
||
Profiles |
Bluetooth low energy Dual-mode Bluetooth |
||
Frequency Band |
2.402G-2.480G |
||
Sensitivity |
-86dBm@.01%BER |
||
RF TX Prower |
+6dBm |
||
Prower | |||
Supply Voltage |
5V DC(MAX5.75V) |
||
Working Current |
Depends on profiles, 22mA typical |
|
|
Standby Current (Connected ) |
0.4uA |
|
|
Operating Environment |
|
||
Temperature |
-20℃ to +70℃ |
|
|
Humidity |
10%-90% Non- Condensing |
|
|
Certifications |
BQB/FCC/CE |
|
|
Environmental RoHS Compliant |
|
||
Product Description:
Bluetooth V4.0
Support network, dial-up , fax . LAN access
Operating system: windows98, 2000, Vista, windows7/8/10
Universal serial USB interface:USB2.0/3.0
Transmission speed:3mbps
Receiving/sending range:10-20m
Main Features:
Bluetooth low energy wireless USB adapter
Dual-mode bluetooth transmission
Low-power and selectable 1.2/3.6v input/output
Support bluetooth voice and data
Support multi-language
Wireless local area network share interface
