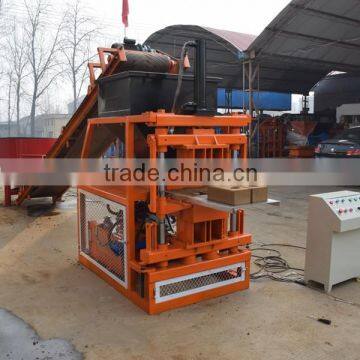

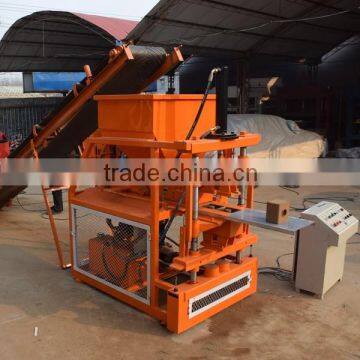

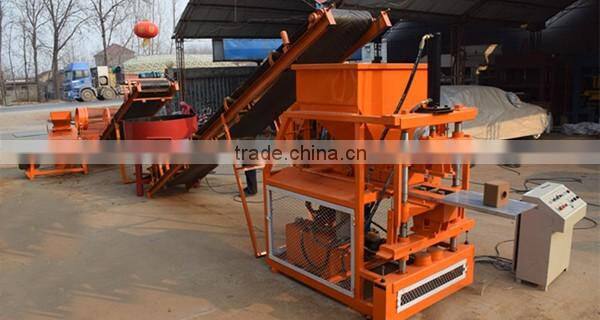

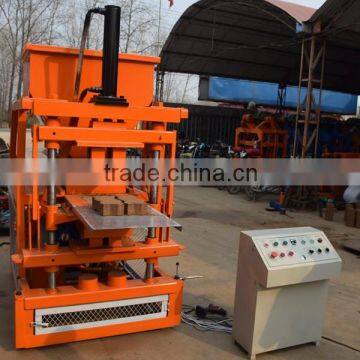

Zy2-10 Automatic Compressed Earth Block Machine Small Automatic Cement Interlock Brick Machine

Zy2-10 Automatic Compressed Earth Block Machine Small Automatic Cement Interlock Brick Machine photo-1
Zy2-10 Automatic Compressed Earth Block Machine Small Automatic Cement Interlock Brick Machine photo-2
Zy2-10 Automatic Compressed Earth Block Machine Small Automatic Cement Interlock Brick Machine photo-3
Zy2-10 Automatic Compressed Earth Block Machine Small Automatic Cement Interlock Brick Machine photo-4
Zy2-10 Automatic Compressed Earth Block Machine Small Automatic Cement Interlock Brick Machine photo-5
Zy2-10 Automatic Compressed Earth Block Machine Small Automatic Cement Interlock Brick Machine photo-6
US$ 8,000 - 9,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Interlock Block Making Machine
Brick Raw Material:
Clay
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Interlock Block Making Machine
Brick Raw Material Clay
Processing Brick Production Line
Method Hydraulic Pressure
Automatic Yes
Capacity 6500pcs/8h
Place of Origin Shandong, China
Brand Name ZEYU
Model Number ZY2-10
Voltage 380V/50HZ
Power 5.5KW
Dimension(L*W*H) 1000*1200*2100
Certification ISO9001
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas

zy2-10 Automatic Compressed Earth Block Machine Small automatic Cement Interlock Brick Machine



clay block machine

zy2-10 Automatic Compressed Earth Block Machine Small automatic Cement Interlock Brick Machine

ZY2-10 interlocking soil block machine is our newest clay and cement brick making machine.it is automatic operation machine.its material feeding.mould pressing and mould lifting automaticlly.

You can chose diesel engine or motor power.

zy2-10 Automatic Compressed Earth Block Machine Small automatic Cement Interlock Brick Machine

 Technical Parameters Of zy2-10 Automatic Compressed Earth Block Machine Small automatic Cement Interlock Brick Machine

ZY2-10 interlocking soil brick machine
Overall size1000(L)×1000(W)×1800(H)mm
Shipping Cycle7-10s
Power source5KW Motor / 12HP diesel engine
Electrical380v/50HZ (Adjustable)
Hydraulic pressure15-22 MPa
Weight850 kg
Row materialLaterite,yellow or red soil,sand,cement,water and so on





zy2-10 Automatic Compressed Earth Block Machine Small automatic Cement Interlock Brick Machine

zy2-10 Automatic Compressed Earth Block Machine Small automatic Cement Interlock Brick Machine

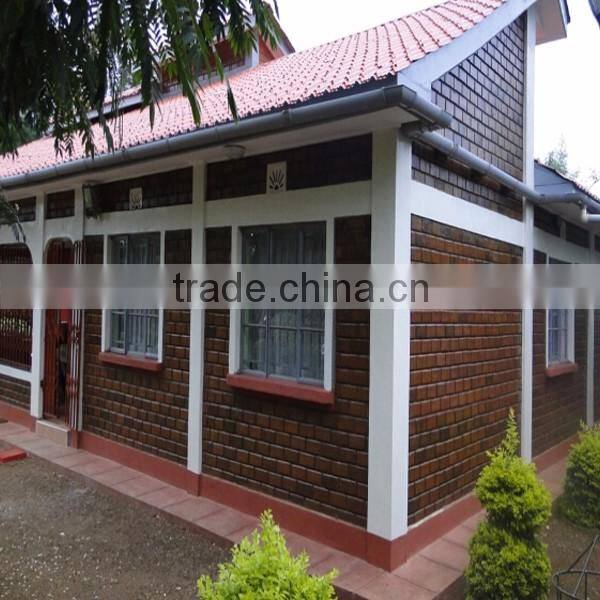

Application of zy2-10 Automatic Compressed Earth Block Machine Small automatic Cement Interlock Brick Machine

zy2-10 Automatic Compressed Earth Block Machine Small automatic Cement Interlock Brick Machinezy2-10 Automatic Compressed Earth Block Machine Small automatic Cement Interlock Brick Machine

zy2-10 Automatic Compressed Earth Block Machine Small automatic Cement Interlock Brick Machine



Packaging & Shipping

Shipping: within 15-20 work days.

zy2-10 Automatic Compressed Earth Block Machine Small automatic Cement Interlock Brick Machine



Company Information

1. We have the following products:

A. concrete batching plant including,

B. bathcing machine,

C. mixer,

D. cement silo,

E. screw conveyor.

F. block machine

2. Our advantages:

A. we have ISO and BV cetificate,

B. we have 14 years experience,

C. we have 25 engineers to design special concrete plants for our customers,

D. after-sale service: installation, debugging, opertors trainning and spare parts supply.



zy2-10 Automatic Compressed Earth Block Machine Small automatic Cement Interlock Brick Machine

zy2-10 Automatic Compressed Earth Block Machine Small automatic Cement Interlock Brick Machine

Certificates

zy2-10 Automatic Compressed Earth Block Machine Small automatic Cement Interlock Brick Machinezy2-10 Automatic Compressed Earth Block Machine Small automatic Cement Interlock Brick Machine

FAQ

All details can be customized exactly according to your requirements, please leave a message and I will reply you in 24 hours. I will try my best to satisfy you well as per your request!

 zy2-10 Automatic Compressed Earth Block Machine Small automatic Cement Interlock Brick Machine
