Electric Power Ride-on Stacker RS1645
- 10000 Unit / Units per Month
- shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | Cheuk's | Model Number | RS1645 | |
| Type | Other, stacker | Power Souce | AC Motor | |
| Rated Loading Capacity | 1.6T | Max. Lifting Height | 5.5M | |
| Min. Lifting Height | 85mm | Fork Length | 1150mm | |
| Fork Width | 575mm | Overall Dimensions | 2035*978*2500mm | |
| Certification | CE | After-sales Service Provided | No overseas service provided |
Product Description

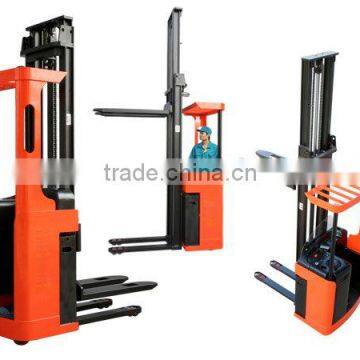

The Product Intro of Electrical Hydraulic Stacker RS1645
RS16 stand-on stacker is designed for a high turn round of goods in racking, when loading and unloading, as well as for the horizontal transport of goods up to 1600kg. Normal commercial pallets can be handled. The RS16 is also very flexible when used for order picking and as a working / lifting table.
Effortless power-assisted-steering
Powerful and economic with maintenance-free 3-phase AC drive motor
Lower life cycle costs
High capacity at high lifting height
Efficient and quiet hydraulics
Ergonomic operator cab
Long life control lever
Danfoss drive wheels
Danfoss controller
Hydraulic motor unit from Europe
This specification sheet according to VDI regulation 2198 only provides technical values for the standard stacker. Non-standard types, additional equipment,etc. could produce other values. Right reserved for technical changes and improvements.
RS16 Stand-on stacker
The Specification of Electrical Hydraulic Stacker RS1645
Residual Capacity at different lifting height
1KG=2.2LB 1INCH=25.4MM
| Up to h3 mm | ACTUAL CAPACITY (Q) kg | ACTUAL CAPACITY EITH SIDE SUPPORT | ||
| 2900 | 1600 | 1350 | 1600 | 1350 |
| 3600 | 1000 | 850 | 1200 | 1000 |
| 4000 | 800 | 650 | 1000 | 850 |
| 4500 | 600 | 500 | 800 | 650 |
| 5500 | 650 | 550 | ||
| Load centre distance (C)mm | 600 | 700 | 600 | 700 |
1KG=2.2LB 1INCH=25.4MM
| Characteris tics | 1.1 | Model of manufacture | unit | RS1632 | RS1636 | RS1645 |
| 1.2 | Power supply(electric,diesel, petrol,gas,mains electric) | electric | ||||
| 1.3 | Type of operation(hand pedestrian, stand on, rider seated, order picker) | stand on | ||||
| 1.4 | Capacity /rated load | QKg | 1600 | |||
| 1.5 | Load center distance | Cmm | 600 | |||
| 1.6 | Load distance | Xmm | 765 | |||
| 1.7 | Wheelbase | ymm | 1435 | |||
| Weights | 2.1 | Weight(including battery) | Kg | 1367 | 1392 | 1450 |
| 2.2 | Axle loadings laden drive end/load end | Kg | 1290/1760 | |||
| 2.3 | Axle loadings unladen drive end/load end | Kg | 1110/340 | |||
| Wheels types | 3.1 | Tyres(rubber, Vulkollan, pneumatic, polyurethane) | rubber/polyurethane | |||
| 3.2 | Tyre size drive end | mm | Φ254x82 | |||
| 3.3 | Tyre size load end | mm | Φ80x70 | |||
| 3.4 | Castor wheels(dimensions) | Φ150x60 | ||||
| 3.5 | Wheels, number(x=drive wheel) drive end/load end | 1x -1/ 4 | ||||
| 3.6 | Track width(front) drive end | b10mm | 635 | |||
| 3.7 | Track width(rear) load end | b11mm | 395 | |||
| Dimensions | 4.1 | Closed mast height | h1mm | See mast table | ||
| 4.2 | Free lift | h2mm | See mast table | |||
| 4.3 | Lift height | h3mm | See mast table | |||
| 4.4 | Extended mast height | h4mm | See mast table | |||
| 4.5 | Overhead load guard(cab)height | h6mm | 2245 | |||
| 4.6 | Standing height | h7mm | 230 | |||
| 4.7 | Height of steering wheel | h14mm | 1255 | |||
| 4.8 | Fork height lowered | h13mm | 85 | |||
| 4.9 | Overall length | l1mm | 2035 | |||
| 4.10 | Length to front face of fork | l2mm | 880 | |||
| 4.11 | Overall width | b1mm | 978 | |||
| 4.12 | Fork dimensions | s/e/lmm | 60/180/1150 | |||
| 4.13 | Fork carriage with | b3mm | 645 | |||
| 4.14 | Overall fork width | b5mm | 575 | |||
| 4.15 | Floor clearance under mast,laden | m2mm | 25 | |||
| 4.16 | Working aisle with 800x1200 pallet lengthwise | Astmm | 2246 | |||
| 4.17 | Outer turning radius | Wamm | 1655 | |||
| Performance | 5.1 | Travel Speed laden/unladen | km/h | 8.8/9.2 | ||
| 5.2 | Lifting speed laden/unladen | mm/s | 145/215 | |||
| 5.3 | Lowering speed laden/unladen | mm/s | 260/270 | |||
| 5.4 | Gradeability laden/unladen | % | 7/15 | |||
| 5.5 | Brakes | electric | ||||
| Electric Motor | 6.1 | Drive motor | kw | 3.0(AC) | ||
| 6.2 | Lifting motor | kw | 3 | |||
| 6.3 | Battery acc.to DIN 43531/35/36 A,B,C,no 1) | 43531 B | ||||
| 6.4 | Battery voltage, norminal capacity K5 1) | V/Ah | 24/360 | |||
| 6.5 | Battery weight | Kg | 310 | |||
| 6.6 | Battery dimensions l/w/h 1) | mm | 930/210/750 | |||
| Other | 7.1 | Type of drive control | MOSFET Control AC | |||
| 7.2 | Noise peak at operator’s ears | dB(A) | <70 | |||
Shanghai Cheuk's Logistics Technology Co., Ltd.,which is subordinate to Cheuksgroup, is specializing in the developing, manufacturing and marketing of logistics, lifting and hydraulic machinery. We have abundant product line, forklift truck, pallet truck, stacker, table lift, tail gate, tow trackor, aerial work platform,plastic hand truck, hydraulic tools
and so on.
Our sales and network covers all over the world, also R&D center in Germany and America. We keep a really good relationship with our abroad partners. We based in China, supply you with our standard products of reliable quality, reasonable price. Also,the OEM service is available according to your requirements. Give us an opportunity, we will "Lifting your future"!
