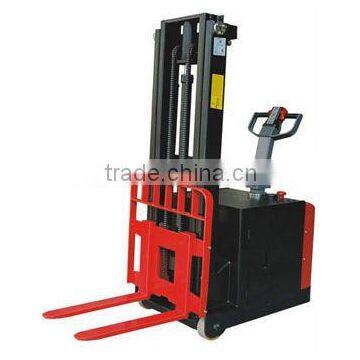

0.5 Ton-1.0 Ton Electric Power Reach Stacker for Sale

Name: 0.5 Ton-1.0 Ton Electric Power Reach Stacker for Sale
Brand: Cheuklift
SKU: 131465365
Availability: InStock

Shanghai Cheuklift Technology Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

Cheuklift

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Brand Name Cheuklift

Model Number CLPE

Dimension(L*W*H) pls check the below

Certification CE

Warranty 12 Months

After-sales Service Provided No overseas service provided

0.5 ton-1.0 ton Electric power reach stacker for sale

Product Intro

Item/Type	Unit	CLPE0516	CLPE0525	CLPE1016	CLPE1025	ClPE1030
Load capacity	Kg	500	500	1000	1000	1000
Lift height	mm	1600	2500	1600	2500	3000
Fork length	mm	600/800	600/800	600/800	800/1000	800/1000
Outside width between fork	mm	650/800	650/800	650/800	800/1000	800/1000
Load centrer	mm	300/400	300/400	300/400	400/500	400/500
Min.outside turning radius	mm	1100	1100	1100	1400	1400
Fork tilt forward(angle)	%				2	2
Traveling speed with loading	Km/h	5.3	5.3	5.3	5.3	5.3
Travel speed without loading	Km/h	6	6	6	6	6
Traveling motor	W	750	750	750	1100	1100
Lifting motor	W	700	700	700	2200	2200
Battery	V/Ah	24V/120Ah		24V/210Ah
Charger	V/A	24/20A		24/30A
Overall length	mm	1760		2060
Overall width	mm	670		820
Overall height	mm	2020	1785	1785	1785	2035
Self Weight	Kg	720	800	900	1200	1250
