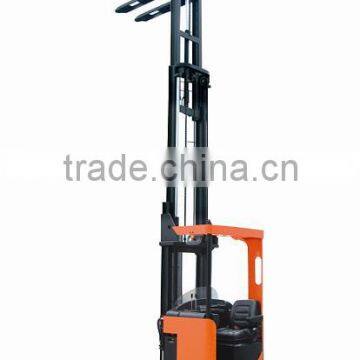

Electric stacker RSS1645
Negotiable
/ Set
1 Set(Min.Order)
- 10000 Set / Sets per Month
- shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | Cheuk's | Model Number | RSS1645 | |
| Type | Other, Power stacker | Power Souce | AC Motor | |
| Rated Loading Capacity | 1.6t | Max. Lifting Height | 4.5m | |
| Min. Lifting Height | 85mm | Fork Length | 1150mm | |
| Fork Width | 180mm | Overall Dimensions | Pls check | |
| Certification | CE | After-sales Service Provided | No overseas service provided |
Product Description
The Specification of Power Stacker RSS16 series
| Characterris tics | 1.1 | Model of manufacture | unit | RSS1632 | RSS1636 | RSS1645 |
| 1.2 | Power supply(electric,diesel,petrol,gas ,mains electric) | electric | ||||
| 1.3 | Type of operation(hand,pedestrian,stand on,rider seated, order-picker) | Ride seated | ||||
| 1.4 | Capacity /rated load | Q Kg | 1600 | 1600 | 1600 | |
| 1.5 | Load center distance | C mm | 600 | 600 | 600 | |
| 1.6 | Load distance | X mm | 765 | 765 | 765 | |
| 1.7 | Wheelbase | y mm | 1478 | 1478 | 1478 | |
| Weights | 2.1 | Weight(including battery) | Kg | 1543 | 1568 | 1626 |
| 2.2 | Axle loading laden, drive end/load end | polyurethane | ||||
| 2.3 | Axle loadings unladen, drive end/load end | mm | Φ254x82 | Φ254x82 | Φ254x82 | |
| Wheels, Chassis | 3.1 | Tyres(Vulkollan,pneumatic,polyurethane) | mm | Φ85x70 | Φ85x70 | Φ85x70 |
| 3.2 | Tyre size drive end | Φ150x60 | Φ150x60 | Φ150x60 | ||
| 3.3 | Tyre size load end | 1x-1/4 | 1x-1/4 | 1x-1/4 | ||
| 3.4 | Castor wheels(dimensions) | b10 mm | 712 | 712 | 712 | |
| 3.5 | Wheels, number (x=driven wheels)drive end/ load end | b11 mm | 395 | 395 | 395 | |
| 3.6 | Track width(front) | h1 mm | See mast table | |||
| 3.7 | Track width(rear) | h2 mm | See mast table | |||
| Basic Dimensions | 4.1 | Closed mast height | h3 mm | See mast table | ||
| 4.2 | Free lift | h4 mm | See mast table | |||
| 4.3 | Lift height | h6 mm | 2160 | 2160 | 2160 | |
| 4.4 | Extended mast height | h7 mm | 960 | 960 | 960 | |
| 4.5 | Height of steering wheel | h14 mm | 1180 | 1180 | 1180 | |
| 4.6 | Fork height lowered | h13 mm | 85 | 85 | 85 | |
| 4.7 | Overall length | l1 mm | 2226 | 2226 | 2226 | |
| 4.8 | Length to face of forks | l2 mm | 1076 | 1076 | 1076 | |
| 4.9 | Overall width | b1 mm | 1050 | 1050 | 1050 | |
| 4.10 | Fork dimensions | s/e/l mm | 60/180/1150 | |||
| 4.11 | Fork carriage width | b3 mm | 645 | 645 | 645 | |
| 4.12 | Overall fork width | b5 mm | 575 | 575 | 575 | |
| 4.13 | Floor clearance under mast,laden | m2 mm | 25 | 25 | 25 | |
| 4.14 | Working aisle with 800x1200 pallet lengthwise | Ast mm | 2630 | 2630 | 2630 | |
| 4.15 | Outer turning radius | Wa mm | 1840 | 1840 | 1840 | |
| Performance Data | 5.1 | Speed laden/unladen | km/h | 8.5/9 | 8.5/9 | 8.5/9 |
| 5.2 | Lift speed, laden/unladen | mm/s | 145/215 | 145/215 | 145/215 | |
| 5.3 | Lowering speed, laden/unladen | mm/s | 260/270 | 260/270 | 260/270 | |
| 5.4 | Gradeability , laden/unladen | % | 6/10 | 6/10 | 6/10 | |
| 5.5 | Brakes | electric | ||||
| E-Motor | 6.1 | Drive motor | kw | 3.0(AC) | 3.0(AC) | 3.0(AC) |
| 6.2 | Lifting motor | kw | 3 | 3 | 3 | |
| 6.3 | Battery acc. to DIN43531/35/36A,B,C,no | 43531 B | 43531 B | 43531 B | ||
| 6.4 | Battery voltage,norminal capacity k5 | V/Ah | 24/480 | 24/480 | 24/480 | |
| 6.5 | Battery weight | Kg | 460 | 460 | 460 | |
| 6.6 | Battery dimensions I/W/h | mm | 1010/210/750 | |||
| Others | 7.1 | Type of drive control | MOSFE MOSFET Control AC | |||
| 7.2 | Noise peak at operator’s ears | dB(A) | <70 | <70 | <70 | |
