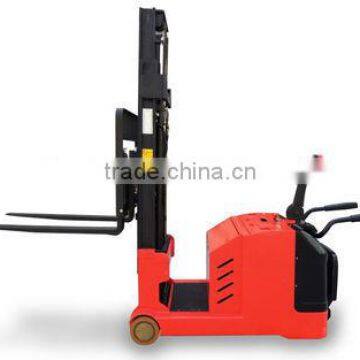

Accumulator Stacker with 1500kg Capacity--CLP15 Series
- 10000 Set / Sets per Month
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | Cheuks | Model Number | CLP15 | |
| Dimension(L*W*H) | pls check the below | Certification | CE | |
| Warranty | 1 Year | After-sales Service Provided | No overseas service provided |
Product Description
| Characterics | 1.1 | Model | Unit | CLP1525 | CLP1530 | CLP1533 |
| 1.2 | Drive | Accumulator | ||||
| 1.3 | Type of operation | standing | ||||
| 1.4 | Rated capacity | Q(Kg) | 1500 | 1500 | 1500 | |
| 1.5 | Load center distance | c(mm) | 500 | 500 | 500 | |
| 1.6 | Wheelbase | Y(mm) | 1174 | 1174 | 1174 | |
| Weights | 2.1 | Overall weight | kg | 1686 | 1786 | 1886 |
| Wheels | 3.1 | Tyre material | PU | |||
| 3.2 | Tyre size(front) | 210 | 210 | 210 | ||
| 3.3 | Tyre size(rear) | 124 | 124 | 124 | ||
| 3.4 | Drive wheel | 230 | 230 | 230 | ||
| 3.5 | Track width,front | b10(mm) | 670 | 670 | 670 | |
| 3.6 | Track width,rear | b11(mm) | 608 | 608 | 608 | |
| Dimensions | 4.1 | Lowered mast height | h1(mm) | 1790 | 2040 | 2190 |
| 4.2 | Lifting height | h3(mm) | 70~2500 | 70~3000 | 70~3300 | |
| 4.3 | Overall length | l1(mm) | 2640 | 2640 | 2640 | |
| 4.4 | Body width | b1Ib2(mm) | 850 | 850 | 850 | |
| 4.5 | Fork length | Slell(mm) | 1070 | 1070 | 1070 | |
| 4.6 | Width over forks | b5(mm) | 200~810 | 200~810 | 200~810 | |
| 4.7 | Turning radius | Wa(mm) | 1573 | 1573 | 1573 | |
| Performance | 5.1 | Travel speed laden/unladen | Km/h | 5.3/6.0 | 5.3/6.0 | 5.3/6.0 |
| 5.2 | Lift speed laden/unladen | mm/s | 70 | 70 | 70 | |
| 5.3 | Lowering speed laden/unladen | mm/s | 100 | 100 | 100 | |
| 5.4 | Brake | mm | 1 | 1 | 1 | |
| Motor | 6.1 | Drive motor power | kW | 1.6 | 1.6 | 1.6 |
| 6.2 | Lift motor power | kW | 2.2 | 2.2 | 2.2 | |
| 6.3 | Accumulator voltage/rated capacity | V/Ah | 24/210 | 24/210 | 24/210 | |
| 6.4 | Accumulator weight | Kg | 210 | 210 | 210 | |
| 6.5 | Accumulator dimensions(L×W×H) | mm | 650x200x540 | 650x200x540 | 650x200x540 | |
Shanghai Cheuk's Logistics Technology Co., Ltd.,which is subordinate to Cheuksgroup, is specializing in the developing, manufacturing and marketing of logistics, lifting and hydraulic machinery. We have abundant product line, forklift truck, pallet truck, stacker, table lift, tail gate, tow trackor, aerial work platform,plastic hand truck, hydraulic tools
and so on.
Our sales and network covers all over the world, also R&D center in Germany and America. We keep a really good relationship with our abroad partners. We based in China, supply you with our standard products of reliable quality, reasonable price. Also,the OEM service is available according to your requirements. Give us an opportunity, we will "Lifting your future"!
