Inform PPS 3100 UPS (Pyramid DSP-T Series)

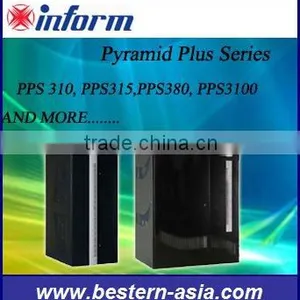

Inform PPS 3100 UPS (Pyramid DSP-T Series) thumbnail-1
Inform PPS 3100 UPS (Pyramid DSP-T Series) photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Turkey
Brand Name:
Inform
Model Number:
PPS 3100
Contact Supplier Request Quote Chat Now
Besternasia Electronics Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Turkey
Brand Name Inform
Model Number PPS 3100
Phase Three Phase
Protection Other
Weight 815kgs
Output Voltage 380V / 400V / 415V 3 phase
Type On-line
Application Other, Telecom, industrial control,Railway

Specifications

1. Authorized Distributor in CHINA
2. IGBT Rectifier
3. Real DSP Controlled
4. Input Power Factor Correction
5. Low Harmon

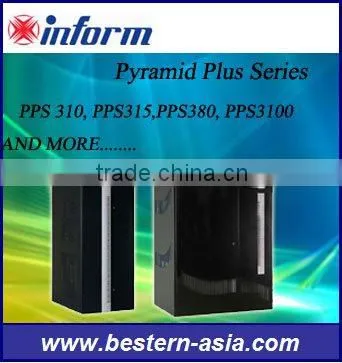

PYRAMID PLUS SERIES

Uninterruptible Power Systems
On-Line “Double Conversion” Technology 3 Phase in – 3 Phase out
10 to 300kVA

  • On-line double conversion technology
  • State of the art IGBT & PWM technology
  • Evolution and redundancy guaranteed by Parallel Systems
  • Reliability of the battery ensured by Info-Charger
  • Built-in maintenance and static by pass
  • Galvanic isolation and/or modification for special voltages
  • Comprehensive communication with computer & network systems and SNMP solutions
  • Communication with building management systems
  • Expandable and variable battery blocks
  • 12 pulse rectifier options

    •



    MODEL PPS 310 PPS 315 PPS 320 PPS 330 PPS 340 PPS 360 PPS 380 PPS 3100 PPS 3120 PPS 3160 PPS 3200 PPS 3250 PPS 3300
    Output Power kVA 10 15 20 30 40 60 80 100 120 160 200 250 300
    Power Factor 0.8 lagging
    INPUT
    Voltage 380V / 400V / 415V 3 phase
    Tolerance ±15%
    Frequency 50 / 60Hz
    Tolerance ±10%
    OUTPUT
    Power Factor 0.8
    Voltage 380V / 400V / 415V 3 phase
    Tolerance (static condition) ± 1%
    Tolerance (dynamic condition) ± 5%
    Harmonic Distortion rate <3%
    On Linear Load
    Harmonic Distortion rate <5%
    on non-linear load
    Crest Factor 3
    Frequency 50 or 60 Hz
    Frequency Tolerance ± 0.2%
    Overload
    100% - 125% load 10 min
    125% - 150% load 1 min
    Overall Efficiency >=90%
    BATTERY
    Type Maintenance-free lead acid batteries
    Quantity 30pcs 12V Batteries 32pcs 12V Batteries
    DISPLAY
    LED Display Line, Battery,Bypass,Inverter,Maintenance switch,output switch indicators
    LCD Display Load%, Output voltage&frequency, Input and bypass voltages, Battery voltage and current, Temperature, Alarm messages
    Protection Level IP 20
    STANDARDS
      EN 62040-11 (safety), EN 62040-2 (EMC)
