Inform PDS 500 UPS (Pyramid EX Series)

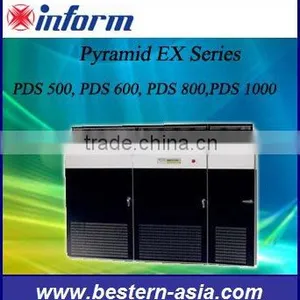

Inform PDS 500 UPS (Pyramid EX Series) thumbnail-1

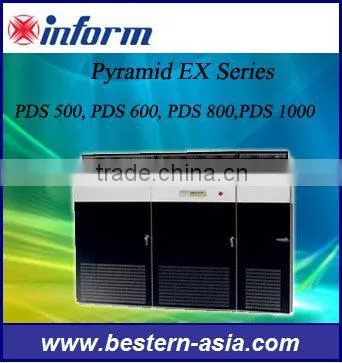

Inform PDS 500 UPS (Pyramid EX Series) photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Turkey
Brand Name:
Inform
Model Number:
PDS 500
Contact Supplier Request Quote Chat Now
Besternasia Electronics Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Turkey
Brand Name Inform
Model Number PDS 500
Phase Three Phase
Protection Other
Weight 2900kgs
Output Voltage 380V / 400V / 415V 3 Phase+Neutral+PE
Type On-line
Application Other, Telecom, industrial control,Railway

Specifications

1. Authorized Distributor in CHINA
2. True on-line double conversion technology
3. Full front access
4. IGBT & PWM Technolo

 PYRAMID EX SERIES

Uninterruptible Power Systems
True On-Line Technology 3 Phase in 3 Phase out ( 500 to 1000 kVA )

  • True on-line double conversion technology with high efficiency
  • State of the art IGBT & PWM Technology
  • Built - in maintenance & Automatic by-pass
  • Evolution and redundancy guaranteed by Parallel Systems ( up to 4 units )
  • User Friendly LCD Panel helps to feature the ups easily.
  • Full front access to whole internal components reduces the repair&maintenance time.
  • Expandable and variable battery blocks
  • Communication Interface and Monitoring Software
  • 12 pulse rectifier option

    •



    MODEL PDS 500 PDS 600 PDS 800 PDS 1000
    Output Power (kVA) 500 600 800 1000
    Output Power (kW) 400 480 640 800
    INPUT
    Voltage 380V / 400V / 415V 3 Phase+Neutral+PE
    Tolerance ± 15%
    Frequency 50 - 60 Hz
    Tolerance ± 10%
    DC Ripple Voltage ± 1%
    DC Ripple Current max 2% of battery capacity defined in Amps
    OUTPUT
    Power Factor 0.8
    Voltage 380V / 400V / 415V 3 Phase+Neutral+PE
    Tolerance
    static condition
    step load (0%-100%-0%)
    step load (0%-50%-0%)
    ±1%
    ±8% recovering within tolerance into 2 cycles
    ±3% recovering within tolerance into 2 cycles
    Total Harmonic Distortion < 2% (@ 100% linear load)
    Crest Factor 3:1 with 80% load
    Frequency 50 or 60 Hz.
    Frequency tolerance (free running) ± 0.01%
    Frequency tolerance (synchronized with utility) ±5%
    Overload
    125% load
    150% load
    10 min
    1 min
    Overall Efficiency 0.925
    Output Neutral Rating 2
    BATTERY
    Type Maintenance-free lead acid batteries
    Quantity 32 pcs 12V Blocks
    Nominal DC Voltage 384VDC
    Float Voltage at 20C 436VDC
    Automatic and Manual Battery Test Standard
    STATIC BYPASS
    Input Configuration Common with Rectifier or Seperate
    Transfer Limits ± 10% of Nominal Adjusted Output Voltage
    Overload Capability Continous at 110%
    Short Circuit Capability 5min @ 200% and half cycle @ 1000% (non repetitive)
    ENVIRONMENT
    Audible Noise <68dBA <70dBA
    Operating Temperature 0-40°C
    Relative Humidity (non condensing) 0-95%
    Protection Class IP 20
    PHYSICAL SPECIFICATIONS

    Weight Without Battery (kg)

    		 2900 3100 3800 4000
    Dimensions (mm) WxDxH 3400*1000*1800 3400*1400*1800 4200*1400*1800
    STANDARDS
      EN 62040-1-1 (safety), EN 62040-2(EMC), EN 62040-3 (VFI-SS-111)
