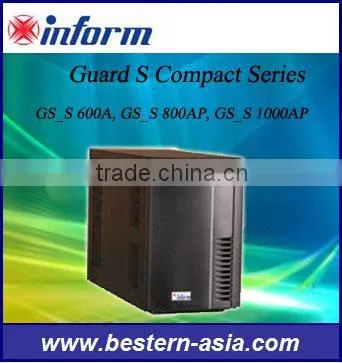

Inform GUARD_S 800 AP UPS

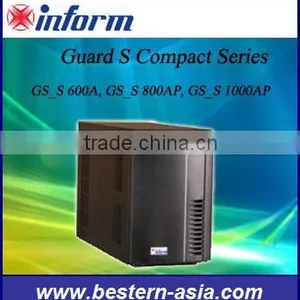

Inform GUARD_S 800 AP UPS thumbnail-1
Inform GUARD_S 800 AP UPS photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Turkey
Brand Name:
Inform
Model Number:
GUARD_S 800 AP
Contact Supplier Request Quote Chat Now
Besternasia Electronics Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Turkey
Brand Name Inform
Model Number GUARD_S 800 AP
Phase Other, Line Interactive
Protection Other, Short circuit and overload protection,Lightning and surge protection
Weight 8.5kgs
Output Voltage 12 VDC
Type Line Interactive
Application Other, Industrial Controal and Telecom

Specifications

1. Inform Authorized Distributor In CHINA
2. Automatic Voltage Regulation
3. Cold Start Function
4. Auto restart

GUARD S COMPACT SERIES

Uninterruptible Power Systems
Line Interactive Technology
600VA to 3000VA (Tower Model), 2000VA to 3000VA (Rack Model)

  • Microprocessor controlled Line Interactive Technology
  • Boost and buck Automatic Voltage Regulation (AVR)
  • Advanced Battery Management (ABM)
  • Short circuit and overload protection
  • Lightning and surge protection
  • Online, Battery, Fault status LEDs
  • Cold Start Function
  • Communication Port and Remote Monitoring Software *
  • Tel/Modem Internet surge protection *
  • Compact size and user friendly operation

    • * Available at AP Models only



    MODEL
    GUARD_S 600 A/AP GUARD_S 800 AP GUARD_S 1000 AP GUARD_S 1500 AP GUARD_S 2400 AP GUARD_S 3000 AP
    INPUT
    Capacity (VA)
    600 800 1000 1500 2400 3000
    Voltage 230 or 220V, ±%25
    Frequency 50 or 60 Hz ±5Hz (auto sensing)
    OUTPUT
    Power Factor 0.6
    Voltage (On battery) Simulated Sinewave 230 or 220V ±%10
    Frequency (On battery) 50 or 60 Hz ±%1
    Voltage Regulation (AVR) AVR automatically increase output voltage 15% above input voltage if -9% to -25% of nominal
    AVR automatically decrease output voltage 13% below input voltage if +9% to +25% of nominal
    Transfer Time 4 ms.
    Outlets
    IEC Version
    Schuko Version
    3pcs IEC
    1pc Schuko    		 6pcs IEC
    2pcs Schuko    		 4pcs IEC
    2pcs Schuko
    BATTERY
    Type Maintanence - Free lead acid batteries
    Recharge Time 6-8 hours (to 90% of full capacity)
    Voltage
    12VDC 24VDC 48VDC
    DISPLAY
    LED Display
    2 LEDs for Line/Back up and Battery Low/Fault 4 LEDs for Line, Back up, fault and Overload 5 LEDs for line, Overload, AVR, Battery
    PROTECTION
      Short Circuit, Overload, Noise Suppression, Spike, Battery Overdischarge, Modem/Network
    (AP Models only)
    COMMUNICATION
    Interface (Communication Ports)
    RS 232 at AP models only RS232 standard
    Software
    Present at AP model only Standard
    ENVIRONMENT
    Operating Temparature 0°C - 40°C
    Humidity %0-95 non - condensing
    Audible Noise At 1m
    <40dBA <45dBA <50dBA
    Protection Class IP20

    PHYSICAL


    Tower
