Inform Guardian 600A UPS

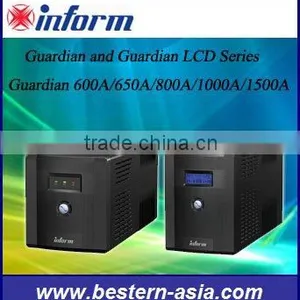

Inform Guardian 600A UPS thumbnail-1
Inform Guardian 600A UPS photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Turkey
Brand Name:
Inform
Model Number:
Guardian 600A
Contact Supplier Request Quote Chat Now
Besternasia Electronics Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Turkey
Brand Name Inform
Model Number Guardian 600A
Phase Other
Protection Other, Short Circuit and Over Load Protection
Weight 4kgs
Output Voltage 12 VDC
Type Line Interactive
Application Other, Industrial Controal and Telecom

Specifications

1. Inform Authorized Distributor In CHINA
2. Automatic Voltage Regulation
3. Cold Start Function
4. Auto restart

GUARDIAN & GUARDIAN LCD SERIES

Uninterruptible Power Systems
Line Interactive Technology 600VA to 2000VA

  • Microprocessor controlled Line Interactive Technology
  • - Boost and Buck Automatic Voltage Regulation (AVR)
  • - LCD or LED Display Panel
  • - Advanced Battery Management (ABM)
  • - Input Frequency auto sensing ( 50/60 Hz )
  • - Auto restart after mains recovery
  • - Charging during switched off mode
  • - Short circuit and overload protection
  • - Cold Start Function
  • - USB Communication Interface and Remote Monitoring Software*
  • - Modem/Phone line protection *
  • - Compact size and user friendly operation

    • MODEL GUARDIAN 600A/AP GUARDIAN 650A/AP GUARDIAN 800A/AP GUARDIAN 1000A/AP GUARDIAN 1500A/AP GUARDIAN 2000A/AP
    GUARDIAN
    LCD 600A/AP    		 GUARDIAN
    LCD 650A/AP    		 GUARDIAN
    LCD 800A/AP    		 GUARDIAN
    LCD 1000A/AP    		 GUARDIAN
    LCD 1500A/AP    		 GUARDIAN
    LCD 2000A/AP
    INPUT
    Capacity (VA) 600 650 800 1000 1500 2000
    Voltage 220V or 230V
    Input Voltage Range -25%, +30%
    Frequency 50 or 60 Hz (auto sensing)
    OUTPUT
    Power Factor 0.6
    Voltage (On battery) 220V or 230V ±10%
    Waveform (On battery) Simulated Sinewave
    Frequency (On battery) 50 or 60 Hz ±1Hz
    Voltage Regulation (AVR) AVR automatically increases output voltage 15% above input voltage if -10% to -26% of nominal
    AVR automatically decreases output voltage 15% below input voltage if +10% to +22% of nominal
    Transfer Time 2 - 6 ms.
    Outlets 1pcs Schuko 1pcs IEC 2pcs Schuko 2pcs IEC
    BATTERY
    Type Maintanence - Free lead acid batteries
    Recharge Time 6 hours (to 90% of full capacity)
    Voltage 12 VDC 24 VDC
    Back up time 5-30 minutes (depending on computer load)
    DISPLAY
    LED Display Fault, Battery Mode, AC Mode
    LCD Display
    (for Guardian LCD)    		 Input&Output voltage values, AC mode/Load Level/Battery Capacity Indicators
    PROTECTION
      Short Circuit, Overload, Battery Discharge, Overcharge, Tel/Phone line (AP Models only)
    COMMUNICATION
    Communication Interface USB port (only AP models)
    AUIDIBLE ALARMS
      Battery Mode (every 10 seconds), Low Battery (every second), Overload (every 0.5 second)
    Battery Replacement (every 2 seconds), Fault (Continous)
    ENVIRONMENT
    Operating Temp. 0-40 °C
    Humidity 0 to 90% non-condensing
    Audible Noise <40dBA
    Protection Class IP20
    PHYSICAL
    Net Weight(kg) 4 4,25 4,9 8 11,1 11,5
    Dimensions (mm) DxWxH 100x287x142 146x350x160 146x397x205
    STANDARDS
    Standards EN 62040-1-1 (safety), EN 62040-2 (EMC)
