Hangzhou High Quality 6 Core Unshield Security Alarm Cable

Name: Hangzhou High Quality 6 Core Unshield Security Alarm Cable
Brand: king cable
SKU: 131429645
Availability: InStock

Negotiable MOQ: 3000 Meters (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

king cable

Model Number:

kingcable

Lin'an Jinjin Wire & Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name king cable

Model Number kingcable

Type Coaxial

Number of Conductors 6

Product Description

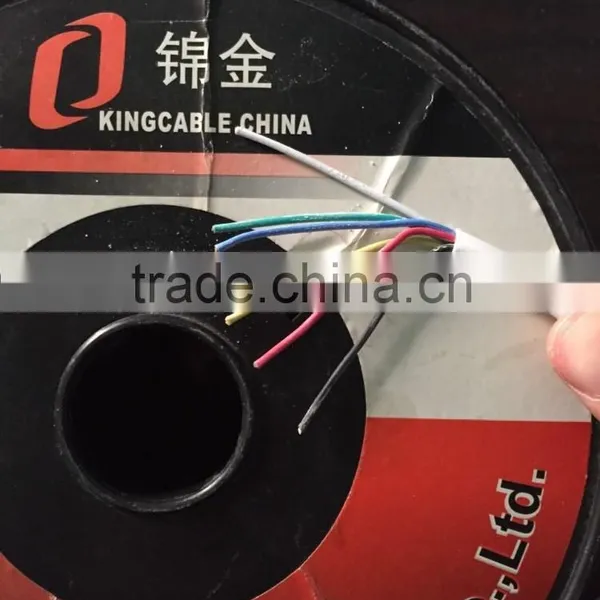

6 core unshield security cable

1.7*0.20mm or 7*0.24mm copper, tinned copper or CCA, alarm cable.
2.shield or unshield, PVC LSZH

ALARM CABLE

SECURITY CABLE

7/0.20mm stranded or 14*0.20mm, 6 cores unshield or we can produce as per buyer's request.

7*0.18mm, 7*0.20mm or 7*0.24mm copper, tinned copper or CCA, stranded, shield or unshield, good PVC, LZSH PVC

1.Conductor: bare copper or tinned copper or CCA or CCS conductor

2. Insulation:PVC-flame proof or common PVC insulation

3.Cable core: 2C, 4C, 6C, 8C, 12C, etc are available

4. Rip cord.

5.Jacked: PVC-flame proof or common PVC insulation,CMP,CM.

6. Standard packing: 100m/box, 100m/plastic spool, 305m/wooden spool

7. Application: used for alarm mechanisms or security system.

Electrical Properties:

Nom.DC Resistance per Conductor@20	6.43Ohms/Kft.nom.
CapacitanceBetween Conductors@1KHZ	35pF/ft.nom.
Operating Voltage	300V/RMS max
Temperature Rating	-20oC to 60oC
