Specifications

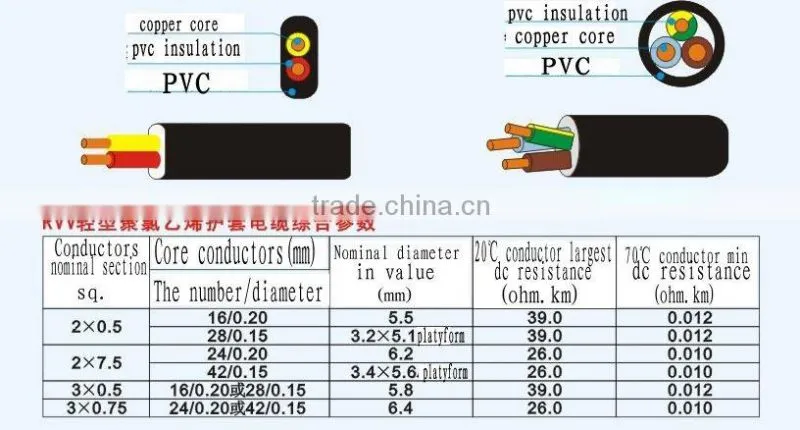

security alarm cable:Current unobstructed, durable,security alarm cable is wildly used in cctv camera and security system
security&alarm cable
Specifications
alarm cable
SECURITY CABLE
1.7*0.20mm or 7*0.24mm copper, tinned copper or CCA, alarm cable.
2.shield or unshield, PVC LSZH
ALARM CABLE
SECURITY CABLE
7/0.20mm stranded or 14*0.20mm, 6 cores unshield or we can produce as per buyer's request.
7*0.18mm, 7*0.20mm or 7*0.24mm copper, tinned copper or CCA, stranded, shield or unshield, good PVC, LZSH PVC
1.Conductor: bare copper or tinned copper or CCA or CCS conductor
2. Insulation:PVC-flame proof or common PVC insulation
3.Cable core: 2C, 4C, 6C, 8C, 12C, etc are available
4. Rip cord.
5.Jacked: PVC-flame proof or common PVC insulation,CMP,CM.
6. Standard packing: 100m/box, 100m/plastic spool, 305m/wooden spool
7. Application: used for alarm mechanisms or security system.
Electrical Properties:
Nom.DC Resistance per Conductor@20 |
6.43Ohms/Kft.nom. |
CapacitanceBetween Conductors@1KHZ |
35pF/ft.nom. |
Operating Voltage |
300V/RMS max |
Temperature Rating |
-20oC to 60oC |
More infomations welcome to contact our sale on line!
pls check here to contact Gilbert!
