Home > Metallurgy, Mineral & Energy > Steel & Products > Steel Pipe & Tube > Wushun Plain Steel Tube 4.76*0.6mm for Refrigerator Evaporator Chiller,Freezer,Condenser

Wushun Plain Steel Tube 4.76*0.6mm for Refrigerator Evaporator Chiller,Freezer,Condenser

Wushun Plain Steel Tube 4.76*0.6mm for Refrigerator Evaporator Chiller,Freezer,Condenser photo-1
Wushun Plain Steel Tube 4.76*0.6mm for Refrigerator Evaporator Chiller,Freezer,Condenser photo-2

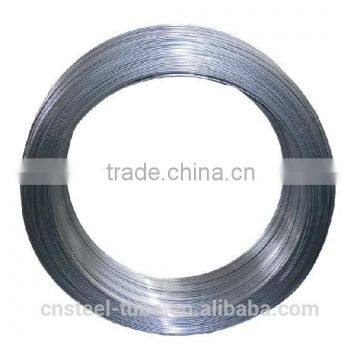

Wushun Plain Steel Tube 4.76*0.6mm for Refrigerator Evaporator Chiller,Freezer,Condenser photo-3

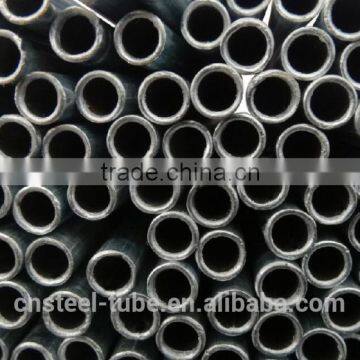

Wushun Plain Steel Tube 4.76*0.6mm for Refrigerator Evaporator Chiller,Freezer,Condenser photo-4
US$ 1,000 - 3,000 MOQ: 1 Ton
Key Specifications
Get Latest Price
Standard:
Thickness:
0.5, 1.0
Section Shape:
Round
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Thickness 0.5, 1.0
Section Shape Round
Outer Diameter 4.0 - 10.0 mm
Place of Origin Jiangsu, China
Secondary Or Not Non-secondary
Application Other
Technique Cold Drawn
Certification Other, ISO9001,ISO14001
Surface Treatment Other, UNCOATED
Alloy Or Not Non-alloy

Wushun plain steel tube 4.76*0.6mm for Chiller,Freezer,Conde

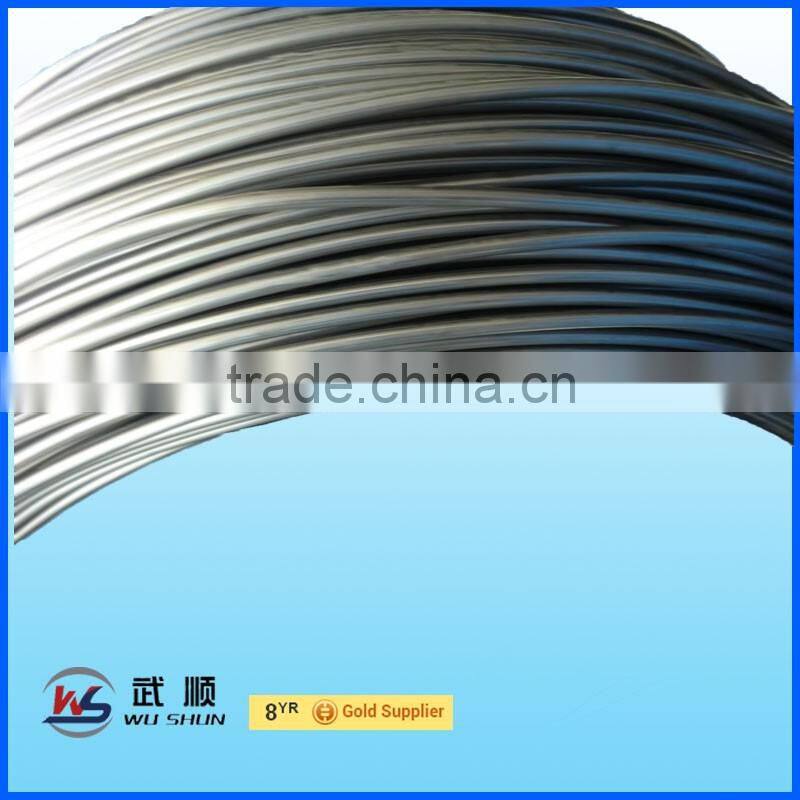

 Wushun plain steel tube 4.76*0.6mm for refrigerator evaporator Chiller,Freezer,Condenser



1.material:bao steel strip,low carbon



2.main use:widely used in refrigeartion,freezer,compressor,condenser etc



3.outer diameter:4.76mm



4.wall thickness:0.6mm



5.standard:GB/T24187-2009



6.certification:also passed ISO9001 quality attestation system and ISO14001 Certificate of Environment Management System



7.surface treatment:no coated



8.feature:soft and easy to bend



9.tensile strength:more than 290 Mpa



10.yield strength:more than 180 Mpa



11.elongation:more than 25%



12.place of origin:changzhou city,jiangsu province,China



13.port of loading:shanghai,china



14.package:plastic cloth with coils,wooden pallets,iron pallets etc



15.delivery:as contract



16.payment terms:T/T,L/C etc



petitive price among the same area



18.brand:wushun







Application:





Plain steel tube is mainly used in Chiller,Heater,Compressor,Condenser,Air conditioning,Freezer etc.It is made by low carbon steel strip and based on the national standard.







Specification:





Thickness

0.5 - 0.7 mm

Section Shape

Round

Outer Diameter

4 - 10mm

Place of Origin

Jiangsu, China (Mainland)

Secondary Or Not

Non-secondary

Application

refrigerator, freezer

Technique

Cold Drawn

Certification

ISO9001,ISO14001,SGS

Surface Treatment

Non-alloy

outer diameter

4mm,4.76mm,6mm,6.35mm,8mm

wall thickness

0.5mm,0.6mm,0.65mm,0.7mm

tensile strength

more than 290 Mpa

yield strength

more than 180 Mpa

elongation

more than 25%

standard

GB/T 24187-2009

Diameter tolerance

±0.08

Wall thickness tolerance

±0.08









Competitive Advantage:





Surface coated with antirust oil,has strong corrosion resistance,size is complete and best price with best quality.It has been recognized by market and the scale has been enlarged step by step.
