Home > Products > Force Gauge/Test Stand > Dial Tension Tester Tension Meter N/G Unit Double Dial ATN-0.1-2

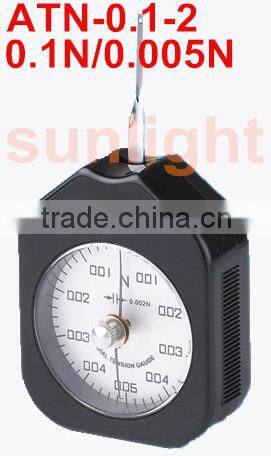

Dial Tension Tester Tension Meter N/G Unit Double Dial ATN-0.1-2
- Shanghai
- T/T Credit Card PayPal
You May Like
-
Dial Switch Tension Gauge Tension Meter N/G Unit Double Dial ATN-0.3-2
-
Dial Switch Tension Meter Tension Gauge N/G Unit Double Dial ATN-0.5-2
-
Dial Button Tension Gauge Tension Meter N/G Unit Double Dial ATN-1-2
-
Dial Button Tension Tester Tension Meter N/G Unit Double Dial ATN-1.5-2
-
Dial Button Tension Tester Tension Meter N/G Unit Double Dial ATN-3-2
-
Analog Switch Tension Tester Tension Gauge N/G Unit Double Dial ATN-5-2
Product Details
| Place of Origin | Shanghai, China | Brand Name | Sunlight | |
| Model Number | ATN-0.1-2 |
Product Description
Applications:
Tension gauge is used to measure pressure, such as electronic switches, micro-switches, valves, spring widening pressure, dial spindle pressure, automatic telephone equipment connections and pressure mechanical pressure armature, tape recorders buffer pressure point of contact pressure and other precision pressure, tension tests.
Features:
Simple to use Refined appearance
For ATN series, the measuring unit is N.
For ATG series, the measuring unit is G.
There are single dial or double dial for each model.
For example, ATN-0.1-1 is single dial, ATN-0.1-2 is double dial.
Specification:
ATN Series:
Model | ATN-0.1-1 ATN-0.1-2 | ATN-0.3-1 ATN-0.3-2 | ATN-0.5-1 ATN-0.5-2 | ATN-1-1 ATN-1-2 | ATN-1.5-1 ATN-1.5-2 | ATN-3-1 ATN-3-2 | ATN-5-1 ATN-5-2 |
Capacity | 0.1N | 0.3N | 0.5N | 1N | 1.5N | 3N | 5N |
Resolution | 0.005N | 0.01N | 0.02N | 0.05N | 0.05N | 0.1N | 0.2N |
Division Value | 0.02-0.1-0.02N | 0.06-0.5-0.06N | 0.01-0.5-0.01N | 0.2-0.1-0.2N | 0.3-1.5-0.3N | 0.6-3-0.6N | 1-5-1N |
Accuracy | +/-2% of full scale | ||||||
Weight | 0.25kg | ||||||
Dimension | 12*7*3.5cm | ||||||
ATG Series:
Model | ATG-10-1 ATG-10-2 | ATG-30-1 ATG-30-2 | ATG-50-1 ATG-50-2 | ATG-100-1 ATG-100-2 | ATG-150-1 ATG-150-2 | ATG-300-1 ATG-300-2 | ATG-500-1 ATG-500-2 |
Capacity | 10g | 30g | 50g | 100g | 150g | 300g | 500g |
Resolution | 0.5g | 1g | 2g | 5g | 5g | 10g | 20g |
Division Value | 2-10-2g | 6-30-6g | 10-50-10g | 20-100-20g | 30-150-30g | 60-300-60g | 100-500-100g |
Accuracy | +/-2% of full scale | ||||||
Weight | 0.25kg | ||||||
Dimension | 12*7*3.5cm | ||||||
