Home > Instruments & Meters > Meter for Electricity > Multimeter > Economical Digital Multimeter, AC/DC/Resistance/Capacitance/Frequency True RMS UT151G

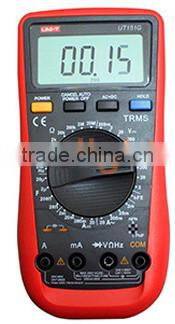

Economical Digital Multimeter, AC/DC/Resistance/Capacitance/Frequency True RMS UT151G

Name: Economical Digital Multimeter, AC/DC/Resistance/Capacitance/Frequency True RMS UT151G
Brand: UNI-T
SKU: 131399709
Availability: InStock

Economical Digital Multimeter, AC/DC/Resistance/Capacitance/Frequency True RMS UT151G thumbnail-1

Economical Digital Multimeter, AC/DC/Resistance/Capacitance/Frequency True RMS UT151G photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

UNI-T

Model Number:

UT151F

Contact Supplier Request Quote Chat Now

Shanghai Sunlight Electronic Technology Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name UNI-T

Model Number UT151F

Measuring Current Range 2mA/ 20mA/ 200mA/ 20A

Measuring Voltage Range 2V/ 20V/ 200V/ 750V

Measuring Resistance Range 200Ω/ 2KΩ/ 20KΩ/ 200KΩ/ 2MΩ/ 20MΩ

Measuring Capacitance Range 20nF/ 200nF/ 2μF/ 20μF

Dimensions 186mm * 91mm *39mm

Specifications:

Specifications	Range	Best Accuracy
Model		UT151G
DC Voltage (V)	200mV/ 2V/ 20V/ 200V/ 1000V	±(0.05%+3)
AC Voltage (V)	2V/ 20V/ 200V/ 750V	± (0.8%+20)
DC Current (A)	2mA/ 20mA/ 200mA/ 20A	± (0.5%+5)
AC Current (A)	2mA/ 20mA/ 200mA/ 20A	± (1%+20)
Resistance (Ω)	200Ω/ 2KΩ/ 20KΩ/ 200KΩ/ 2MΩ/ 20MΩ	±(0.3%+1)
Capacitance (F)	20nF/ 200nF/ 2μF/ 20μF	±(4%+20)
Frequency (Hz)	20KHz	±(1.5%+5)
Features
Display Count		19999
Manual Range		Yes
True RMS		Yes
Diode		Yes
Auto Power Off		Yes
Continuity Buzzer		Yes
Low Battery Indication		Yes
Data Hold		Yes
Input Impedance for DCV	≥10MΩ	Yes
General Characteristic
Power	9V Battery(6F22)
LCD Size	63mm X 29 mm
Product Color	Red and Grey
Product Net Weight	300g
Product Size	186mm X 91mm X39 mm
Standard Accessories	Battery, Test Lead
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	40 PCs
Standard Carton Measurement	645mm X 450mm X 340mm (0.099 CBM Per Standard Carton)
Standard Carton Gross Weight	22.8 Kg

Contrast:

Specifications	Range	Best Accuracy
Model		UT151F	UT151G
DC Voltage (V)	200mV/ 2V/ 20V/ 200V/ 1000V	±(0.05%+3)	±(0.05%+3)
AC Voltage (V)	2V/ 20V/ 200V/ 750V	± (0.5%+10)	± (0.8%+20)
DC Current (A)	2mA/ 20mA/ 200mA/ 20A	± (0.5%+5)	± (0.5%+5)
AC Current (A)	2mA/ 20mA/ 200mA/ 20A	± (0.8%+10)	± (1%+20)
Resistance (Ω)	200Ω/ 2KΩ/ 20KΩ/ 200KΩ/ 2MΩ/ 20MΩ	±(0.3%+1)	±(0.3%+1)
Capacitance (F)	20nF/ 200nF/ 2μF/ 20μF	±(4%+20)	±(4%+20)
Frequency (Hz)	20KHz	±(1.5%+5)	±(1.5%+5)
Features
Display Count		19999	19999
Manual Range		Yes	Yes
True RMS			Yes
Diode		Yes	Yes
Auto Power Off		Yes	Yes
Continuity Buzzer		Yes	Yes
Low Battery Indication		Yes	Yes
Data Hold		Yes	Yes
Input Impedance for DCV	≥10MΩ	Yes	Yes
General Characteristic
Power	9V Battery(6F22)
LCD Size	63mm X 29 mm
Product Color	Red and Grey
Product Net Weight	300g
Product Size	186mm X 91mm X39 mm
Standard Accessories	Battery, Test Lead
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	40 PCs
Standard Carton Measurement	645mm X 450mm X 340mm (0.099 CBM Per Standard Carton)
Standard Carton Gross Weight	22.8 Kg
