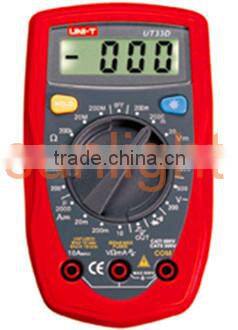

Portable Digital Multimeter, AC/DC/Resistance UT33D

Name: Portable Digital Multimeter, AC/DC/Resistance UT33D
Brand: UNI-T
SKU: 131399503
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

UNI-T

Model Number:

UT33D

Shanghai Sunlight Electronic Technology Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name UNI-T

Model Number UT33D

Measuring Voltage Range 200V/500V

Measuring Resistance Range 200Ω/2000Ω/20kΩ/200kΩ/20MΩ/200MΩ

Dimensions 130mm*73.5mm*35mm

Specifications:

Specifications	Range	Best Accuracy
Model		UT33D
DC Voltage (V)	200mV/2000mV/20V/200V/500V	±(0.5%+2)
AC Voltage (V)	200V/500V	±(1.2%+10)
DC Current (A)	2000μA/20mA/200mA/10A	±(1%+2)
Resistance (Ω)	200Ω/2000Ω/20kΩ/200kΩ/20MΩ/200MΩ	±(0.8%+2)
Features
Display Count		2000
Manual Range		Yes
Square Wave Output		Yes
Diode		Yes
Continuity Buzzer		Yes
Low Battery Indication		Yes
Data Hold		Yes
LCD Backlight		Yes
Input Impedance for DCV	Around 10MΩ	Yes
General Characteristic
Power	9V Battery(6F22)
LCD Size	48mm×16mm
Product Color	Red and Grey
Product Net Weight	179g (Including Holster)
Product Size	130mm×73.5mm×35mm
Standard Accessories	Battery, Test Lead,Holster
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	60 PCs
Standard Carton Measurement	490mm×356mm×315mm (0.055 CBM Per Standard Carton)
Standard Carton Gross Weight	18Kg

Contrast:

Specifications	Range	Best Accuracy
Model		UT33B	UT33C	UT33D
DC Voltage (V)	200mV/2000mV/20V/200V/500V	±(0.5%+2)	±(0.5%+2)	±(0.5%+2)
AC Voltage (V)	200V/500V	±(1.2%+10)	±(1.2%+10)	±(1.2%+10)
DC Current (A)	200μA/200mA/10A	±(1%+2)
DC Current (A)	2000μA/20mA/200mA/10A		±(1%+2)	±(1%+2)
Resistance (Ω)	200Ω/2000Ω/20kΩ/200kΩ/20MΩ	±(0.8%+2)	±(0.8%+2)
Resistance (Ω)	200Ω/2000Ω/20kΩ/200kΩ/20MΩ/200MΩ			±(0.8%+2)
Temperature (°C)	-40 °C ~ 1000°C		±(1%+3)
Temperature (°F)	-40°F~1832°F		±(1%+4)
Features
Display Count		2000	2000	2000
Manual Range		Yes	Yes	Yes
Battery Test	1.5V/9V/12V	±(2.5%+2)
Square Wave Output				Yes
Diode		Yes	Yes	Yes
Continuity Buzzer			Yes	Yes
Low Battery Indication		Yes	Yes	Yes
Data Hold		Yes	Yes	Yes
LCD Backlight		Yes	Yes	Yes
Input Impedance for DCV	Around 10MΩ	Yes	Yes	Yes
General Characteristic
Power	9V Battery(6F22)
LCD Size	48mm×16mm
Product Color	Red and Grey
Product Net Weight	179g (Including Holster)
Product Size	130mm×73.5mm×35mm
Standard Accessories	UT33B/UT33D-Battery, Test Lead,Holster
Standard Accessories	UT33C-Battery, Test Lead,Holster,Point Contact Temperature Probe
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	60 PCs
Standard Carton Measurement	490mm×356mm×315mm (0.055 CBM Per Standard Carton)
Standard Carton Gross Weight	UT33B/UT33D-18 Kg UT33C-20 Kg
