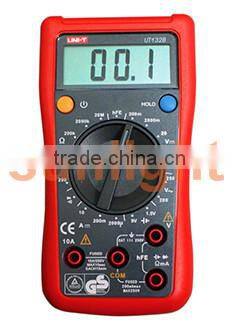

Handheld Digital Multimeter, AC/DC/Resistance UT132B

Name: Handheld Digital Multimeter, AC/DC/Resistance UT132B
Brand: UNI-T
SKU: 131399515
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

UNI-T

Model Number:

UT132B

Shanghai Sunlight Electronic Technology Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name UNI-T

Model Number UT132B

Measuring Voltage Range 200V/ 600V

Measuring Resistance Range 200Ω/ 2000Ω/ 20KΩ/ 200KΩ/ 2000KΩ/ 20MΩ

Dimensions 72mm*137mm*35mm

Specifications:

Specifications	Range	Best Accuracy
Model		UT132B
DC Voltage (V)	200mV/2000mV/20V/200V/600V	±(0.5%+2)
AC Voltage (V)	200V/ 600V	±(1.2%+3)
DC Current (A)	2000μA/ 200mA/ 10A	± (1%+2)
Resistance (Ω)	200Ω/ 2000Ω/ 20KΩ/ 200KΩ/ 2000KΩ/ 20MΩ	±(0.8%+5)
Features
Display Count		1999
Manual Range		Yes
Battery Test	1.5V/ 9V	± (1%+2)
Diode		Yes
Transistor		Yes
Continuity Buzzer		Yes
Low Battery Indication		Yes
Data Hold		Yes
Input Impedance for DCV	Around 10MΩ	Yes
General Characteristic
Power	9V Battery(6F22)
LCD Size	49mm X 18 mm
Product Color	Red and Grey
Product Net Weight	200g
Product Size	72mm×137mm×35mm
Standard Accessories	Battery,Test Lead, Multi-Purpose Socket
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	40 PCs
Standard Carton Measurement	540mm X 365mm X 290mm (0.057CBM Per Standard Carton)
Standard Carton Gross Weight	13.8 Kg

Contrast:

Specifications	Range	Best Accuracy
Model		UT132A	UT132B
DC Voltage (V)	200mV/2000mV/20V/200V/600V	±(0.5%+2)	±(0.5%+2)
AC Voltage (V)	200V/ 600V	±(1.2%+3)	±(1.2%+3)
DC Current (A)	2000μA/ 20mA/ 200mA/ 10A	± (1%+2)
DC Current (A)	2000μA/ 200mA/ 10A		± (1%+2)
Resistance (Ω)	200Ω/ 2000Ω/ 20KΩ/ 200KΩ/ 2000KΩ/ 20MΩ	±(0.8%+5)	±(0.8%+5)
Features
Display Count		1999	1999
Manual Range		Yes	Yes
Battery Test	1.5V/ 9V		± (1%+2)
Square Wave Output		Yes
Diode		Yes	Yes
Transistor		Yes	Yes
Continuity Buzzer			Yes
Low Battery Indication		Yes	Yes
Data Hold		Yes	Yes
Input Impedance for DCV	Around 10MΩ	Yes	Yes
General Characteristic
Power	9V Battery(6F22)
LCD Size	49mm X 18 mm
Product Color	Red and Grey
Product Net Weight	200g
Product Size	72mm×137mm×35mm
Standard Accessories	Battery,Test Lead, Multi-Purpose Socket
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	40 PCs
Standard Carton Measurement	540mm X 365mm X 290mm (0.057CBM Per Standard Carton)
Standard Carton Gross Weight	13.8 Kg
