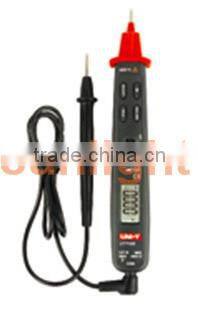

Pen Type Digital Multimeter UT118B

Name: Pen Type Digital Multimeter UT118B
Brand: UNI-T
SKU: 131399237
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

UNI-T

Model Number:

UT118B

Shanghai Sunlight Electronic Technology Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name UNI-T

Model Number UT118B

Measuring Voltage Range 3V/30V/300V

Measuring Resistance Range 300Ω/3kΩ/30kΩ/300kΩ /3MΩ

Measuring Capacitance Range 3nF/30nF/300nF/3μF/30μF /300μF

Dimensions 20mm*27mm*182mm

Specifications:

Specifications	Range		Best Accuracy
Model	SCAN Mode	AUTO Mode	UT118B
DC Voltage (V)	3V/30V/300V	3V/30V/300V	±(1%+3)
AC Voltage (V)	3V/30V/300V	3V/30V/300V	±(1%+4)
Resistance (Ω)	300Ω/3kΩ/30kΩ/300kΩ /3MΩ	300Ω/3kΩ/30KΩ/300kΩ/3MΩ /30MΩ	±(1%+3)
Capacitance (F)	3nF/30nF/300nF/3μF/30μF /300μF	3nF/30nF/300nF/3μF/30μF /300μF/3mF	±(3%+5)
Features
Display Count			3000
Auto Range			Yes
EF Function			Yes
Diode			Yes
Auto Power Off	Around 10 Minutes		Yes
Continuity Buzzer			Yes
Low Battery Indication			Yes
Data Hold			Yes
MAX Mode			Yes
MIN Mode			Yes
LCD Backlight			Yes
Penlight			Yes
Input Impedance for DCV	≥10MΩ		Yes
General Characteristic
Power	3V Li-MnO2 Cion Cell Battery
LCD Size	28mm×14mm
Product Color	Red and Grey
Product Net Weight	90g
Product Size	20mm×27mm×182mm
Standard Accessories	Battery, Test Lead
Standard Individual Packing	Blister, English Manual
Standard Quantity Per Carton	80 PCs
Standard Carton Measurement	570mm×300mm×415mm (0.071 CBM Per Export Carton)
Standard Carton Gross Weight	12.5Kg

Contrast:

Specifications	Range		Best Accuracy
Model	SCAN Mode	AUTO Mode	UT118A	UT118B
DC Voltage (V)	3V/30V/300V	3V/30V/300V	±(1%+3)	±(1%+3)
AC Voltage (V)	3V/30V/300V	3V/30V/300V	±(1%+4)	±(1%+4)
Resistance (Ω)	300Ω/3kΩ/30kΩ/300kΩ /3MΩ	300Ω/3kΩ/30kΩ/300kΩ /3MΩ/30MΩ	±(1%+3)	±(1%+3)
Capacitance (F)	3nF/30nF/300nF/3μF /30μF/300μF	3nF/30nF/300nF/3μF/30μF /300μF/3mF	±(3%+5)	±(3%+5)
Features
Display Count			3000	3000
Auto Range			Yes	Yes
EF Function				Yes
Diode			Yes	Yes
Auto Power Off	Around 10 Minutes		Yes	Yes
Continuity Buzzer			Yes	Yes
Low Battery Indication			Yes	Yes
Data Hold			Yes	Yes
MAX Mode			Yes	Yes
MIN Mode			Yes	Yes
LCD Backlight			Yes	Yes
Penlight			Yes	Yes
Input Impedance for DCV	≥10MΩ		Yes	Yes
General Characteristic
Power	3V Li-MnO2 Cion Cell Battery
LCD Size	28mm×14mm
Product Color	Red and Grey
Product Net Weight	90g
Product Size	20mm×27mm×182mm
Standard Accessories	Battery, Test Lead
Standard Individual Packing	Blister, English Manual
Standard Quantity Per Carton	80 PCs
Standard Carton Measurement	570mm×300mm×415mm (0.071 CBM Per Export Carton)
Standard Carton Gross Weight	12.5Kg
