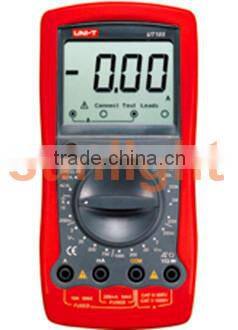

Handheld Automotive Multi-Purpose Multimeter, UT105

Name: Handheld Automotive Multi-Purpose Multimeter, UT105
Brand: UNI-T
SKU: 131399245
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

UNI-T

Model Number:

UT105

Shanghai Sunlight Electronic Technology Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name UNI-T

Model Number UT105

Measuring Current Range 200mA/10A

Measuring Voltage Range 2V/20V/200V/750V

Measuring Resistance Range 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

Dimensions 179mm * 88mm * 39mm

Specifications:

Specifications	Range	Best Accuracy
Model		UT105
DC Voltage (V)	200mV/2V/20V/200V/1000V	±(0.5%+5)
AC Voltage (V)	2V/20V/200V/750V	± (0.8%+5)
DC Current (A)	200mA/10A	± (0.8%+5)
Resistance (Ω)	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ	± (0.8%+5)
Features
Display Count		2000
Manual Range		Yes
Diode		Yes
Continuity Buzzer		Yes
Low Battery Indication		Yes
Data Hold		Yes
Input Protection		Yes
Input Impedance for DCV	Around 10MΩ	Yes
Dwell	4CYL/6CYL/8CYL	±(3%+5)
Tach	4CYL/6CYL/8CYL	±(3%+5)
General Characteristic
Power	9V Battery(6F22)
LCD Size	60mm X 54 mm
Product Color	Red and Grey
Product Net Weight	351g(Including Holster)
Product Size	179mm X 88mm X 39mm
Standard Accessories	Battery, Test Lead,Holster
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	40 PCs
Standard Carton Measurement	645mm×450mm×340mm (0.0987 CBM Per Standard Carton)
Standard Carton Gross Weight	24.6 Kg

Contrast:

Specifications	Range	Best Accuracy
Model		UT105	UT106	UT107
DC Voltage (V)	200mV/2V/20V/200V/1000V	±(0.5%+5)	±(0.5%+2)
DC Voltage (V)	200mV/2V/20V/1000V			±(0.5%+2)
AC Voltage (V)	2V/20V/200V/750V	± (0.8%+5)
AC Voltage (V)	200V/750V		± (0.8%+5)	± (0.8%+5)
DC Current (A)	200mA/10A	± (0.8%+5)	± (0.8%+5)	± (0.8%+5)
Resistance (Ω)	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ	± (0.8%+5)	± (0.8%+5)
Resistance (Ω)	200Ω/2kΩ/20kΩ/200kΩ/20MΩ			± (0.8%+5)
Frequency (Hz)	2kHz		±(2%+5)	±(2%+5)
Temperature (°C)	-40°C ~ 1000°C		±(2%+8)	±(2%+8)
Features
Display Count		2000	2000	2000
Manual Range		Yes	Yes	Yes
Battery Test	12V			±(3%+5)
Duty Cycle	1%-90%			±(4%+5)
Diode		Yes	Yes	Yes
Continuity Buzzer		Yes	Yes	Yes
Low Battery Indication		Yes	Yes	Yes
Data Hold		Yes	Yes	Yes
Input Protection		Yes	Yes	Yes
Input Impedance for DCV	Around 10MΩ	Yes	Yes	Yes
Dwell	4CYL/6CYL/8CYL	±(3%+5)	±(3%+5)	±(3%+5)
Tach	4CYL/6CYL/8CYL	±(3%+5)	±(3%+5)	±(3%+5)
General Characteristic
Power	9V Battery(6F22)
LCD Size	60mm X 54 mm
Product Color	Red and Grey
Product Net Weight	351g(Including Holster)
Product Size	179mm X 88mm X 39mm
Standard Accessories	UT105-Battery, Test Lead,Holster
Standard Accessories	UT106/UT107-Battery, Test Lead,Holster,Point Contact Temperature Probe
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	40 PCs
Standard Carton Measurement	645mm×450mm×340mm (0.0987 CBM Per Standard Carton)
Standard Carton Gross Weight	24.6 Kg
