Wet Magnetic Separator For Processing Spodumene
- 10 Set / Sets per Month
- Lianyungang Shanghai Qingdao
- T/T Credit Card
- Permanent Magnet Wet Powder Ore Magnetic Separator
- Wet-Type Fine Particle Level Intensive Magnetic Separator-Separating Equipment
- Metal Detector Wet Magnetic Separator
- Quality Certification Electro Magnetic Extractor-Wet Magnetic Separator
- Widely Used In Mining/Processing The Separators-Wet Magnetic Separator
- Ball Mill Wet Magnetic Separation Separator Application
Product Details
Condition: | New | Type: | Magnetic Separator | Production Capacity: | 80-150t/h |
Place of Origin: | Jiangsu, China | Brand Name: | Boyun | Model Number: | BYCTB-1230 |
Voltage: | 380v | Power(W): | 7500 | Dimension(L*W*H): | 1200*3000mm |
Weight: | 6200kg | Certification: | ISO | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
flat rack or due to the customer's demand
Product Description
Specifications
Wet Magnetic Separator For Processing Spodumene1.rich ore concentrate
2.separate,remove Fe
3.2 types drum
4.ISO
wet magnetic separator for processing spodumene
The Scope of Application
It is widely used in mineral separation, coal washing and chemical sectors for wet classifying strong magnetic mineral of size 0-6mm, and the mineral are divided into two kinds of products: magnetic and non-magnetic material. The specific susceptibility of its separating strong magnetic minerals should be no less than 3000*10-6cm/g, which belongs to this type of minerals are magnetite, magnetic pyrite etc.
Technical Data Of Wet Magnetic Separator
model | Drum size(Diameter×Length)(mm) | Magnetic induction strength of magnetic surface(mT) | Disposal capacity | Power(KW) | Rotary speed(r/min) | weight(KG) | instruction | |||
Geometric center value Of pole | Average value of sweeping field | The highest magnetic induction intensity | T/h | M3/h | ||||||
CTS(N/B)-46 | 400×600 |
| 130 | 240 | 1-3 | 5 | 1.1 | 45 | 600 |
|
CTS(N/B)-66 | 600×600 |
| 145 | 240 | 1-10 | 16 | 1.1 | 40 | 750 | Permanent-magnetic |
CTS(N/B)-69 | 600×900 |
| 145 | 240 | 8-5 | 24 | 1.1 | 40 | 830 |
|
CTS(N/B)-612 | 600×1200 |
| 145 | 240 | 10-20 | 32 | 2.2 | 40 | 990 |
|
CTS(N/B)-618 | 600×1800 |
| 145 | 240 | 15-30 | 48 | 2.2 | 40 | 1330 |
|
CTS(N/B)-712 | 750×1200 | 120 | 155 |
| 15-30 | 48 | 3 | 35 | 1500 |
|
CTS(N/B)-718 | 750×1800 | 120 | 155 | 240 | 20-45 | 72 | 3 | 35 | 2100 | Permanent magnetic |
CTS(N/B)-918 | 900×1800 | 148 | 165 | 240 | 25-55 | 90 | 4 | 28 | 2900 |
|
CTS(N/B)-924 | 900×2400 | 148 | 165 | 240 | 35-70 | 110 | 4 | 28 | 3500 |
|
CTS(N/B)-1028 | 1050×1800 | 148 | 165 | 240 | 40-75 | 120 | 5.5 | 22 | 4000 |
|
CTS(N/B)-1021 | 1050×2100 | 148 | 165 | 240 | 45-88 | 140 | 5.5 | 22 | 4500 |
|
CTS(N/B)-1024 | 1050×2400 | 148 | 165 | 240 | 52-100 | 130 | 5.5 | 22 | 5000 | Left and right |
CTS(N/B)-1030 | 1050×3000 | 160 | 240 | 240 | 65-125 | 200 | 7.5 | 22 | 6200 |
|
CTS(N/B)-1218 | 1200×1800 | 148 | 165 | 240 | 47-90 | 140 | 5.5 | 19 | 5800 |
|
CTS(N/B)-1224 | 1200×2400 | 148 | 165 | 240 | 82-120 | 192 | 7.5 | 19 | 6200 |
|
CTS(N/B)-1230 | 1200×3000 | 148 | 165 | 240 | 80-150 | 240 | 7.5 | 19 | 6200 |
|
CTS(N/B)-1530 | 1500×3000 | 180 | 240 | 240 | 90-170 | 270 | 11 | 14 | 8100 |
|
CTS(N/B)-1540 | 1500×4000 | 180 | 240 | 240 | 115-220 | 350 | 11 | 14 | 9300 |
|

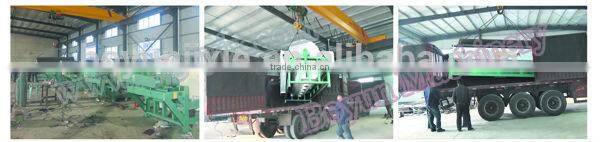

Production Line
Diagram of the Magnetic System
The magnetic system uses ferrite materials or is compounded with the rare earth magnet. The average magnetic induction of the magnetic surface is 100-600mT.
Three Types of Tank
The one cylinder can be equipped with three types of tank, namely downstream launder, countercurrent launder and semi-countercurrent launder.
Advantages:
1. Simple structure
2. Large Processing Capacity
3. Convenient operation
4. Easy maintenance
About Us
Installation In Customer's Factory
Certificate
Company Profile
Lianyungang Boyun Machinery Co., Ltd. is a professional manufacturer of mineral machinery, specialized in the design, research & development, manufacture & sales. We have owned 60 products including feeding, cracked, transportation, ore grinding, classification, flotation, concentration, drilling & magnetic separation. Those are widely used in mines, drilling and engineering construction.
Boyun is located in Donghai County, Lianyungang City. There are 10 engineers & 100 staff members more or less. Boyun pays much attention to product quality, and actively follows ISO9001 standards. We have many advanced performance test equipment and continuously make improvements to our quality assurance system. Quality service is considered as an important part of our product quality, and we honor our commitments we make before and after sales. We take seriously on every machine production so that we make sure it meets demand of our customers. Besides, we also can supply our customers mineral separation program design, mineral separation technological process design and standard & non-standard design. Donghai has beautiful scenery and beaches, convenient transportation that included harbors, an airport, railroads, and highways.
Welcome friends all over the world to visit our factory.
