2016 Magnetic Separator Iron Separation Machines for Sale

2016 Magnetic Separator Iron Separation Machines for Sale photo-1
2016 Magnetic Separator Iron Separation Machines for Sale photo-2
US$ 5,280 - 48,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Magnetic Separator
Production Capacity:
3-95T/H
Payment & Shipping
Payment Methods:
Port of Shipment:
Lianyungang Shanghai Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Magnetic Separator
Production Capacity 3-95T/H
Place of Origin Jiangsu, China
Brand Name BoYun
Model Number CTD-69
Voltage 380v or customize
Power(W) 1.1kw
Dimension(L*W*H) 600x900mm
Weight 1t
Certification ISO9001:2008
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Scope of Application

It is widely used for separating ferrous without water and removing ferrous of refractory ,the machine meets the need of a variety of irons ores,sand,taillings,steel slag,steel ash,sulfuric acid residue,abrasives,firproof materials,plate making,rubber,food and other me magnetic separator can be a machine with multi-use.



Delivery site

2016 Magnetic Separator Iron Separation Machines for Sale



Features of Dry Magnetic Separator

1.      magnetic system material is high performance NdFeB & high quality Ferrite material

2.      separation cylinder material is stainless steel

3.      high productive efficiency, high ability of disposal, good efficiency separation, wide usage               range and without water

4.      wide range of granularity, high separation precision, simple structure, maintain conveniently

5.      used in Fe separation without water, refractory matter & deironing

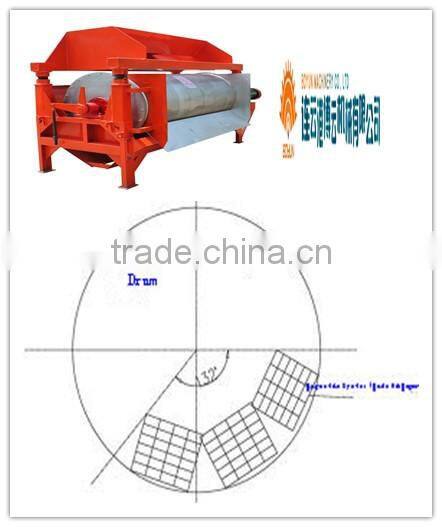

Sketch Picture Of Drum&Working

2016 Magnetic Separator Iron Separation Machines for Sale



2016 Magnetic Separator Iron Separation Machines for Sale



Application of Dry Magnetic Separator

It is widely used for separating ferrous without water and removing ferrous of refractory and other material.

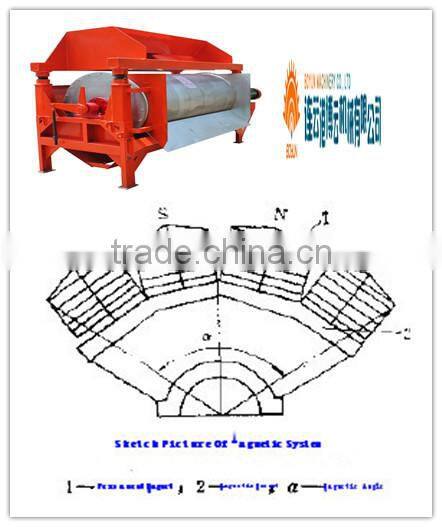

 Sketch Picture Of Magnetic System



2016 Magnetic Separator Iron Separation Machines for Sale

 Technical Parameters Of Dry Magnetic Separator



Model

drum diameter(mm)

Magnetic induction intensity of drum surface average(mm)

Disposal ability(T/h)

Power(KW)

Rotary speed(r/min)

CTD44

400×400

130-500

3

1.1

45

CTD46

400×600

130-500

5

1.1

45

CTD64

600×600

145-500

16

1.1

40

CTD69

600×900

145-500

24

1.1

40

CTD612

600×1200

145-500

32

2.2

40

CTD618

600×1800

145-500

48

2.3

40

CTD712

750×1200

155-500

48

3

35

CTD708

750×1800

155-500

72

3

35

CTD1024

1050×2400

180-500

95

4

40

Sketch Picture

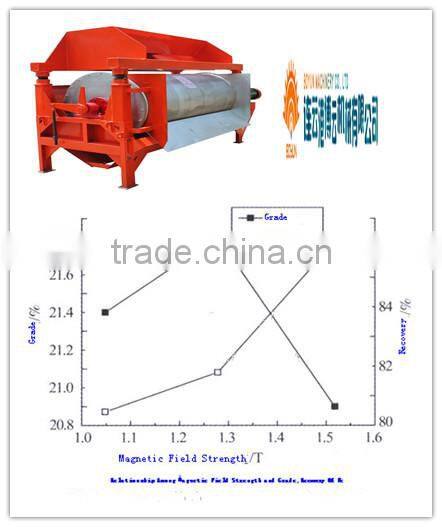

Relationship Among Magnetic Strength And Grades,Recovery Of Fe

2016 Magnetic Separator Iron Separation Machines for Sale

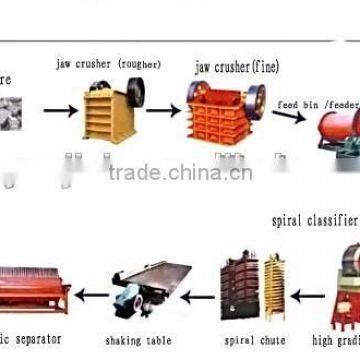

 Technological Process

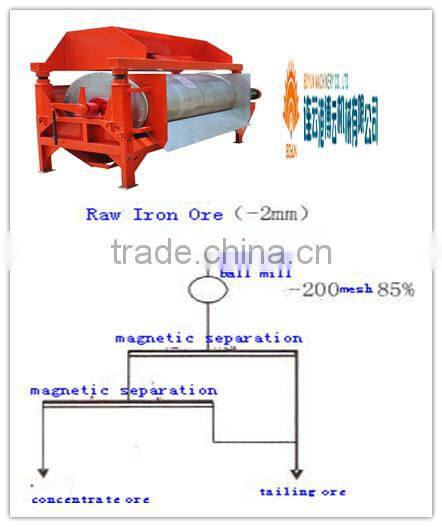

Application Example

2016 Magnetic Separator Iron Separation Machines for Sale



Certificate

 2016 Magnetic Separator Iron Separation Machines for Sale

 Questions

1.what is the raw material do you want to process?

2.The length and wide of rotary drum?

 3.What's your purpose,remove iron or separate iron?

4.The iron concentration in raw material?partical size of raw material?

5.Your handling capacity,10t/h? 15t/h?





Any requirements and questions please fell free to contact us:+86-18052312057      whatsapp: +86-18052312057
18052312057, Whatsapp:+86-18052312057
