Double Color Injection Molding Machine
US$ 1 - 10
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Preform Injection
Style:
Horizontal
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Double Color/Clear Color/two Color Injection Molding Machine PriceUS$ 1 - 2MOQ: 1 Set -
170ton Double Color/Clear Color/two Color Injection Molding MachineUS$ 1 - 2MOQ: 1 Set
-
Double Color and Two Color Injection Molding MachineUS$ 1 - 10MOQ: 1 Set
-
Plastic Injection 2 Color Mould MachineNegotiableMOQ: 1 Set
-
N260 TonHigh Speed Injectioon Molding Machine for Food ContainerUS$ 1 - 10MOQ: 1 Set
Condition
New
Type
Preform Injection
Style
Horizontal
Brand Name
ONGO
Model Number
ZSQ360
Place of Origin
Zhejiang, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
1012g-1349g,125g-213g
Injection Rate
337g/s-442g/s,74g/s-128.1g/s
Clamping Force
3600KN
Opening Stroke
660mm
Power(W)
82.1 KW
Certification
ISO9001,CE
After-sales Service Provided
Engineers available to service machinery overseas

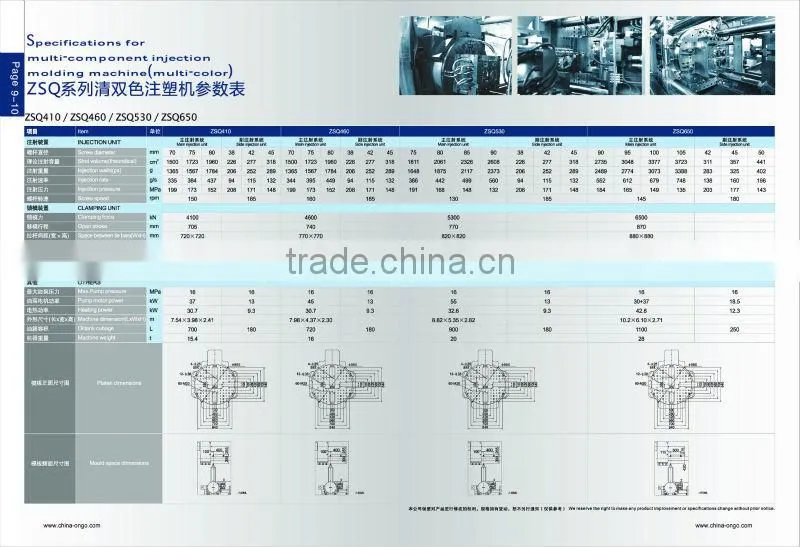

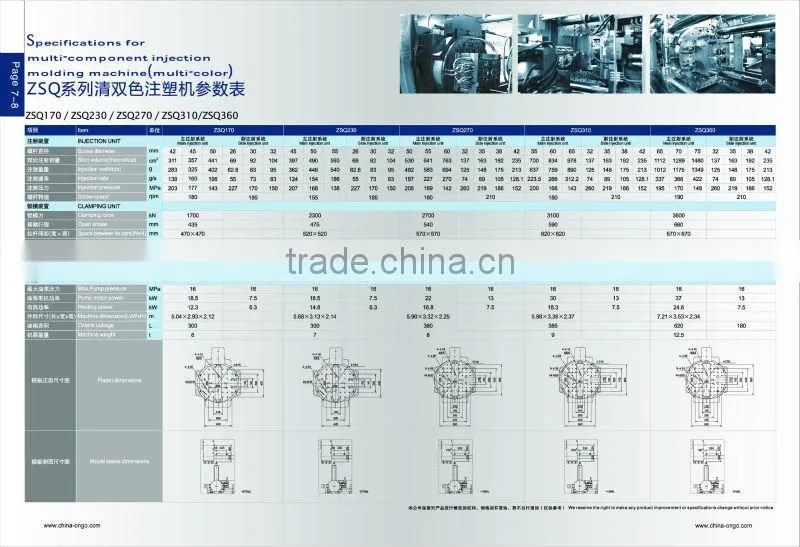

1.ZSQINJECTION MOLDING MCHINE CATALOG
| item | ZSQ360 | ||||||||
| injection unit | Main injection unit | side injection unit | |||||||
| screw diameter | mm | 65 | 70 | 75 | 32 | 35 | 38 | 42 | |
| shot volume(theoretical) | cm3 | 1112 | 1289 | 1480 | 137 | 163 | 192 | 235 | |
| injection weight(ps) | g | 1012 | 1175 | 1349 | 125 | 148 | 175 | 213 | |
| injection rate | g/s | 337 | 368 | 442 | 74 | 89 | 105 | 128.1 | |
| injection pressure | Mpa | 195 | 170 | 148 | 260 | 219 | 186 | 152 | |
| screw speed | rpm | 190 | 210 | ||||||
| clamping unit | |||||||||
| clamping force | kN | 3600 | |||||||
| open stroke | mm | 660 | |||||||
| space between tie bars(WxH) | mm | 670x670 | |||||||
| max mould height | mm | 720 | |||||||
| min mould height | mm | 250 | |||||||
| ejector stroke | mm | 160 | |||||||
| ejector force | kN | 70 | |||||||
| others | |||||||||
| max pump pressure | Mpa | 16 | 16 | ||||||
| pump motor power | kW | 37 | 13 | ||||||
| heating power | kW | 24.6 | 7.5 | ||||||
| machine dimension(LxWxH) | m | 7.21x3.53x2.34 | |||||||
| oiltank cubage | l | 620 | 180 | ||||||
| machine weight | t | 12.5 | |||||||

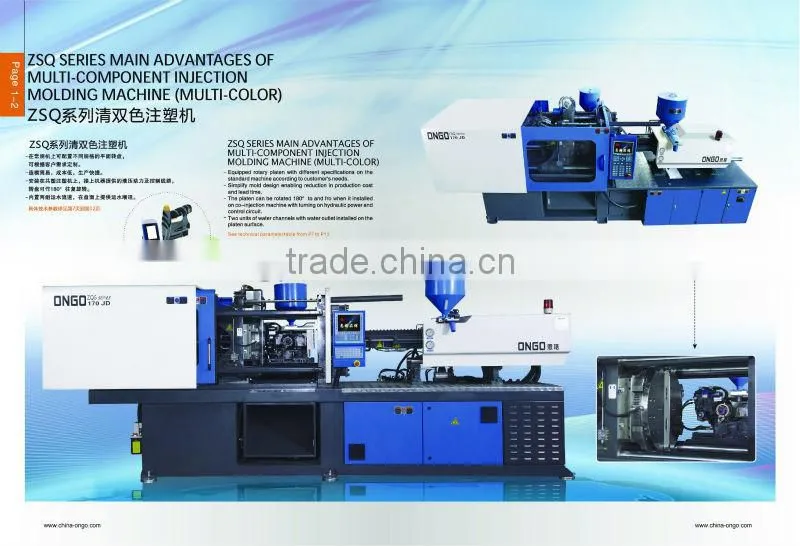

2.FEATURE
- Equipped rotary planten with diffrernt specifications on the standard machine according to customer's need.
- Simplify mold design enabling reduction in production cost and lead time

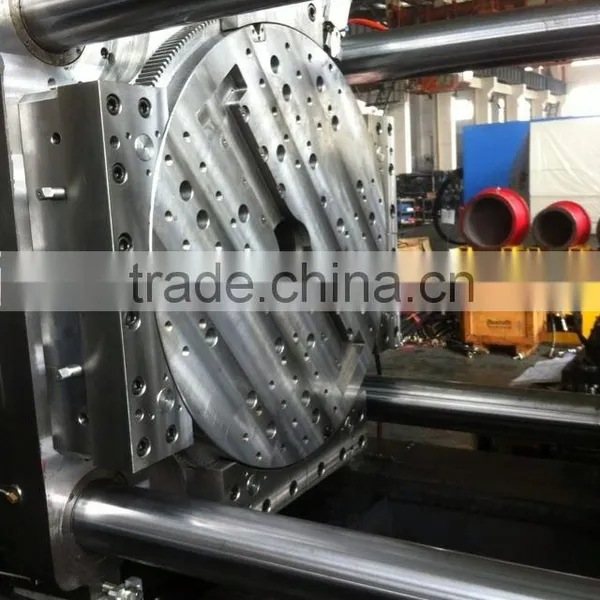

- The platen can be rotate 180 degree to and for when it installed on co-injection machine with turning on hydraulic power and control circuit
- Two units of water channels with water outlet installed on the palten surface

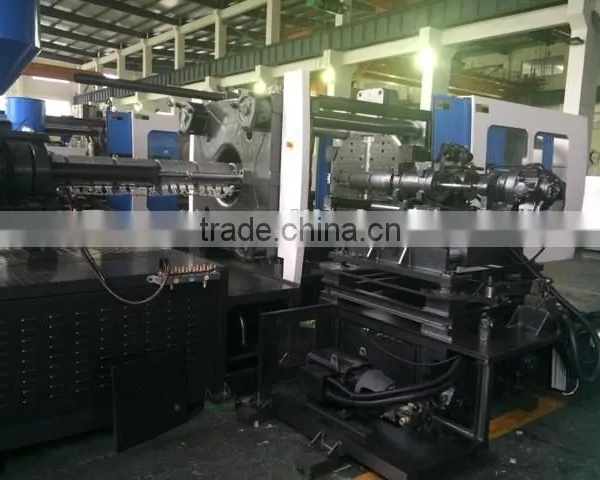

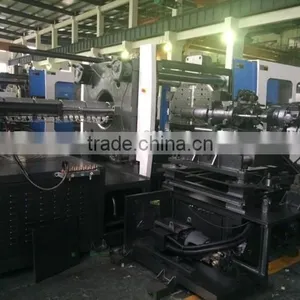

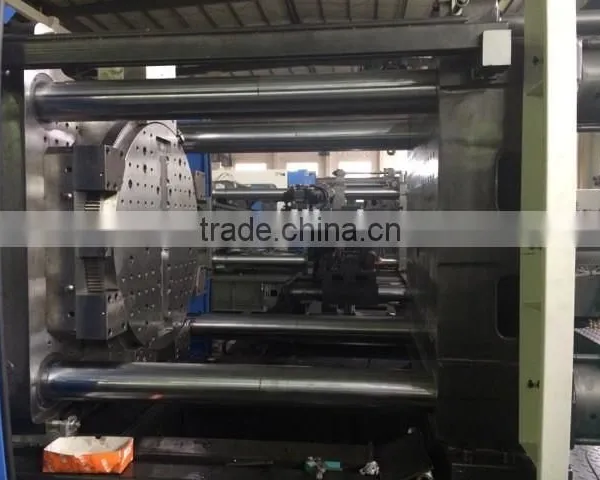

3.DOUBLE COLOR MACHINE PICTURES
4.OUR CUSTOMER
5.OUR SERVICE
We offer one year warranty service machines for you without screw,and specialize in providing a full set of equipment solutions with mould and auxiliary for our customer .
