double Color/Clear color/two color Injection Molding Machine price
- 100 Set / Sets per Month
- Ningbo Port
- T/T Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | ONGO | Model Number: | ZSQ |
Shaping Mode: | Preform Mould | Product Material: | Plastic | Product: | Household Product |
Product Description
ZSQ Double Color(Clear color) Injection Molding Machine Parameters Table
ZSQ170 Double color Injection molding machine | |||||||||
Item | ZSQ170 | ||||||||
Injection Unit | Main injection unit | Side injection unit | |||||||
Screw diameter | mm | 42 | 45 | 50 | 26 | 30 | 32 | ||
Shot volume | cm3 | 311 | 357 | 441 | 69 | 92 | 104 | ||
Injection weight | g | 283 | 325 | 402 | 62.8 | 83 | 95 | ||
Injection rate | g/s | 138 | 160 | 196 | 55 | 73 | 83 | ||
Injection pressure | Mpa | 203 | 177 | 143 | 227 | 170 | 150 | ||
Screw speed | rpm | 180 | 185 | ||||||
Clamping Unit | |||||||||
Clamping force | KN | 1700 | |||||||
Open stroke | mm | 435 | |||||||
Space between tie bars(W*H) | mm | 470*470 | |||||||
Max.mould height | mm | 520 | |||||||
Min.mould height | mm | 180 | |||||||
Ejector stroke | mm | 140 | |||||||
Ejector force | KN | 50 | |||||||
Others | |||||||||
Max.pump pressure | Mpa | 16 | 16 | ||||||
Pump motor power | kw | 18.5 | 7.5 | ||||||
Heating power | kw | 12.3 | 6.3 | ||||||
Machine dimension(L*W*H) | m | 5.04*2.93*2.12 | |||||||
Oiltank cubage | L | 300 | |||||||
Machine weight | t | 6 |
ZSQ230 Double color Injection molding machine | |||||||||
Item | ZSQ230 | ||||||||
Injection Unit | Main injection unit | Side injection unit | |||||||
Screw diameter | mm | 45 | 50 | 55 | 26 | 30 | 32 | ||
Shot volume | cm3 | 397 | 490 | 593 | 69 | 92 | 104 | ||
Injection weight | g | 362 | 446 | 540 | 62.8 | 83 | 95 | ||
Injection rate | g/s | 124 | 154 | 186 | 55 | 73 | 83 | ||
Injection pressure | Mpa | 207 | 168 | 138 | 227 | 170 | 150 | ||
Screw speed | rpm | 180 | 185 | ||||||
Clamping Unit | |||||||||
Clamping force | KN | 2300 | |||||||
Open stroke | mm | 475 | |||||||
Space between tie bars(W*H) | mm | 520*520 | |||||||
Max.mould height | mm | 530 | |||||||
Min.mould height | mm | 200 | |||||||
Ejector stroke | mm | 140 | |||||||
Ejector force | KN | 70 | |||||||
Others | |||||||||
Max.pump pressure | Mpa | 16 | 16 | ||||||
Pump motor power | kw | 18.5 | 7.5 | ||||||
Heating power | kw | 14.8 | 6.3 | ||||||
Machine dimension(L*W*H) | m | 5.68*3.13*2.14 | |||||||
Oiltank cubage | L | 300 | |||||||
Machine weight | t | 7 |
ZSQ270 Double color Injection molding machine | ||||||||||
Item | ZSQ270 | |||||||||
Injection Unit | Main injection unit | Side injection unit | ||||||||
Screw diameter | mm | 50 | 55 | 60 | 32 | 35 | 38 | 42 | ||
Shot volume | cm3 | 530 | 641 | 763 | 137 | 163 | 192 | 235 | ||
Injection weight | g | 482 | 583 | 694 | 125 | 148 | 175 | 213 | ||
Injection rate | g/s | 187 | 227 | 270 | 74 | 89 | 105 | 128.1 | ||
Injection pressure | Mpa | 205 | 169 | 142 | 260 | 219 | 186 | 152 | ||
Screw speed | rpm | 180 | 210 | |||||||
Clamping Unit | ||||||||||
Clamping force | KN | 2300 | ||||||||
Open stroke | mm | 475 | ||||||||
Space between tie bars(W*H) | mm | 520*520 | ||||||||
Max.mould height | mm | 530 | ||||||||
Min.mould height | mm | 200 | ||||||||
Ejector stroke | mm | 140 | ||||||||
Ejector force | KN | 70 | ||||||||
Others | ||||||||||
Max.pump pressure | Mpa | 16 | 16 | |||||||
Pump motor power | kw | 18.5 | 7.5 | |||||||
Heating power | kw | 14.8 | 6.3 | |||||||
Machine dimension(L*W*H) | m | 5.68*3.13*2.14 | ||||||||
Oiltank cubage | L | 300 | ||||||||
Machine weight | t | 7 |
ZSQ310 Double color Injection molding machine | ||||||||||
Item | ZSQ310 | |||||||||
Injection Unit | Main injection unit | Side injection unit | ||||||||
Screw diameter | mm | 55 | 60 | 65 | 32 | 35 | 38 | 42 | ||
Shot volume | cm3 | 700 | 834 | 978 | 137 | 163 | 192 | 235 | ||
Injection weight | g | 637 | 759 | 890 | 125 | 148 | 175 | 213 | ||
Injection rate | g/s | 223.5 | 266 | 312.2 | 74 | 89 | 105 | 128.1 | ||
Injection pressure | Mpa | 200 | 168 | 143 | 260 | 219 | 186 | 152 | ||
Screw speed | rpm | 180 | 210 | |||||||
Clamping Unit | ||||||||||
Clamping force | KN | 3100 | ||||||||
Open stroke | mm | 590 | ||||||||
Space between tie bars(W*H) | mm | 620*620 | ||||||||
Max.mould height | mm | 630 | ||||||||
Min.mould height | mm | 200 | ||||||||
Ejector stroke | mm | 150 | ||||||||
Ejector force | KN | 70 | ||||||||
Others | ||||||||||
Max.pump pressure | Mpa | 16 | 16 | |||||||
Pump motor power | kw | 30 | 13 | |||||||
Heating power | kw | 18.3 | 7.5 | |||||||
Machine dimension(L*W*H) | m | 5.98*3.36*2.37 | ||||||||
Oiltank cubage | L | 385 | ||||||||
Machine weight | t | 9 |
ZSQ360 Double color Injection molding machine | ||||||||||
Item | ZSQ360 | |||||||||
Injection Unit | Main injection unit | Side injection unit | ||||||||
Screw diameter | mm | 65 | 70 | 75 | 32 | 35 | 38 | 42 | ||
Shot volume | cm3 | 1112 | 1289 | 1480 | 137 | 163 | 192 | 235 | ||
Injection weight | g | 1012 | 1175 | 1349 | 125 | 148 | 175 | 213 | ||
Injection rate | g/s | 337 | 368 | 422 | 74 | 89 | 105 | 128.1 | ||
Injection pressure | Mpa | 195 | 170 | 148 | 260 | 219 | 186 | 152 | ||
Screw speed | rpm | 190 | 210 | |||||||
Clamping Unit | ||||||||||
Clamping force | KN | 3600 | ||||||||
Open stroke | mm | 660 | ||||||||
Space between tie bars(W*H) | mm | 670*670 | ||||||||
Max.mould height | mm | 720 | ||||||||
Min.mould height | mm | 250 | ||||||||
Ejector stroke | mm | 160 | ||||||||
Ejector force | KN | 70 | ||||||||
Others | ||||||||||
Max.pump pressure | Mpa | 16 | 16 | |||||||
Pump motor power | kw | 37 | 13 | |||||||
Heating power | kw | 24.6 | 7.5 | |||||||
Machine dimension(L*W*H) | m | 7.21*3.53*2.34 | ||||||||
Oiltank cubage | L | 620 | 180 | |||||||
Machine weight | t | 12.5 |
We can provide to you from 170Ton - 650Ton injection molding machine.
Feature
- The energy saving electromagntic heating system
- Linking connecting rod
- Platen center is thick enough----New utility model patent:200920121070.7
- Enhanced stationary platen------New utility model patent:200920122627.9
- Special customized optimized control system------Design patent:200930142016.6
- Injection preplastication seat with oil copper sleeve
- Colsed base structure
- Automatic mould adjustment
- Sealed structure with cone surface
- Sppray plastic in oil tank----New utility model patent:200920121071.1
- Double moveble hydraulic cyliders tighening structure
- Copper bush with hgih quality
- Number conersion linkage stucture
- The device to transit thin lubrication oil in colume style
- Screw rotational speed detection

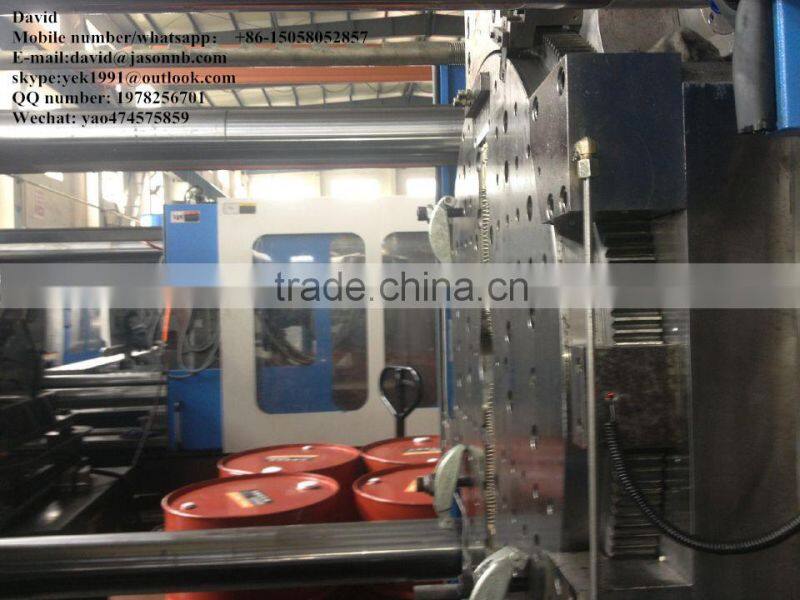

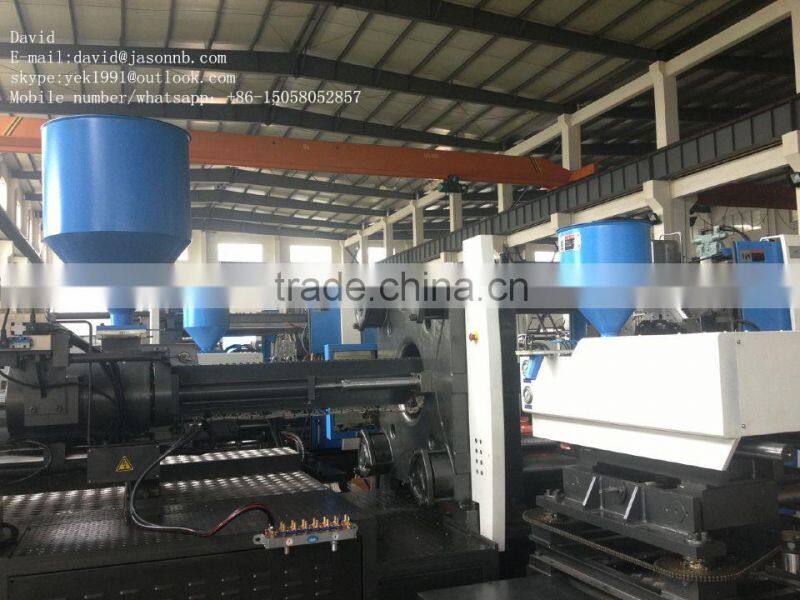

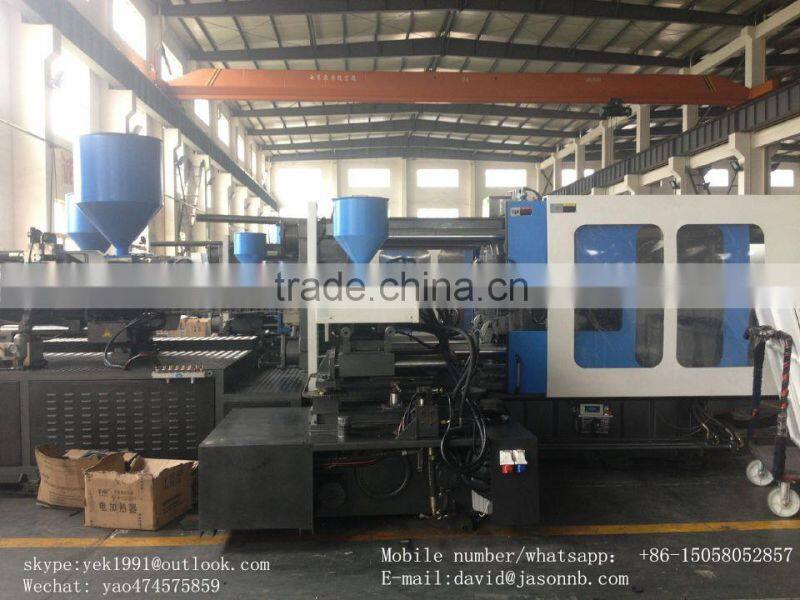

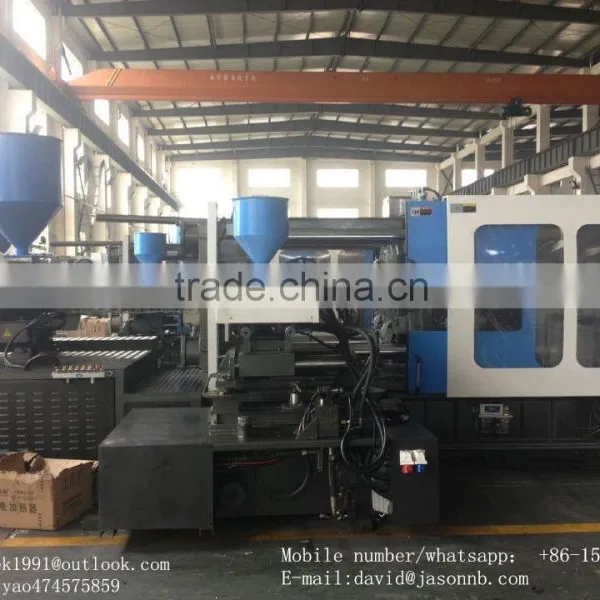

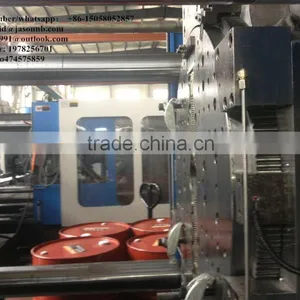

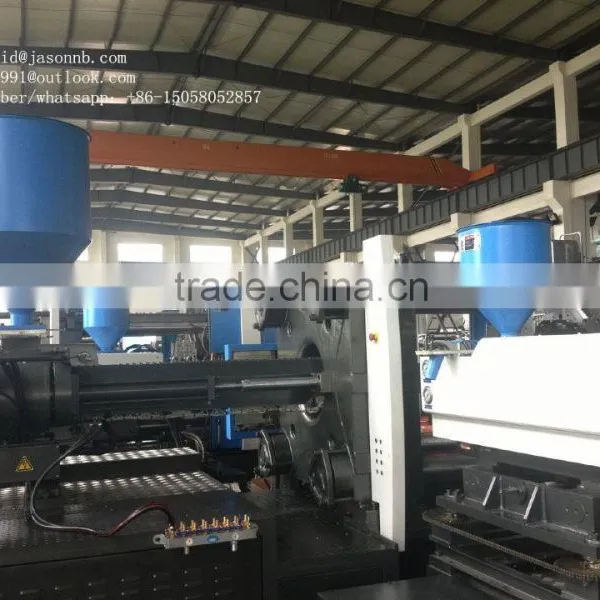

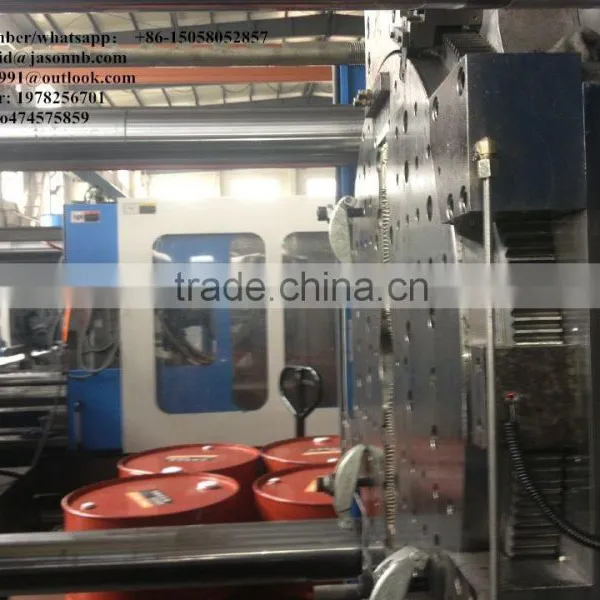

Two color/Clear color (double color) Injection molding machine photo
Factory Customer
Participate in exhibition
Authenticate
Cooperation company
We offer one year warranty service machines for you without screw,and specialize in providing a full set of equipment solutions with mould and auxiliary for our customer .
Contact Us
- Ningbo Ongo Precision Injection Machinery Co., Ltd.
- Contact namejason tong
- Phone0086-574-87830259
- AddressNo.195.changluo road,luotuo Ningbo,Zhejiang
