Specifications
Swimming pool project1.high quality & 10 year guarantee
2.UV resistance surface
3.Made of fiberglass

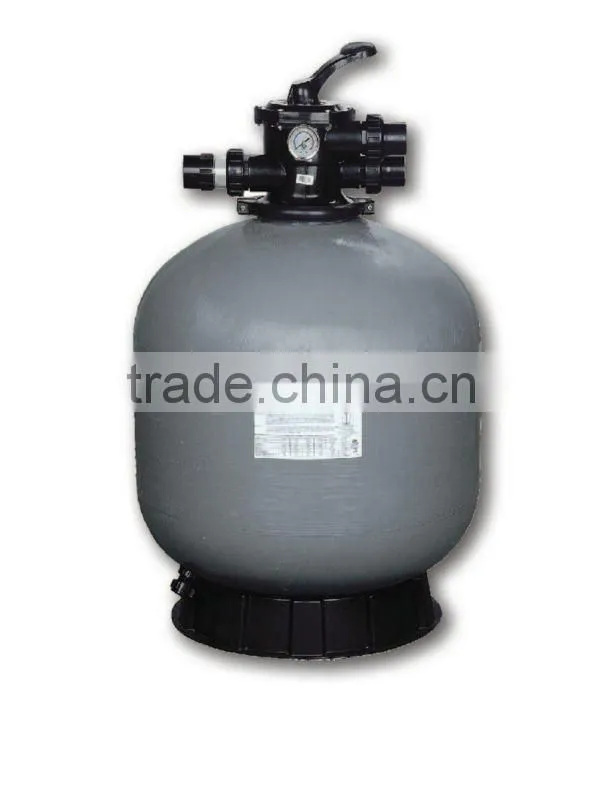

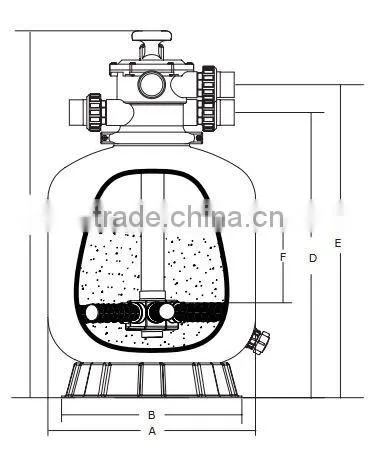

Fiberglass top mounted sand filter
FUNCTIONS: Refer to 6-Way Multi-port Valve
Maximum Working Pressure: 250kPa/36psi/2.5bar
Factory Testing Pressure: 400kPa/58psi/4.0bar
Size of Silica Sand: 0.5-0.8mm
Maximum Filtration Velocity: 50m³/h/m²
Maximum Water Temperature: 43°C (109°F)
TECHNICAL CHARACTERISTIC
Model NO |
Filter Area(m²) |
Valve Connections |
Max Flow Rate |
Sand(kg) |
V350 |
0.09 |
11/2inch 50mm |
72lpm 4.32 m³/h |
20 |
V400 |
0.13 |
11/2inch 50mm |
108lpm 6.48 m³/h |
35 |
V450 |
0.16 |
11/2inch 50mm |
135lpm 8.10 m³/h |
45 |
V500 |
0.22 |
11/2inch 50mm |
185lpm 11.10 m³/h |
85 |
V650 |
0.32 |
11/2inch 50mm |
260lpm 15.60 m³/h |
145 |
V700 |
0.40 |
11/2inch 50mm |
325lpm 19.50 m³/h |
210 |
Pictures

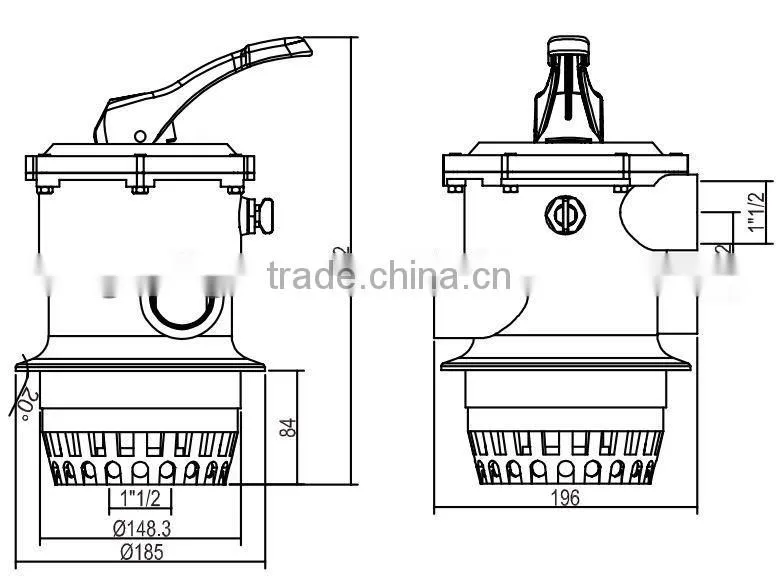

MULTIPORT VALVES
FEATURES
1.Constructed of molded ABS material with heavy duty plastic handles
2.100% factory tested
3.clamp lock is designed to allow 360 degree rotation to simplify installation

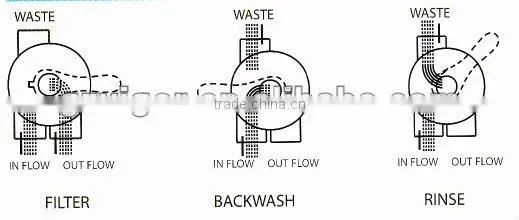

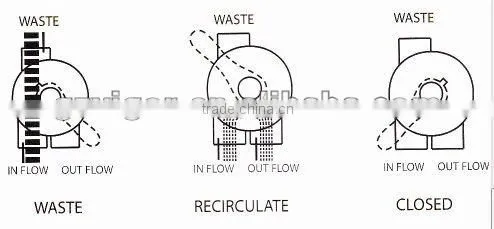

FUNCTIONS: Refer to 6-Way Multi-port valve
1. filter-normal filtration
2. backwash-cleaning filter by reversing the flow
3. rinse-used after backwash to flush dirt from valve
4. waste-by-passes filter, use for vacuuming to waste outlet or lowering water level
5. recirculate-by-passes filter for circulating water to pool
6. closed-shuts off all flow to filter or pool
