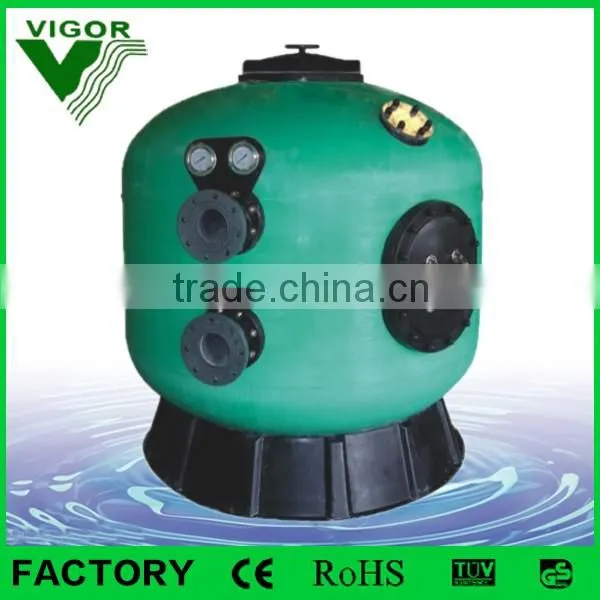

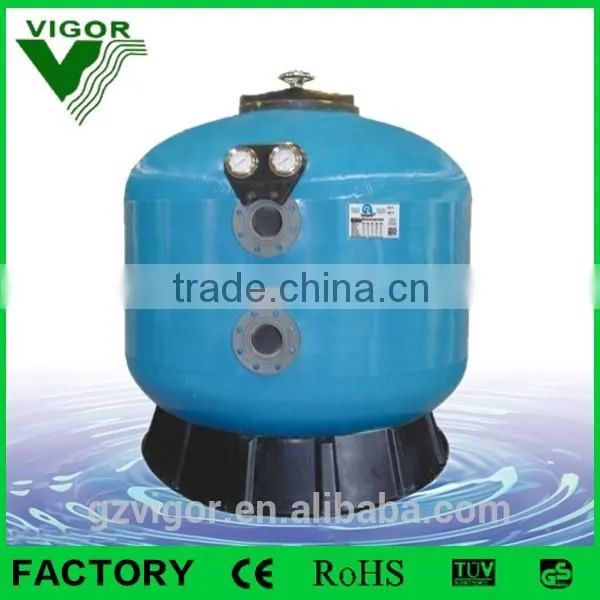

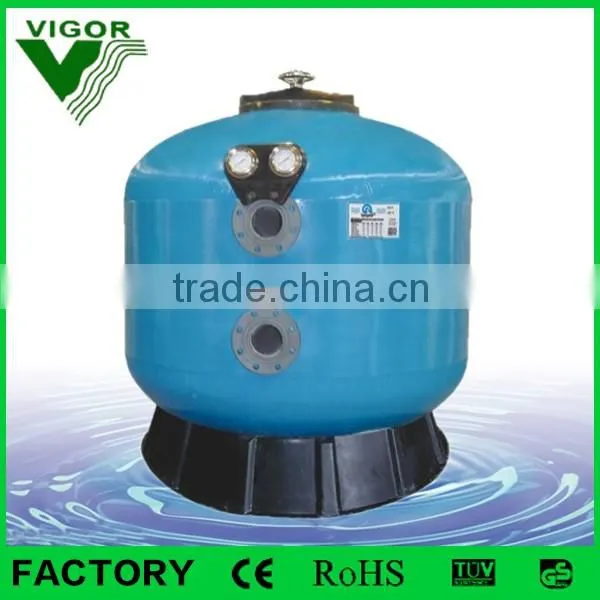

Large Sand Filter for Irrigation Pump Pressure Sand Filter

Large Sand Filter for Irrigation Pump Pressure Sand Filter thumbnail-1
Large Sand Filter for Irrigation Pump Pressure Sand Filter photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
PIKES
Model Number:
NL
Contact Supplier Request Quote Chat Now
Guangzhou Vigor Health Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
huangpu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name PIKES
Model Number NL



Large sand filter for irrigation pump pressure sand filterLarge sand filter for irrigation pump pressure sand filter

Large sand filter for irrigation pump pressure sand filterLarge sand filter for irrigation pump pressure sand filter

1)FEATURES

a.material used are non-corrosive

b.UV-resitance surface allows the filter to work under direct sunlight

c.automatic air release system enables easy release of trapped air during opetation of the filter

d.laterals with fine gaps are able to keep out filter media and dirt particles

e.made of fiberglass

f.sight glass and manhole are available in option



2)TECHNICAL CHARACTERISTEIC

NL SERIES

NL1200,   1.11 sq meter(filter area),   3’’/90mm(valve connections)   55.2 cbm/h(flow rate)   900kg(sand)

NL1400,   1.54 sq meter(filter area),   4’’/110mm(valve connections)   76.8 cbm/h(flow rate)   1350kg(sand)

NL1600,   2.06 sq meter(filter area),   4’’/110mm(valve connections)   102 cbm/h(flow rate)   2300kg(sand)

NL1800,   2.52 sq meter(filter area),   6’’/160mm(valve connections)   124.8 cbm/h(flow rate)   2900kg(sand)

 NL2000,   2.97 sq meter(filter area),  6’’/160mm(valve connections)   147 cbm/h(flow rate)   4000kg(sand)

 NL2300,   4.43 sq meter(filter area),   8’’/200mm(valve connections)   219 cbm/h(flow rate)   6000kg(sand)

 NL2500,   4.89 sq meter(filter area),   8’’/200mm(valve connections)   240 cbm/h(flow rate)   6700kg(sand)



3)FUNCTIONS

Maximum working pressure   250kPa/ 36psi/ 2.5bar OR  400kPa/ 58psi/ 4.0bar

Factory testing pressure          400kPa/58psi/ 4.0bar OR 600kPa/86psi/ 6.0bar

Size of silica sand                     0.5-0.8mm

Maximum filtration velocity       50m3/h/m2

Maximum water temperature  43 degree

 Large sand filter for irrigation pump pressure sand filterLarge sand filter for irrigation pump pressure sand filter





Welcome to contact with me !!!
