Specifications
swimming pool filter1.High density polyethylene
2..6 way valve
3.one-piece clamp with screw lock

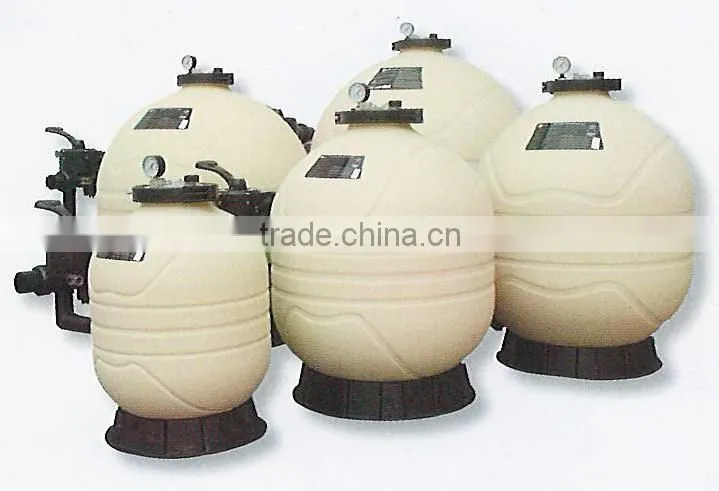

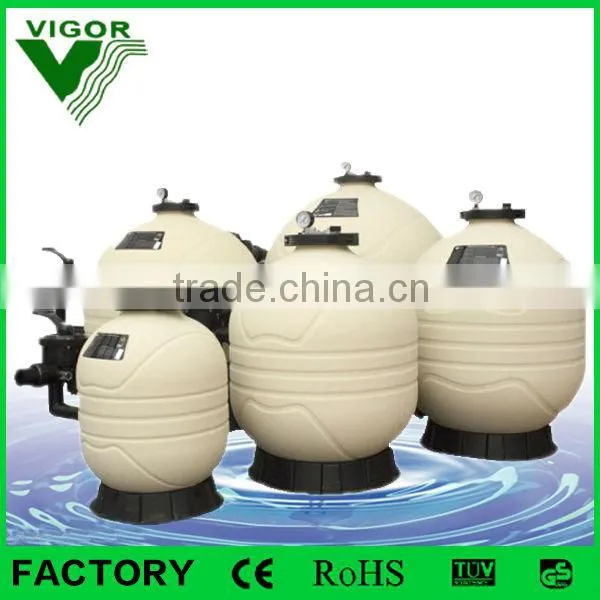

Factory 2014 best selling high quality easily maintenance side swimming pool filter / swimming pool equipment
Description
MFS SERIES SIDE MOUNT SAND FILTER
Our innovative design and advanced technology offer superior filtration performance and clear water.
Mfs Series filters are blown at one-piece with high density polyethylene for its heavy duty performance and reliability.
Features:
- Suggested Installation: Domestic In-ground and above ground pool / hot spa tub
- Max operating pressure 40 psi / 2.8 bar
- Max temperature of 50oc (122 oF)
- Universal standard of union connection provided
- ABS lateral provided
- Suggested size of media : 0.5-0.8mm
Product Focus:
- Unique one-piece clamp with screw-type lock designed to simplify installation and allow tool-free servicing
- Equipped with multiport valve with 6-way functions
- Easy-to-read pressure gauge for easy inspection
Technical characteristics
Model No |
Filter Area(m ² ) |
Valve Connections |
Max Flow Rate |
Sand(kg) |
MFS17 |
0.14 |
1.5inch 55mm |
125 lpm 7.5m ³ /h |
40 |
MFS20 |
0.20 |
1.5inch 55mm |
175 lpm 10.5m ³ /h |
70 |
MFS24 |
0.28 |
1.5inch 55mm |
238 lpm 14.3m ³ /h |
125 |
MFS27A |
0.36 |
1.5inch 55mm |
325 lpm 19.5m ³ /h |
185 |
MFS27 |
0.36 |
2inch 63mm |
338 lpm 20.3m ³ /h |
185 |
MFS31A |
0.47 |
1.5inch 55mm |
373 lpm 22.4m ³ /h |
320 |
MFS31 |
0.47 |
2inch 63mm |
412 lpm 24.7m ³ /h |
320 |
MFS35 |
0.61 |
2inch 63mm |
515 lpm 30.9m ³ /h |
430 |
Detail Pictures:
Description
MFV SERIES TOP MOUNT SAND FILTER
Our innovative design and advanced technology offer superior filtration performance and clear water.
MFV Series filters are blown at one-piece with high density polyethylene for its heavy duty performance and reliability.
Features:
- Suggested Installation: Domestic In-ground and above ground pool / hot spa tub
- Max operating pressure 40 psi / 2.8 bar
- Max temperature of 50oc (122 oF)
- Universal standard of union connection provided
- ABS lateral provided
- Suggested size of media : 0.5-0.8mm
Product Focus:
- Unique one-piece clamp with screw-type lock designed to simplify installation and allow tool-free servicing.
- Equipped with multiport valve with 6-way functions
- Easy-to-read pressure gauge for easy inspection
Technical characteristics
Model No |
Filter Area(m ² ) |
Valve Connections |
Max Flow Rate |
Sand(kg) |
MFV17 |
0.14 |
1.5inch 55mm |
125 lpm 7.5m ³ /h |
40 |
MFV20 |
0.20 |
1.5inch 55mm |
175 lpm 10.5m ³ /h |
70 |
MFV24 |
0.28 |
1.5inch 55mm |
238 lpm 14.3m ³ /h |
125 |
MFV27A |
0.36 |
1.5inch 55mm |
325 lpm 19.5m ³ /h |
185 |
MFV27 |
0.36 |
2inch 63mm |
338 lpm 20.3m ³ /h |
185 |
MFV31A |
0.47 |
1.5inch 55mm |
373 lpm 22.4m ³ /h |
320 |
MFV31 |
0.47 |
2inch 63mm |
412 lpm 24.7m ³ /h |
320 |
MFV35 |
0.61 |
2inch 63mm |
515 lpm 30.9m ³ /h |
430 |

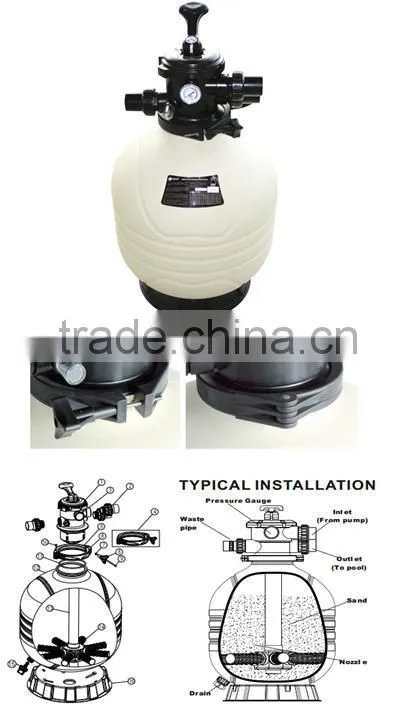

Detail Pictures:
Instruction of install our pool filter :
INSTALLATION
Installation had been made simple, the only tools
needed is a screw driver and pipe sealant for plastic.
Locate the Filter on hard, level surface, preferably in a
dry, shaded, and well-ventilated area.
1/ Place the empty tank in position.
2/ Fill the tank with
water to the level that covers the laterals
about 1/3 of the tank is recommended. This will avoid
damages to the laterals by the force of the
sand when pouring into the filter.

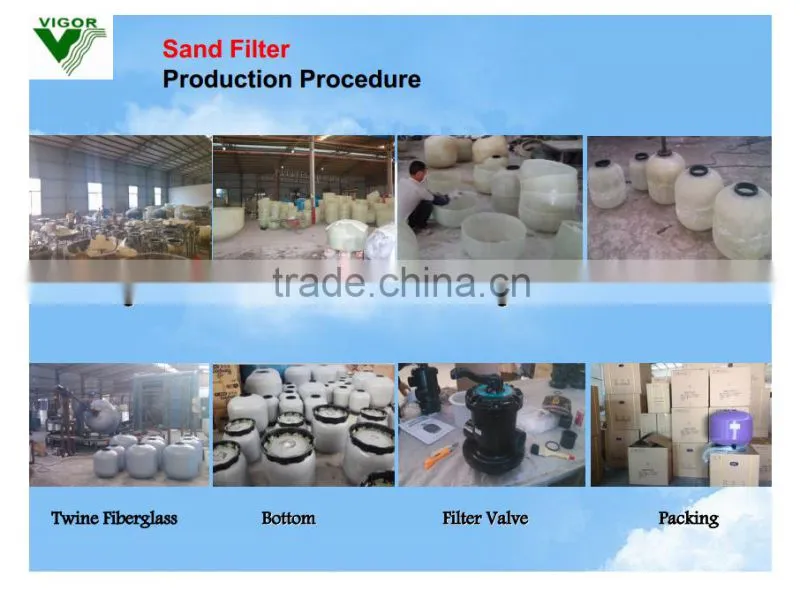

Manufacturing factory & Production Process of our sand filter
We have a experience and expertise together with our devoted staffs.
Our goal is " Quality is our culture and we will try best to provide the unsurpassed customer service"
Our company and office and join the exhibition
