Description

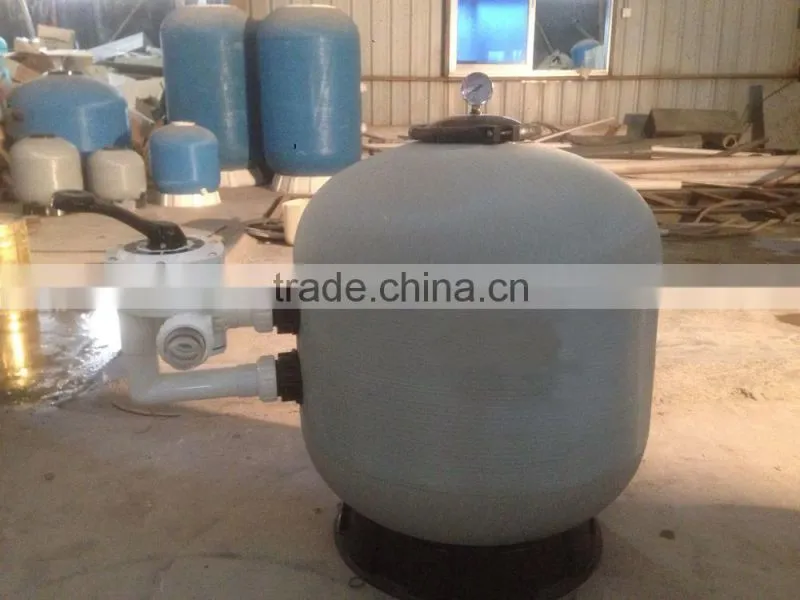

PS SERIES  600mm-1200mm Side-Mount Sand Filter/Industrial Sand Filter

Bobbin-wound fiberglass reinforced tank is still the most popular standard in the industry after all.

With UV-resistant surface finish,

it is able to operate under prolong sunlight for years of reliability.

 "P" Series (V350-V1400) filters are equipped with a six-position,

1.5", 2", & 2.5" multiport valve and ABS laterals.

Features:

• Suggested Installation: Domestic In-ground and above ground pool / hot spa tub
• Max operating pressure 36 psi / 2.5 bar
• Max temperature of 43°C (109°F) FEATURES
• Universal standard of union connection provided
• Suggested size of media : 0.5-0.8mm

 Technical characteristics

 Detail Picture:

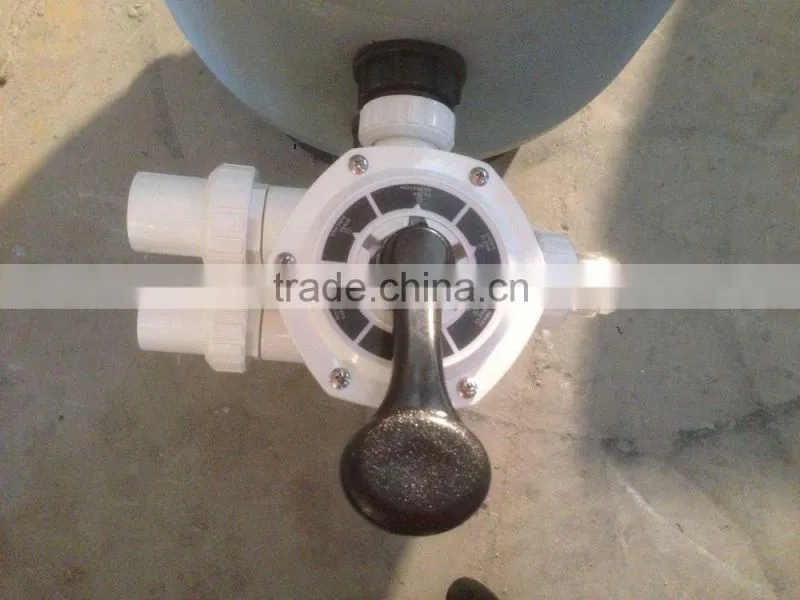

Detail of  the sand filter valve

Description

SS SERIES TOP MOUNT SAND FILTER

Voluble molding of fiber glass reinforced plastics,corrosion resistant,

good abrasion resistance ,deforming - proof.Uniquely designed distribution make a stable

And even water flow to improve drainage system.easy to install ,maintain .Outlet turbiditv:<2FTU

Features:

• Suggested Installation: Domestic In-ground and above ground pool / hot spa tub
• Max operating pressure 36 psi / 2.5 bar
• Max temperature of 43 ° C (109 ° F)
• Universal standard of union connection provided
• Suggested size of media : 0.5-0.8mm

 Technical characteristics

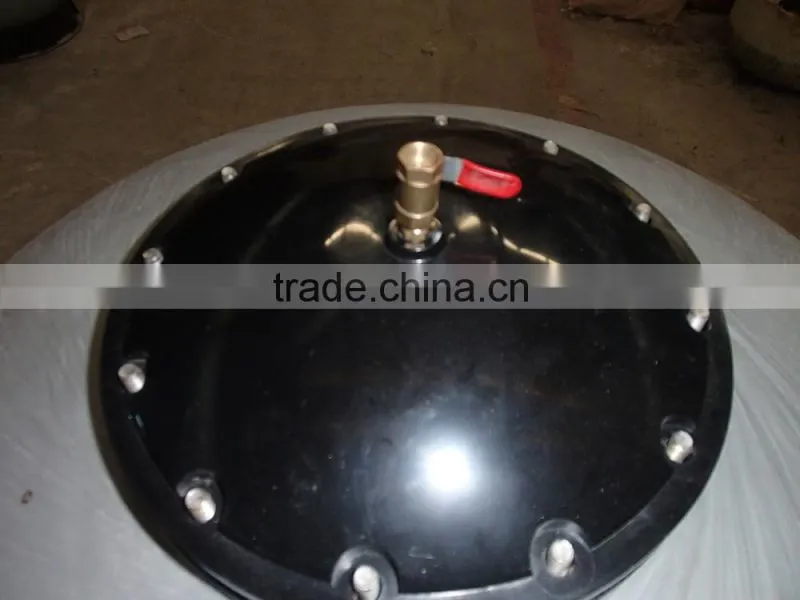

Detail Pictures:

Sand filter Color customised

 if your quantity is up to 150-200 pcs,  Color customised is acceptance.

we have multi-color for your to choose

  More series of our sand filter

Instruction of install our pool filter :

INSTALLATION

Installation had been made simple, the only tools

needed is a screwdriver and pipe sealant for plastic.

Locate the Filter on hard, level surface, preferably in a

dry, shaded, and well-ventilated area.

1/ Place the empty tank in position.

2/ Fill the tank with

water to the level that covers the laterals

about 1/3 of the tank is recommended. This will avoid

damages to the laterals by the force of the

sand when pouring into the filter.

Manufacturing factory & Production Process of our sand filter

 We have a experience and expertise together with our devoted staffs.

Our goal is " Quality is our culture and we will try best to provide the unsurpassed customer service"

 Our company and office and join the exhibition

we, vigor company have been attend different exibition and our pool,spa and sauna product is

hot sale overseas and  gain the trust from our customer.
