HOT SALE wireless access point board
- 200000 Piece / Pieces per Month
- Shunde
- T/T
- Cisco Fiber Switches N9K-C93180YC-FX
- SIERRA AR7586
- Quectel LC29D GPS Beidou Inertial Guidance Module
- telit 4G module LE910C4-NF
- Acrel 4G LORA communication AWT200-1E4S1-4G/LR Intelligent data communication gateway, supports 4-way serial port
- Acrel Wireless communication terminal Supports centralized collection of up to 10,000 points AWT200-1E8SL
Product Details
Place of Origin: | Guangdong, China | Brand Name: | LIHON | Model Number: | LH-6008 |
Product Description
HOT SALE wireless access point board
Wireless access point
Wall mount wireless Access Point(Support unified management if you use our AC manager)
WPL-6003 support AC manager , AP Switch , USB power supply , telephone port;
WPL-6005 support AC manager , USB power supply.
WPL-6008 support AC manager , AP Switch , USB power supply , telephone port , Network port. .
These features can be selected according to your practicality you can also customize wiredrawing panel, champagne panel, so affordable, to meet consumer demand.
Function:
1.Wireless access points from the wired network signal into a Wi-Fi Signal,speed up to 150M/S,convenient for Laptop,Ipad,Table PC,Mobile phones and other wireless terminals.
2. Have router function,can replace the router
3. Offer RJ11,RJ45 keystone jack can replace the telephone socket, computer socket and network socket.
4.Provide USB power supply, can be used as tablet PC and mobile phone charger
5.Wall inside mounted,the singal cables and power cables will not exposed outside
6.Indicator shows the working status
7. Enhanced Performance
Specification:
Standard | IEEE802.11n,IEEE802.11g,IEEE802.11b |
Operating Frequency | 2.4GHz-2.483GHz |
Modulation mode | OFDM:BPSK-6/9Mbps,QPSK-12/18Mbps,16-QAM-24Mbps,64-QAM-48/54Mbps |
DSSS:DBPSK-1Mbps,DQPSK-2Mbps,CCK-5.5/11Mbps | |
MIMO-OFDM:MCS 0-15 | |
Max Wireless Speed | 150Mbps |
Network port | LAN:1*10/100Mbps |
WAN:1*10/100Mbps | |
Wireless Parameters | Channel:1-13 Frequency bandwidth:20 or 20/40MHz |
Wireless mode:11b/g/n | |
Wireless Security | "WPA-PSK","WPA2-PSK","WEP" |
Power adjustment | Support |
Manager function | WEB Management |
LED Indication | WLAN wireless status indicator,SYS system indicator,LAN cable interface indicator |
Push button switch | 1* power on/off |
1* Reset/Restore | |
size(mm) | 60X60X36(mm) |
Power | Input:100-240V~50/60Hz 0.2A |
Max power consumption | lower than 3W |
Reset/restore factory settings | Support |
Working temperature | -10ºC ~ 45ºC |
Storage temperature | -40ºC ~ 70ºC |
Working Humidity | 10%-90%RH(No condensation) |
Storage temperature | 10%-90%RH(No condensation) |
Product Overview
1. In-wall design, beautiful and easy.
We use the standard of 86 type bottom box to installation design . No need to reinvent the wall ,just transform installation directly in the place of the original socket.Not only keeps the original appearance of the wall, but also has good anti-theft function to make sure the safety of the device in public spaces.A room has a AP can cover the Signal perfectly .And easy to maintain.
2. Built-in omni-directional antenna, The power of wireless transmission up to 150MW, SSID support Chinese, you can play 5-7 video files in a same time easily.
3. Have gateway mode, AP mode, bridge connection mode,WDS mode ( Product model for state to obtain default gateway automatically, that is the most people's choice , plug and play, no need to set ).
- 4. Multi-function:
AC Management, AP switch, USB charging 5v / 1A 2.1A, telephone port, single and double network port etc.

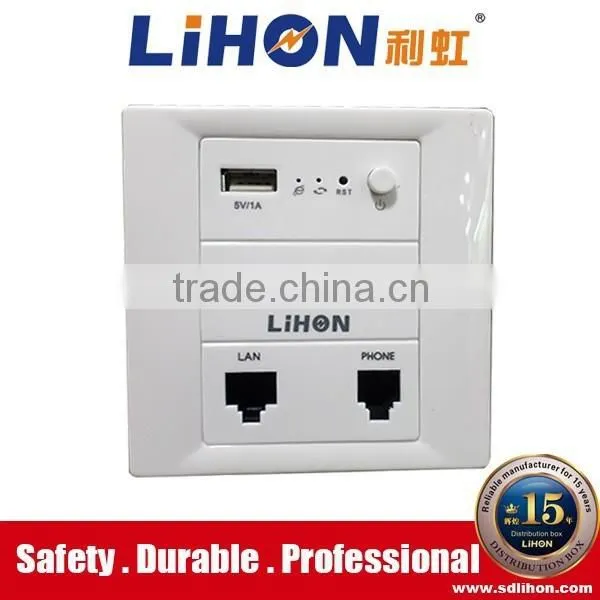

5. Variety of panel selection:
Single LAN port, LAN+USB, LAN+USB+Phone, double LAN+USB+Phone.
6. Support 220 AC, POE switch power supply of non-standard wide-DC12V-60V, and eliminates the re-wiring and power adapter trouble .
Successful case:
Enjoy the wireless time!
