Home > Products > Series TYF Phosphate ester fluid filtering machine > Series TYF Fire-resistant Oil Cleaning Purifier/ Phosphate Ester Fire-resistant Oil Purifier

Series TYF Fire-resistant Oil Cleaning Purifier/ Phosphate Ester Fire-resistant Oil Purifier

FOB Price

US$ 1,000 - 60,000 / Set

1 Set(Min. Order)

Port Chongqing China
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Flow	1200L/h
Working Pressure	≤0.4mpa	Place of Origin	Chongqing, China
Brand Name	Top	Model Number	TYF
Usage	Other, Phosphate ester fire-resistant oil	Voltage	380v
Power(W)	42KW	Dimension(LWH)	1500mm1050mm1600mm
Weight	380kg	Certification	ISO, CE
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Series TYF Fire-resistant oil Cleaning purifier/ Phosphate Ester fire-resistant oil purifier

Application:

It is specially designed for regeneration and cleaning of the fire-resistant oil and EH phosphate ester fire-resistant oil which widely used in governing system of the Large and medium-sized thermal power generating units .

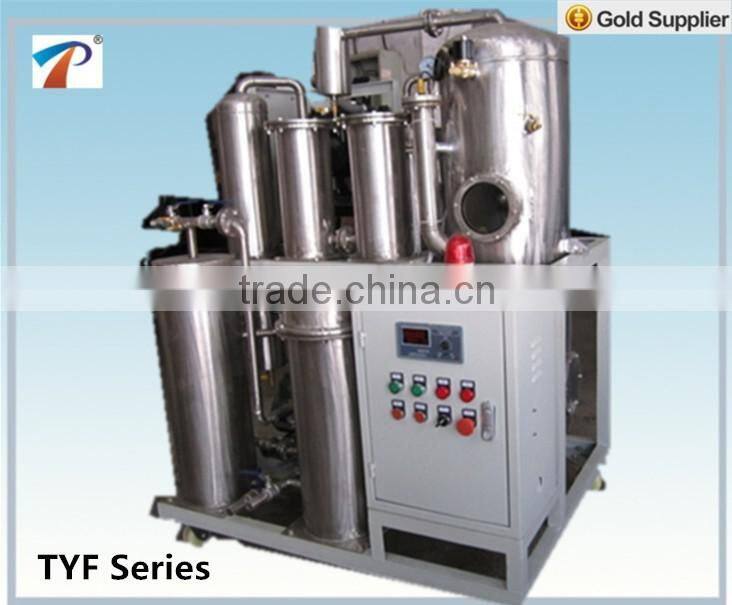

Detailed Images

Features:

1.It can be moved easily for its lightness
2.The adaptability of the materials and phosphate is good. No leakage and corrosion
3.Controlling automatically and operating at a lower temperature.Cleaning at a pure physical environment.No secondary pollution.
4. It can not only remove free water and gas in the oil efficiently, but also remove 100% free water and 90% dissolved water and gas deeply.

5. Selection of newly stainless steel materials and special filter materials, progressive filter, to remove the large number of impurities in the oil to achieve precision filtration.

6. This machine is made by the 304 anti-acid and anti-dissolution stainless steel and the filter in made by the materials that couldn’t dissolve with fire-resistant oil. It is beautiful,light,easy to operate with a lower working noise and a long service life.

7. The device equipped with automatic infrared liquid level control system, automatic pressure protection system to ensure safe and reliable operation of high-performance equipment.

8. Filtering the oil online without nobody on duty. Lights indicates the operation of the machine.

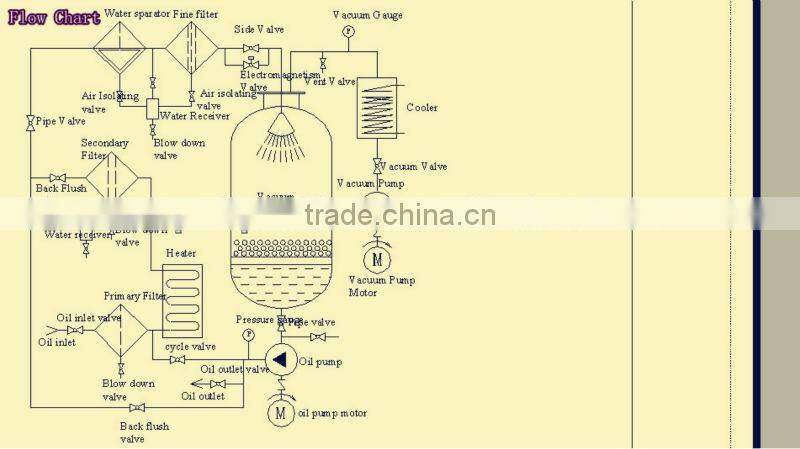

Flow Chart:

Working process:

When it starts working, the used oil will be poured into the heater to heat under the vacuum pressure, then the heated oil enter into the primary filter which will eliminate the big impurities, then the oil enter into the vacuum separator, the oil will flow the special radiation device, which make the unit/volume oil to produce a large surface area, lets the pollution oil exposure in the low humidity atmosphere, thus the water, air and gas can be eliminated

The treated vapor and gas form the gaseous mixture becomes the liquid through the water tank and the chiller condensation, then the liquid enters water receiver together, the vacuum extracts the surplus gas.

The oil which is drained away water flow into precision strainer where can exhaust particulates (oil purification). According the quantity of the water content, a whole purification needs many times circulation to drain away the water.

Technical parameter:

Item	Unit	TYF-10	TYF-20	TYF-30	TYF-50	TYF-100	TYF-150	TYF-200	TYF-300
Flow rate	L/h	600	1200	1800	3000	6000	9000	12000	18000
Vacuum degree	Mpa	-0.06 ~- 0.095
Working pressure	Mpa	≤0.4
Temperature degree	℃	0~100
Power supply		3Phase, 380V, 50Hz(or as needed)
Working noise	dB(A)	≤75	≤75	≤75	≤78	≤78	≤78	≤80	≤82
Electric heating power	KW	36	40	45	72	80	90	120	135
Total electric power	KW	38	42	47	75	87	101	135	147
Inlet (outlet) caliber	mm	25	25	25	32	42	50	50	60
Size	mm	1500x1000x 1600	1500x1050x 1600	1500x1050x1650	1600x1150x1700	1750x1150x1750	1900x1600x1950	1950x1600x1950	2100x1600x2000
Weight	Kg	350	380	400	450	550	650	700	750

Oil data after treatment:

Moisture (water content)	≤ 50 PPM
Gas Content	≤0.01%
Impurities Degree (Filtration precision)	≤1 micron
Demulsification	New oil≤15min, running oil≤30min
Cleanliness	≤NAS 1638 Grade 6

Main Products List

Our main oil purifying and recycling machines:

Series ZY Single-stage vacuum transformer oil purifier
Series ZYD Double high vacuum transformer oil purifier
Series ZYD-I Double vacuum transformer oil purification and regeneration machine
Series ZYB Multi-function insulating oil regeneration machine
Series TY Turbine oil purification apparatus
Series TYA Lubricating oil/ hydraulic oil purification unit
Series TYB Portable light fuel oil purification machine
Series TYD Vacuum lube oil/hydraulic oil dehydrator
Series TYF Phosphate ester fire-resistance oil purifier
Series PL Plate pressure oil purifier
Series JL Portable oil filtration machine
Series COP Cooking oil purification machine
Series CYS Centrifugal oil purification machine
Series BAM Press filtration system
Series HFD/VFD filter press machine
Series ZKCC Vacuum pumping system

Series EOS Waste Oil Distillation Plant

Our major testers/ analyzers:

1.Transformer oil breakdown voltage tester ( BDV test kit) IIJ-II / DYT Series
2. Acidity tester ACD-3000I
3. Karl Fischer water content tester TP-6A / TP-2100
4. Online moisture content tester(TPEE)
5. Fully automatic interface/surface tension analyzer IT-800
6. Gas-chromatography transformer oil gas analyzer DGA2013-1
7. Cloud point and pour point tester PT-2000
8. Kinematic viscosity tester VST-2000 / TPV-8
9. Flash point tester (open cup) TPO-3000
10. Flash point tester (close cup) TPC-3000
11. Transformer comprehensive tester (CT/PT tester) TPVA-404 / TPVA-402
12. Transformer turn ratio tester HYG-II / TPOM-901
13. Total base number analyzer(TBN tester) TBN-2030

Our Service

Trustable technical and after sale service
1. Long-term warranty of 2 years.
2. Provide best necessary spare parts at low price (some for free).
3. Provide timely reply and technical support within 24 hours.
4. OEM is available for TOP Products.
5. Protect your sales area, ideas of design and all your private information.

Packing & Delivery

Our company is specialized in all kind of oil purifier and oil testers in high quality, please visit our website for more detailed /

If any of our products interests you , please contact ue immediatly. We will do our best to provide the survice you need.

We waiting for you visiting!
