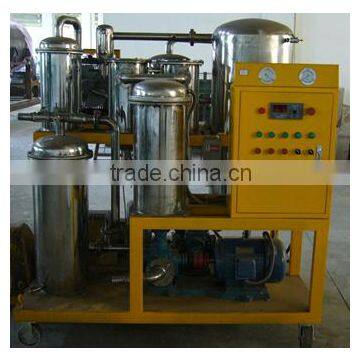

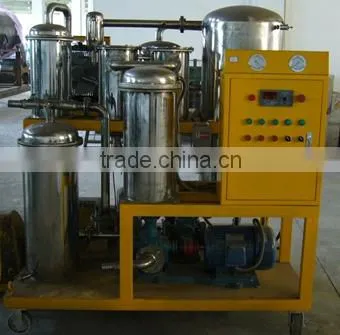

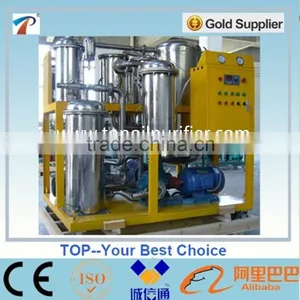

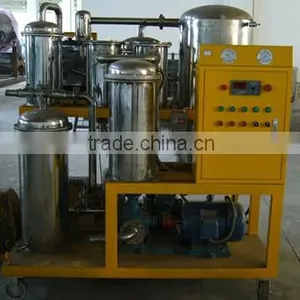

TYF phosphate fire-resistant oil filtering system/High vacuum phosphate ester fire-resistant oil cleaning machine
Application:
Series TYF is latest model of vacuum oil purifier designed for purifying the unqualified phosphate ester fireresistant oil, this machine can treat and regenerate the degenerative fire-resistant oil, removing acid, pigment, gas, water and particles. This machine body uses the special metal materials which are compatible with fire-resistant oil, combined with technologies of vacuum dewatering, multi-stage filtration system and new adsorbent to ensure treated oil achieve new fire-resistant oil properties. Series TYF is the necessary purifying equipment for the sectors which use fire-resistant oil, it can be online working and oil-filling.
Features:
Use of special metal materials which is compatible with fireresistant oil, combined with technologies of vacuum dewatering, multi-stage filtration system and new adsorbent
Stainless steel machine body, pipes and filtering components, reliable, anti-corrosion, durable.
DuplexStereo film evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively remove water, gas, particles and volatile matter
Advanced medium cooling system
High quality filtering components, large capacity for holding particles, anti-corrosion, good mechanical performance, long lifetime.
6. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
Technical parameter:
Index name |
Unit |
TYF-10 |
TYF-20 |
TYF-30 |
TYF-50 |
TYF-100 |
|
Flow rate |
L/h |
600 |
1200 |
1800 |
3000 |
6000 |
|
Working vacuum |
MPa |
-0.06~-0.095 |
|||||
Working pressure |
MPa |
≤0.3 |
|||||
Power supply |
|
380V 50HZ(As per user’s option) |
|||||
Working noise |
dB(A) |
≤65~80 |
|||||
Temperature range |
|
40~60 |
|||||
Heating power |
Kw |
9 |
10 |
16 |
19 |
30 |
|
Total power |
Kw |
12.5 |
14 |
21 |
24.5 |
35.5 |
|
Dimension |
L |
mm |
1500 |
1600 |
1650 |
1700 |
1750 |
W |
mm |
1000 |
1200 |
1250 |
1300 |
1400 |
|
H |
mm |
1700 |
1700 |
1800 |
1850 |
1900 |
|
Guarantee value:
Water content |
ppm |
≤5 |
Gas content |
% |
≤0.1% |
Acid value |
mKOH/g |
≤0.05 |
Resistance value |
Ω |
≤5.0×109Ω |
Cleanness |
|
≤NAS 6 grade |

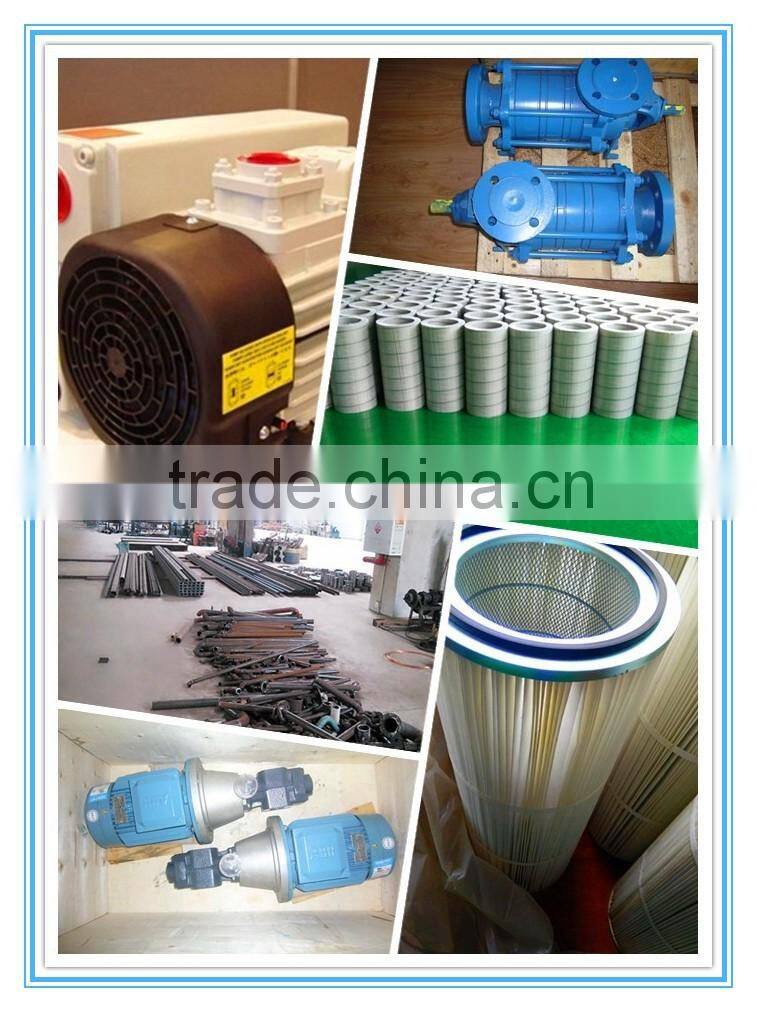

Raw materials on stock:
Various optional accessories:
Reliable packaging & Prompt shipment:
Considerate services:
- Reply promptly in 24 hours with fluent English and professional knowledge
- Provide best necessary spare parts at low price (some for free)
- If there is something wrong with the equipment,we will give a response and provide the solutions in 24h
- Provide long term technical support and innovation upgrade guidance
- OEM is available for TOP products
- Protect sales area, ideas of design and all your private information

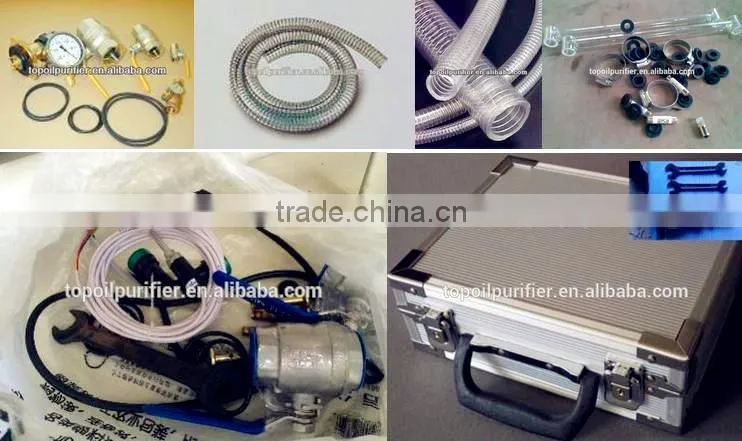

Some of the spare parts:
Chongqing TOP Oil Purifier Manufacture Co., Ltd is a professional leading manufacturer of oil purifiers and oil testers. We have tremendous strength in the fields of research, development and manufacturing with professional mass-production ability, perfect sales network, excellent after-sales service as well as a perfect image we earned in the competitive market.

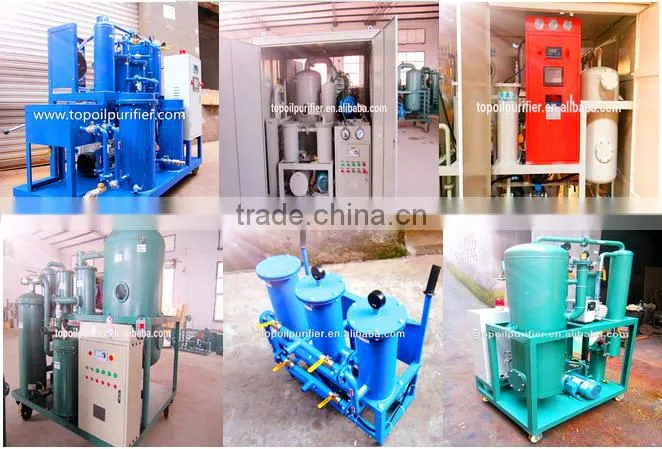

Our products:

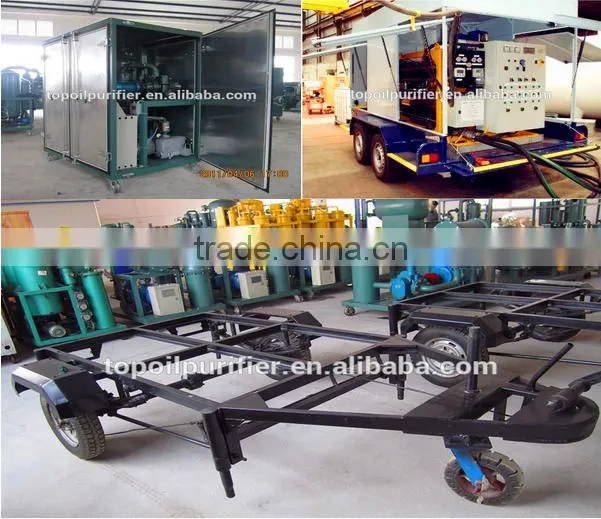

Oil purifiers in factory
Testers in laboratory

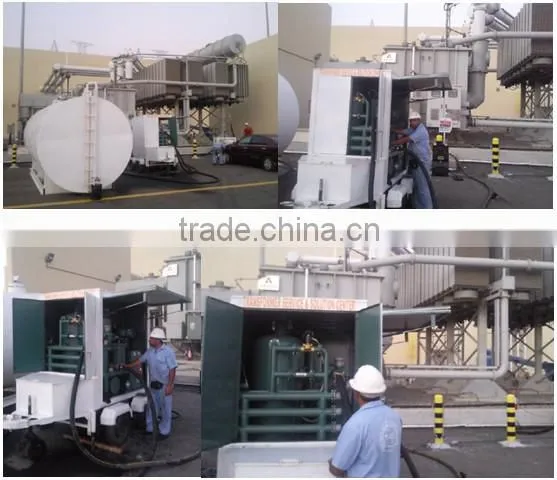

Our customers:
Contact info:
Welcome your inquiry at any time, and if you prefer live chat, my Skype and WhatsApp are 24 hours online. So just contact me without hesitation, for your service is my pleasure!
